Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

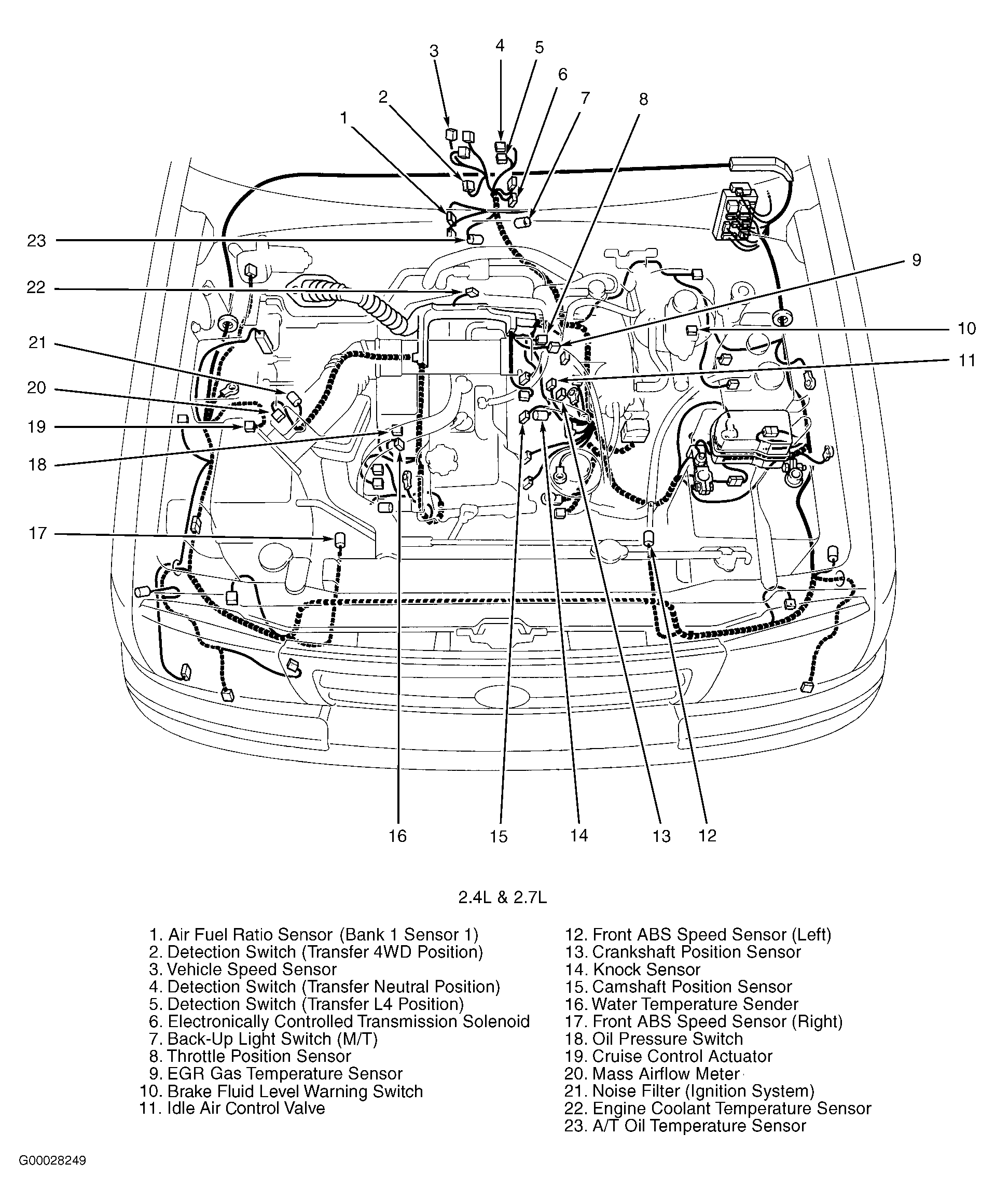

Fig 1: Engine Compartment (2.4L & 2.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

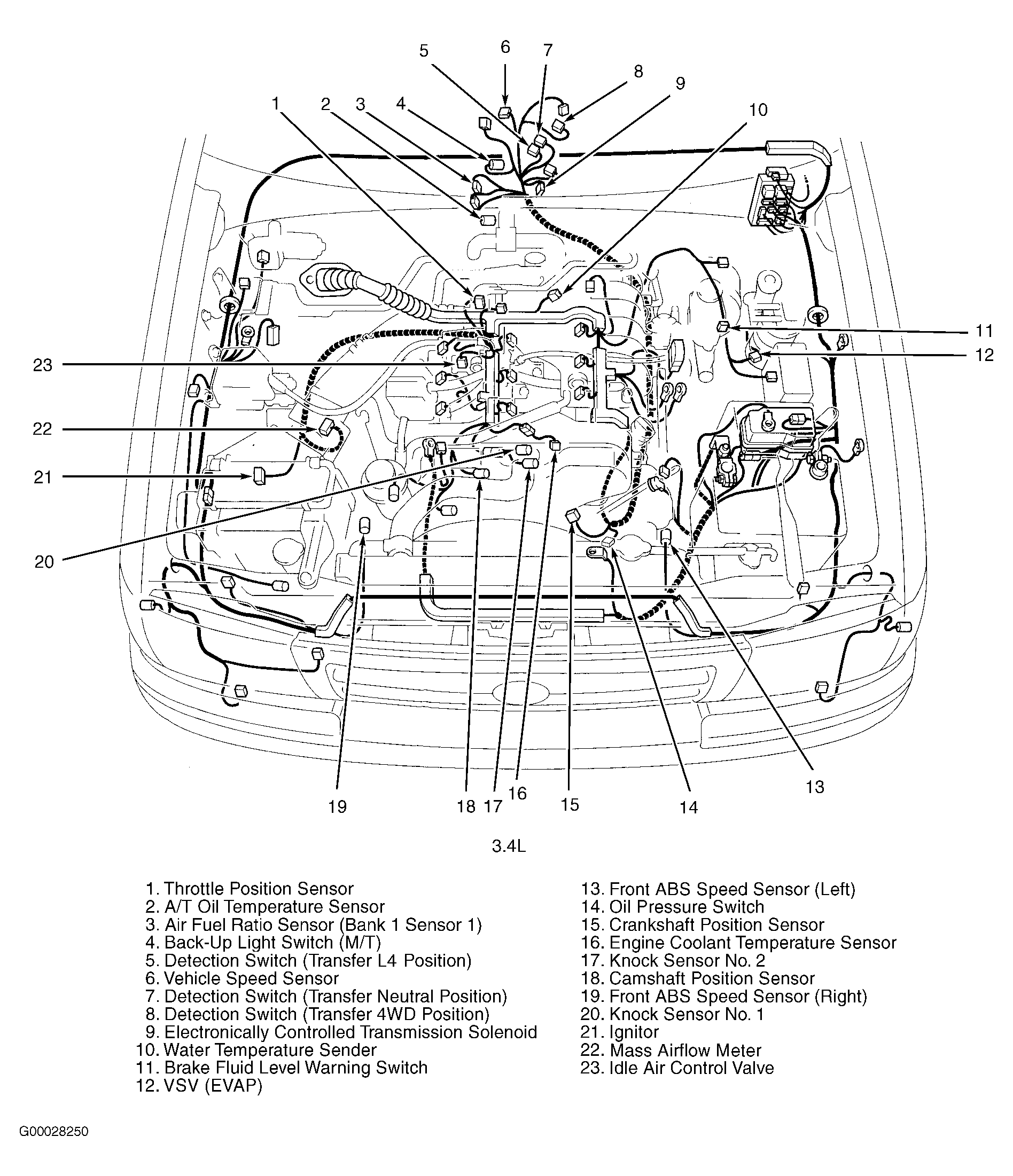

Fig 2: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

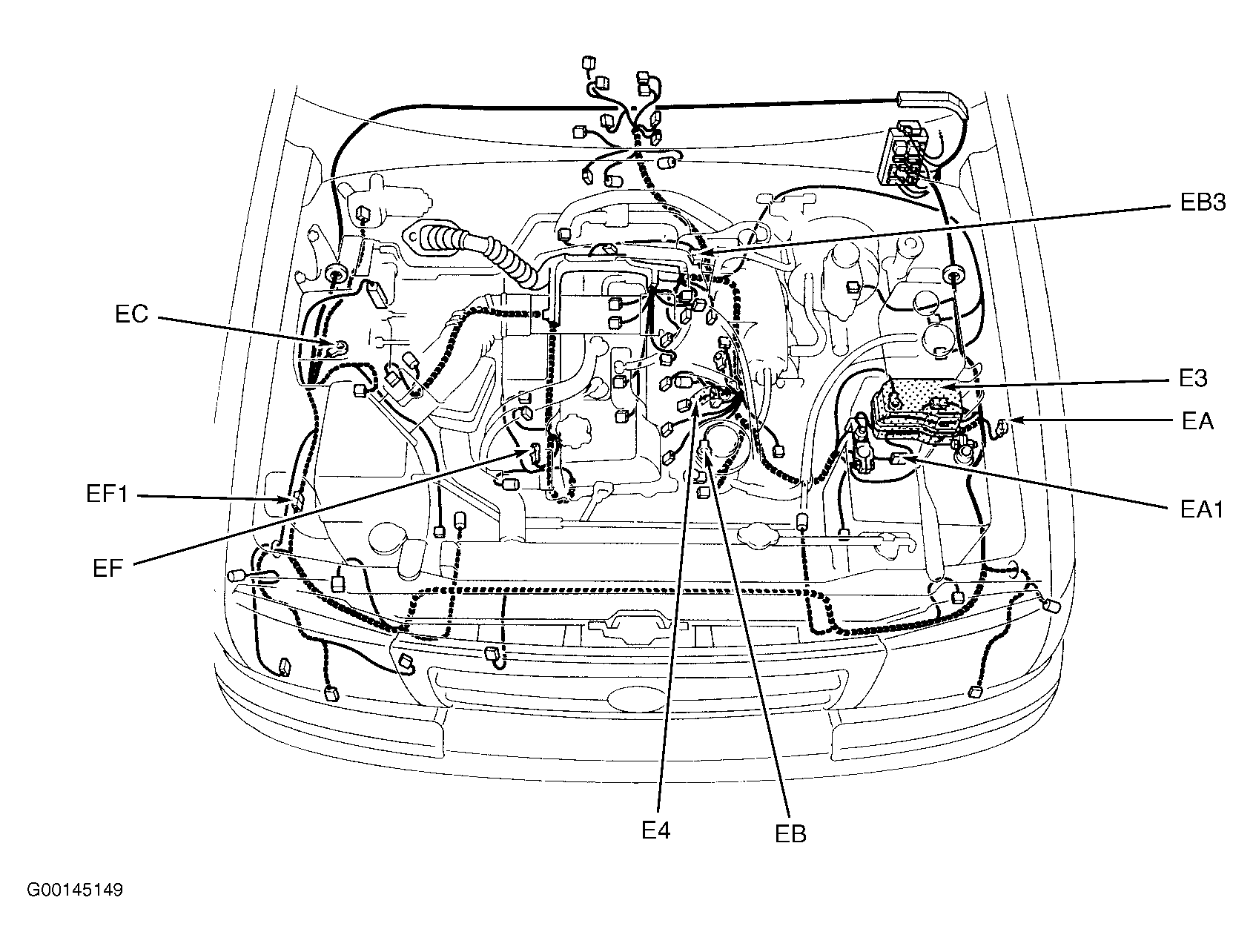

Fig 5: Engine Compartment (2.4L & 2.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

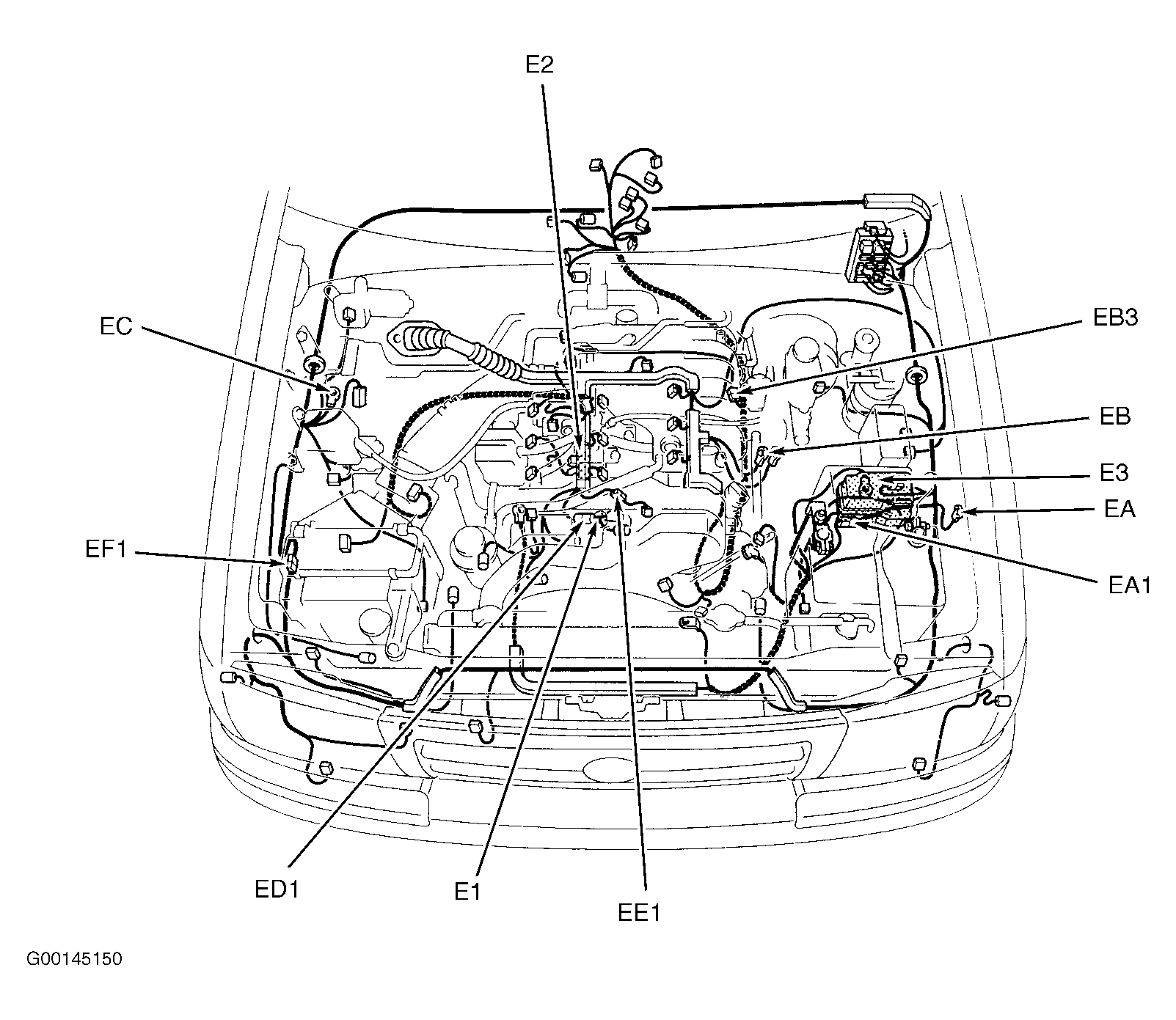

Fig 6: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
