Problem Symptoms Table

Use Fig 1 to help you find the cause of the problem. The numbers indicate the likely hood of the cause of the problem. Check each part in the order shown. Repair or replace as necessary.

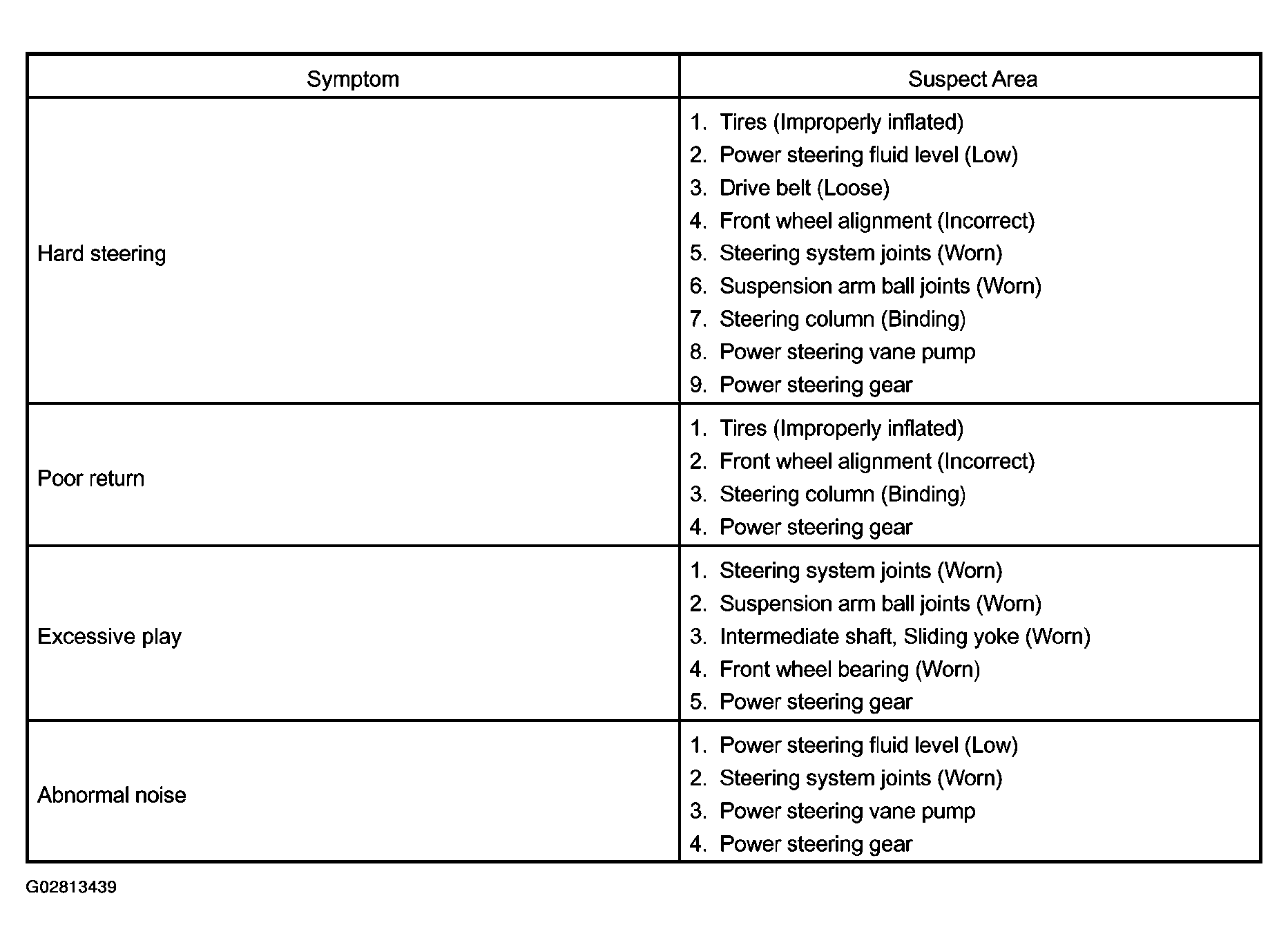

Fig 1: Problem Symptoms Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
