Circuit Description

The back door ECU monitors the condition of the power window motor to detect the position of the door glass by using pulse signals output from the 2 pulse sensors in the power window motor.

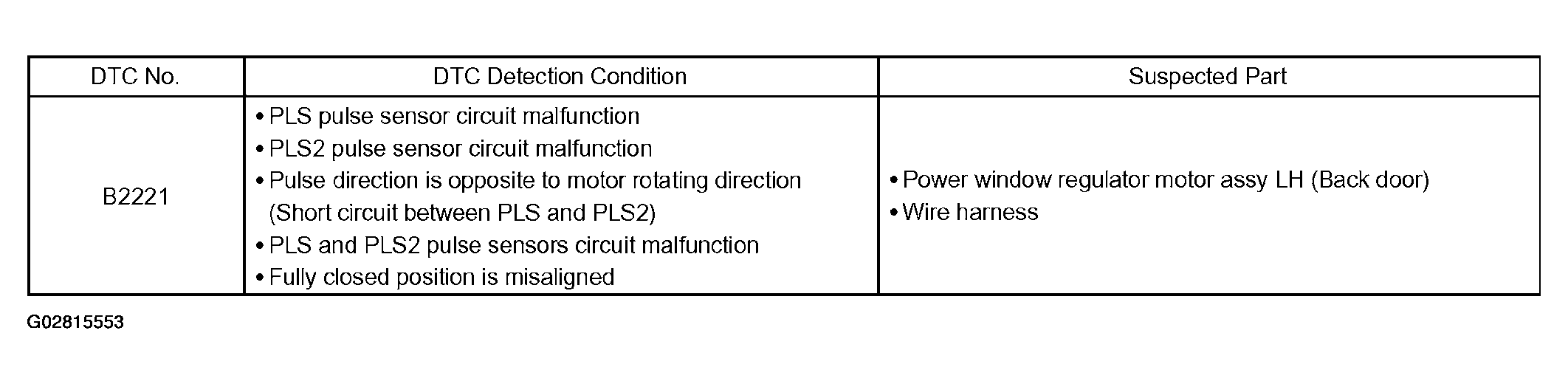

Fig 1: DTC B2221 Condition & Suspected Parts Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
