Manual Up/Down Function Does Not Operate: Wiring Diagram

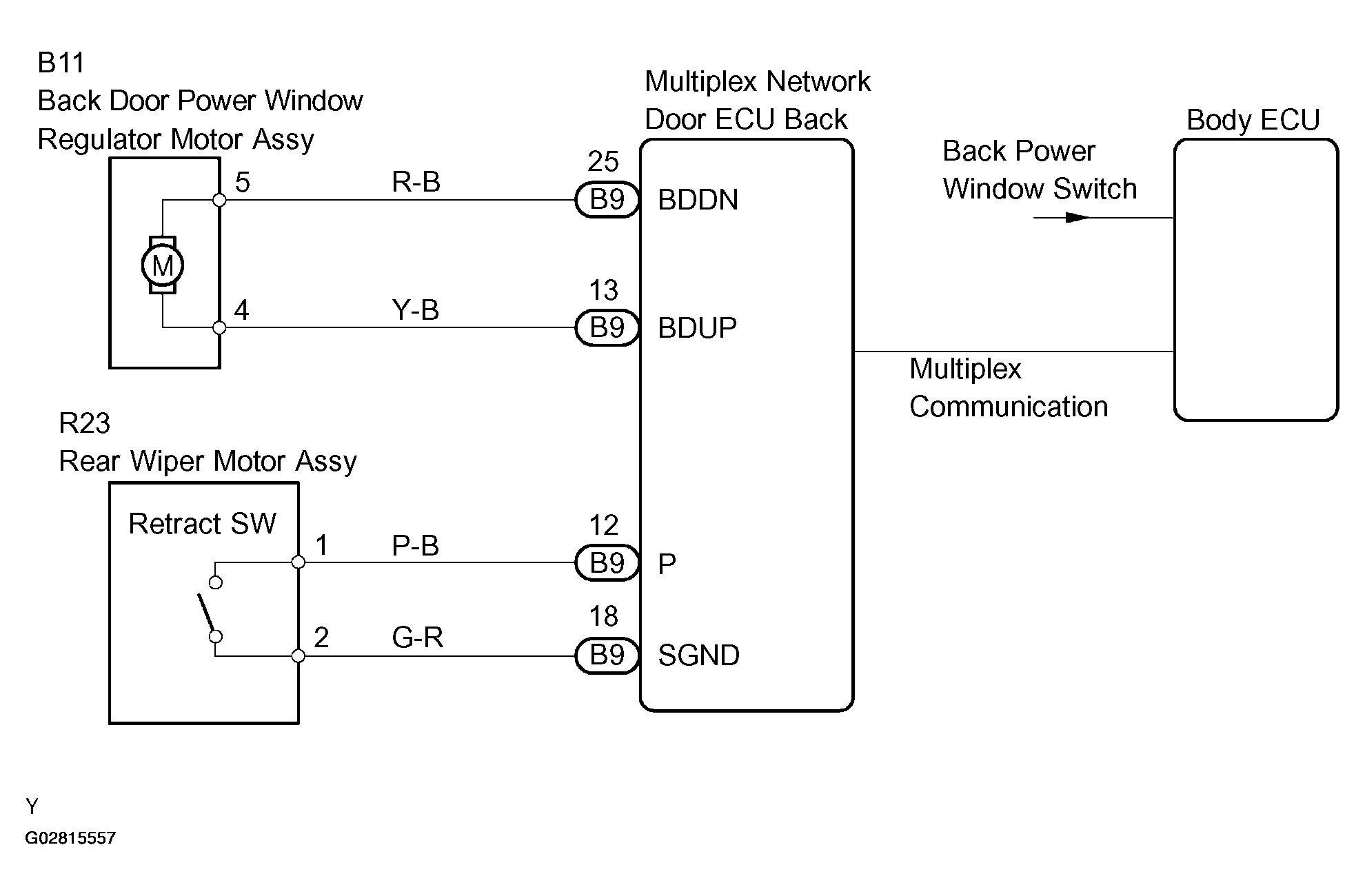

Fig 1: Back Door Power Window Regulator Motor Circuit
G02815557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
