Auto Up/Down Function Does Not Operate: Wiring Diagram

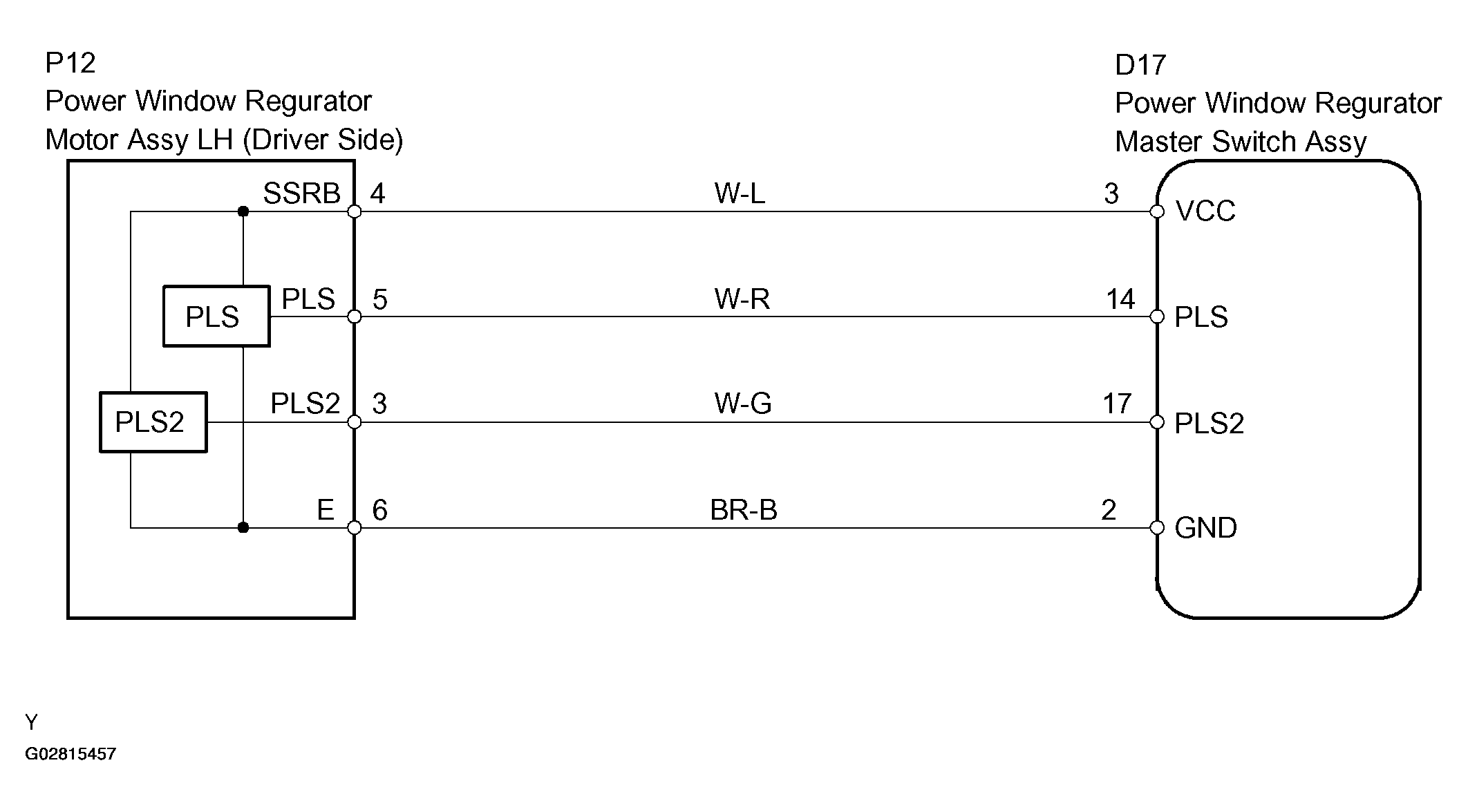

Fig 1: Power Window Regulator Motor Circuit
G02815457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
