Circuit Description: Notes

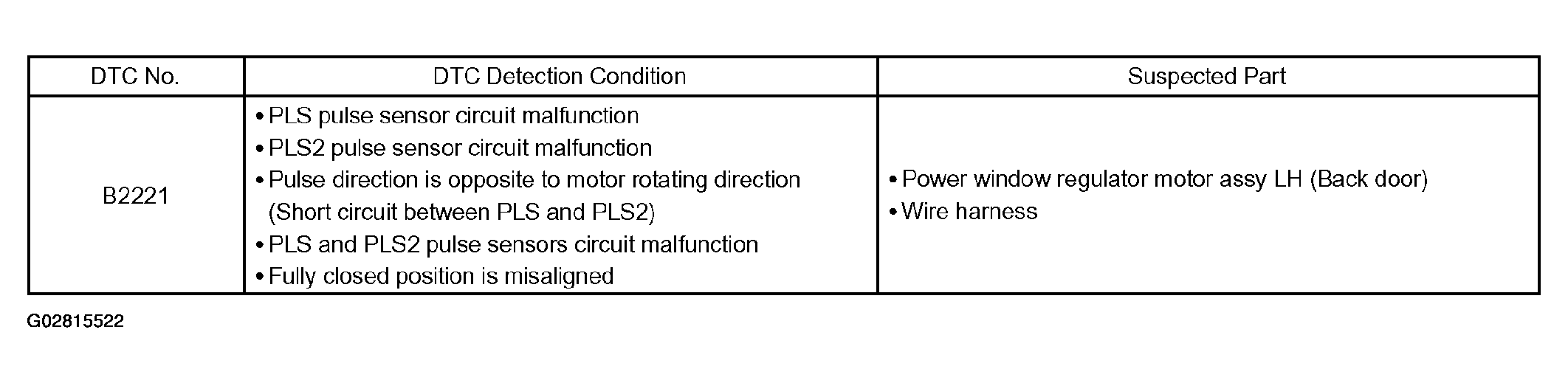

The back door ECU monitors the condition of the power window motor to detect the position of the door glass by using pulse signals output from the 2 pulse sensors in the power window motor.
