Power Window Control System - Diagnostics: Location

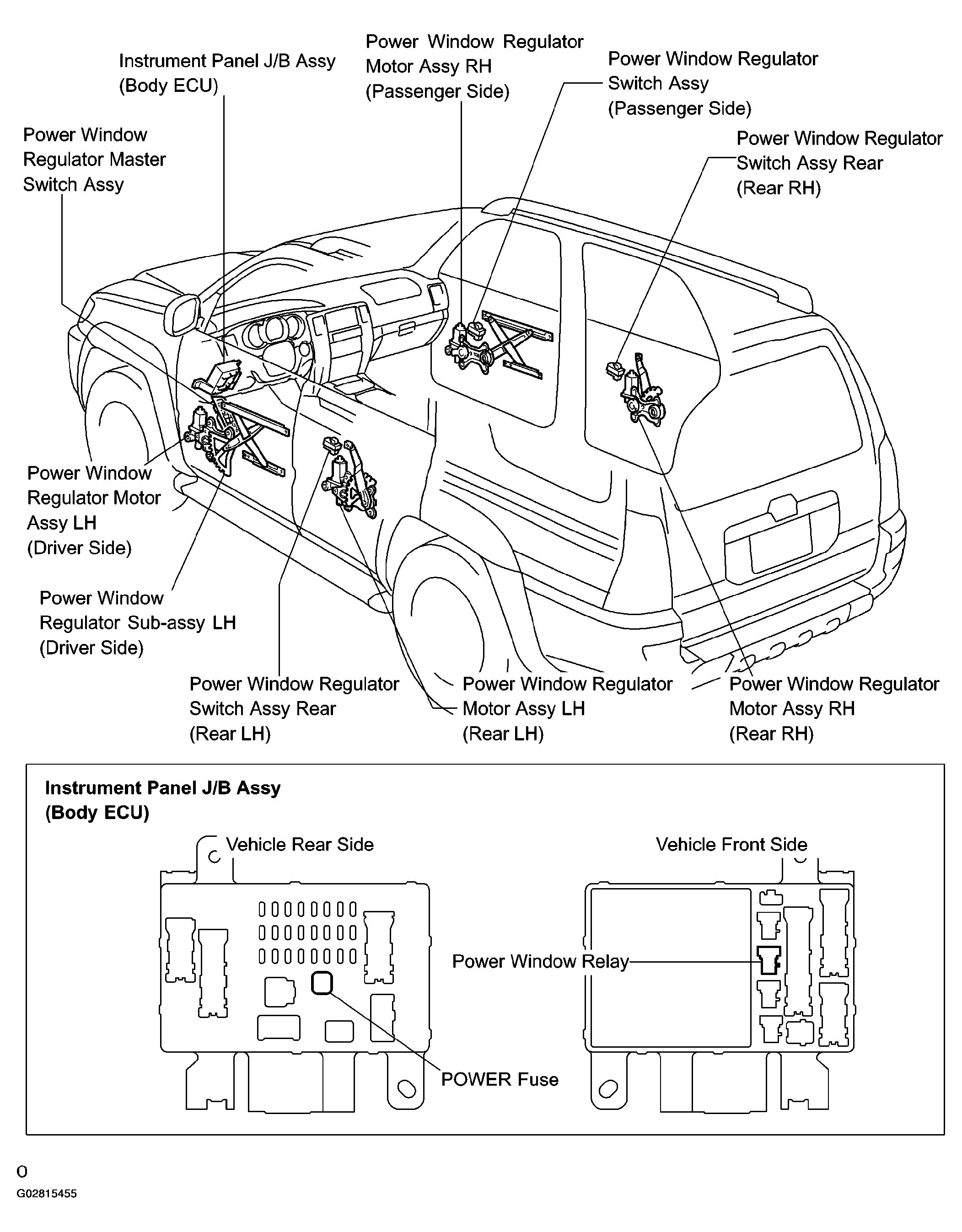

Fig 1: Locating Power Window Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

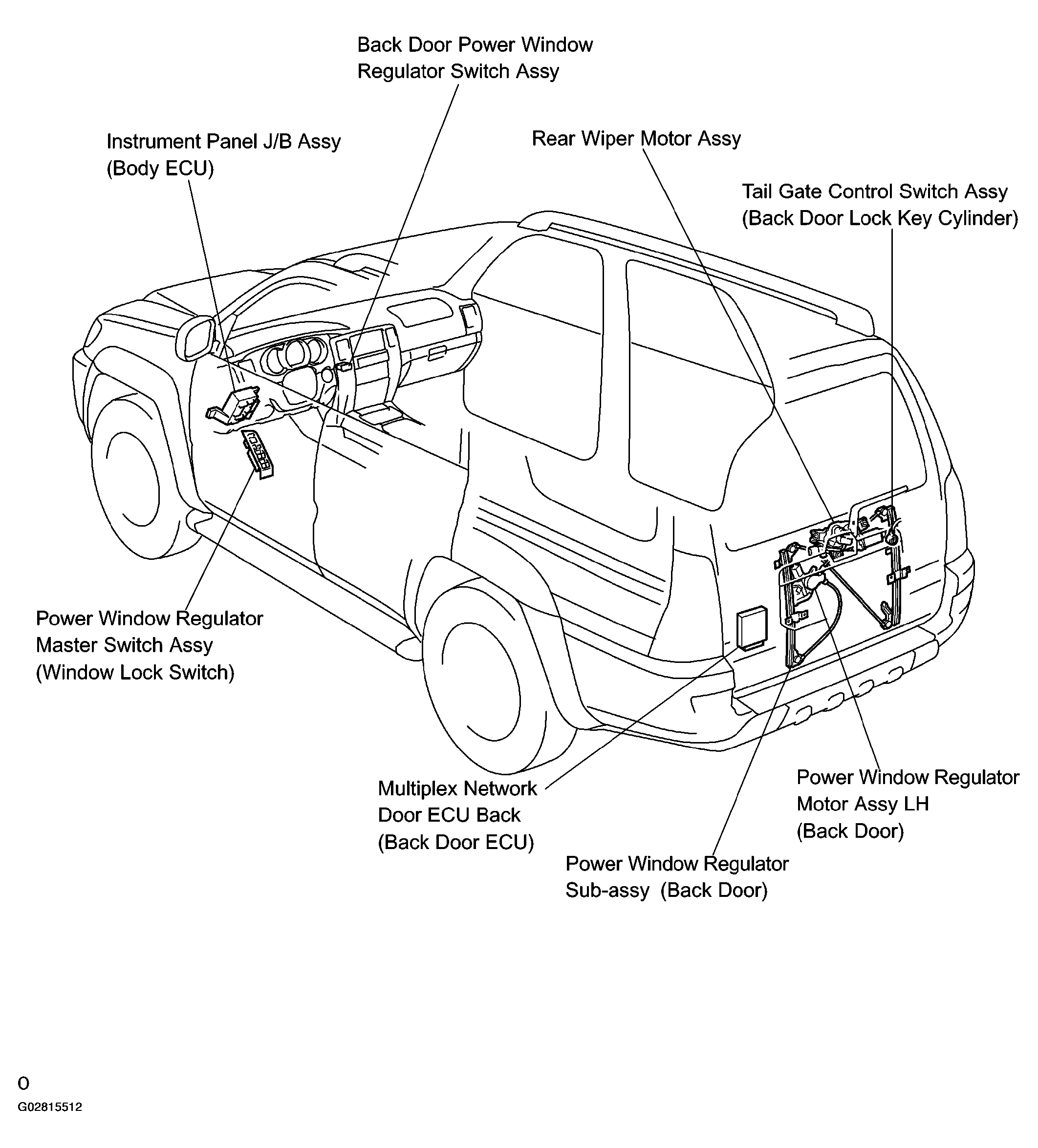

Fig 1: Locating Back Door Power Window Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
