Power Window Control System - Diagnostics
›
Remote Up/Down Function Does Not Operate
›
Wiring Diagram

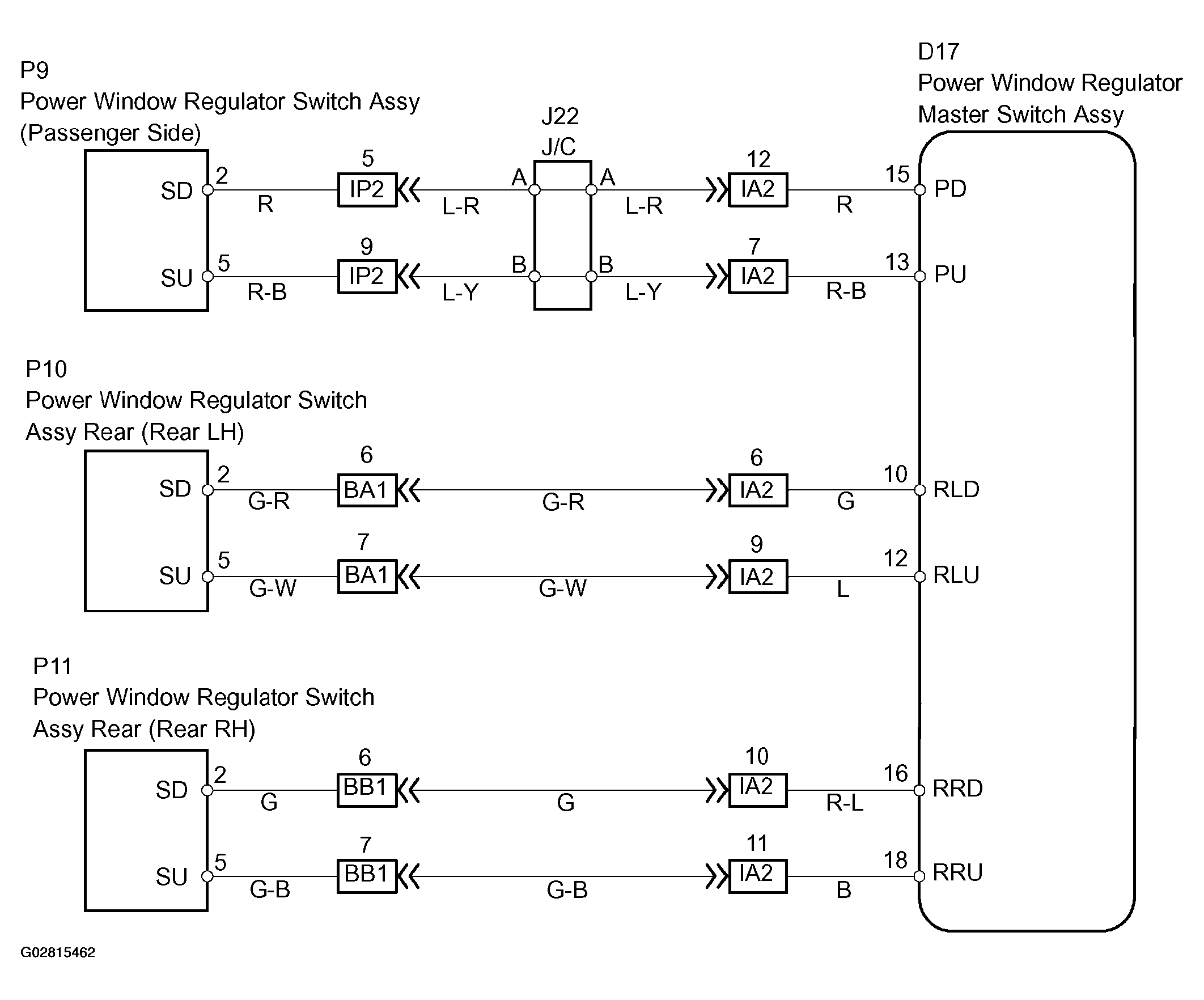

Remote Up/Down Function Does Not Operate: Wiring Diagram
Fig 1: Power Window Regulator Switch Assy Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
