Inner Rear View Mirror ASSY: Replacement

NOTE:

The installation is in the reverse order of the removal.

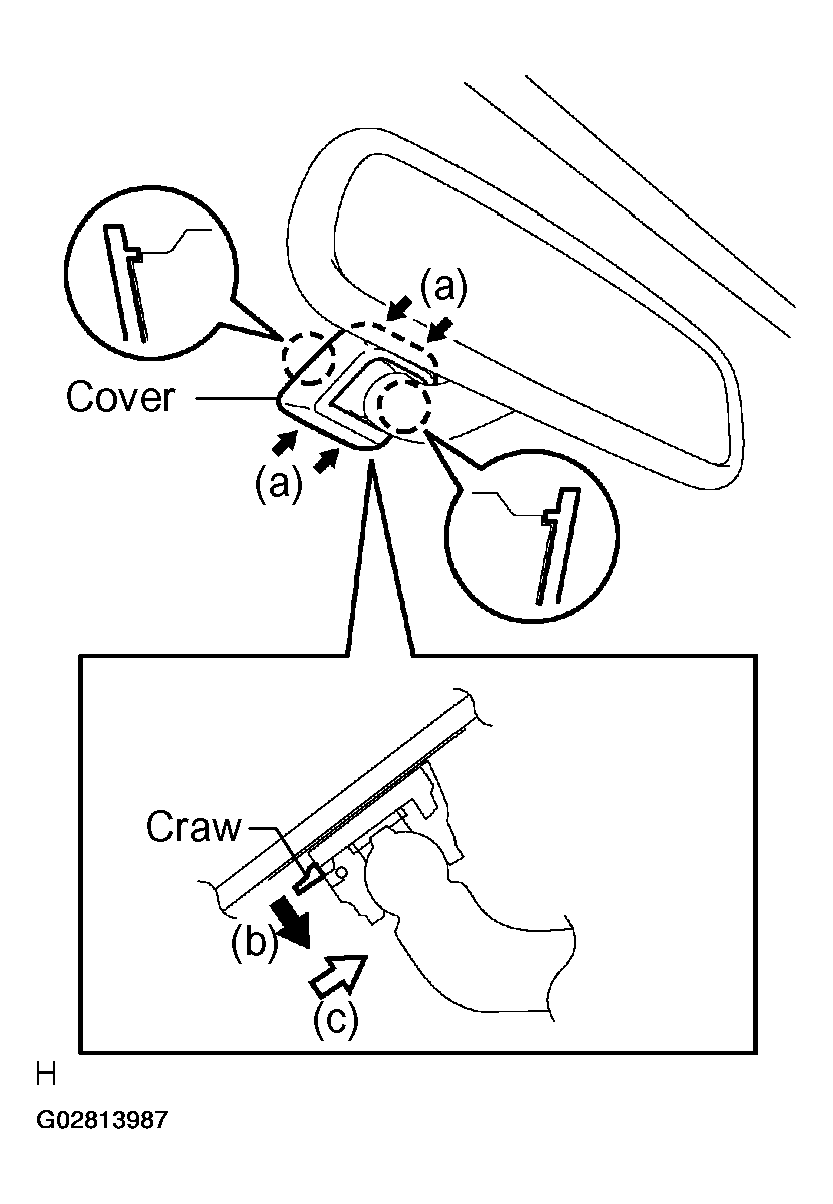

Fig 1: Pushing Claw In Direction (B), Slide Mirror Assy In Direction (C)

REMOVE INNER REAR VIEW MIRROR ASSY
1. Pushing portions (a) as indicated in Fig 1, remove the cover.
2. Pushing the claw in the direction (b), slide the mirror assy in the direction (c) to remove it.

  Fig 2: Identifying Slide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INNER REAR VIEW MIRROR ASSY (ELECTRO CHROMIC MIRROR INNER MIRROR)
1. Remove the mirror cover.
2. Disconnect the connector.
3. Remove the mirror assy as shown in Fig 2.
