Problem Symptoms Table

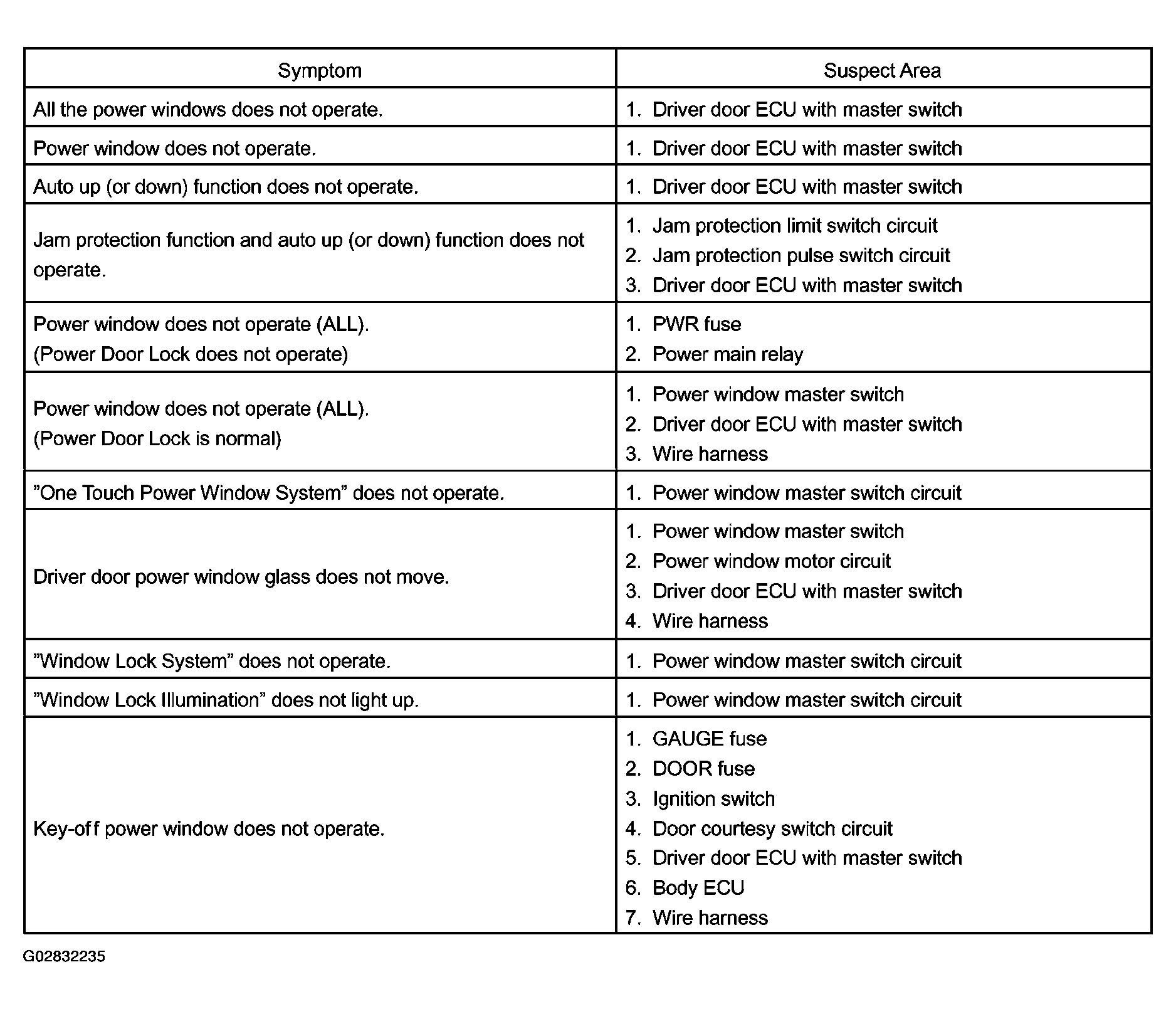

Fig 1: Power Window Control System Problem Symptom Chart
G02832235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

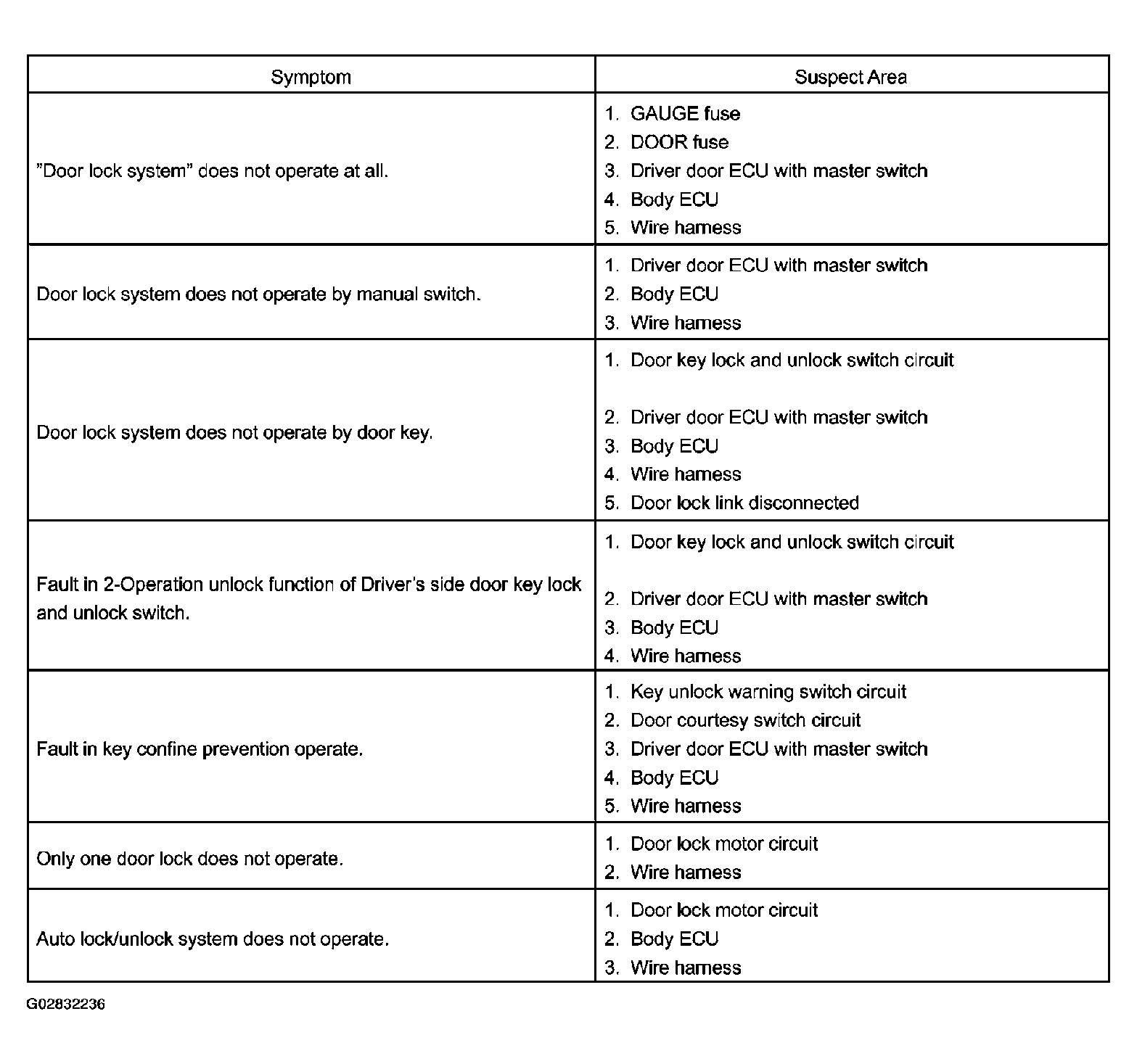

Fig 2: Power Door Lock Control System Problem Symptom Chart
G02832236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

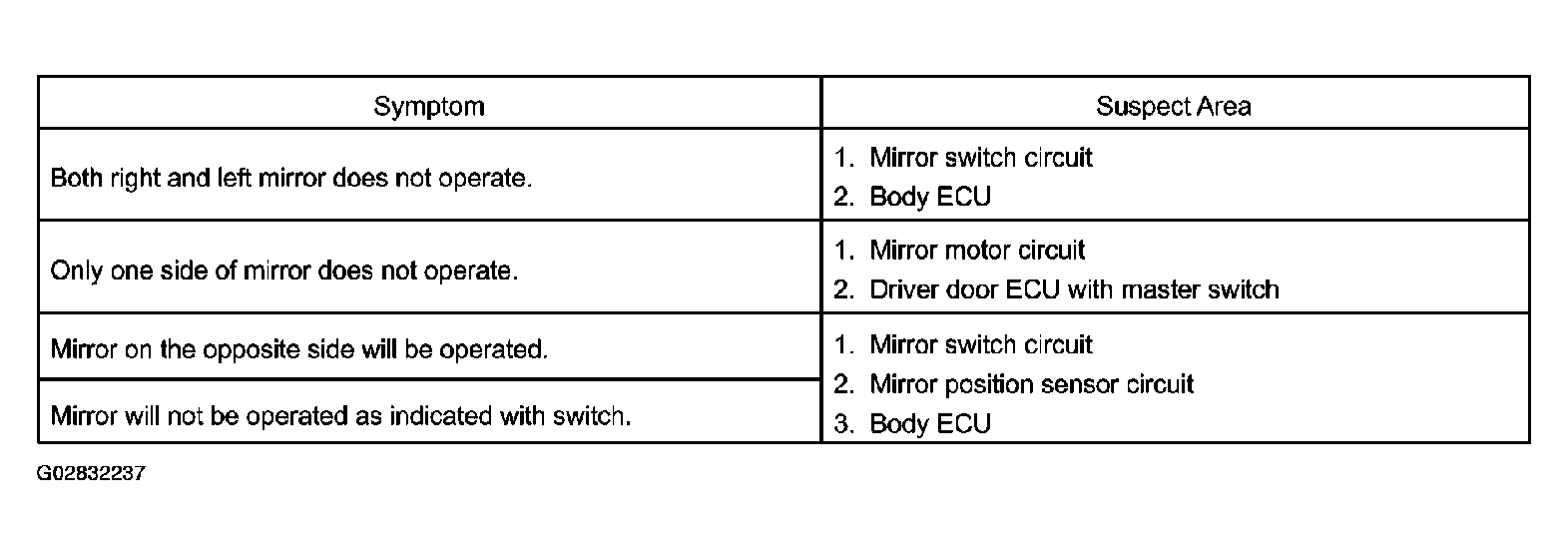

Fig 3: Power Mirror Control System Problem Symptom Chart
G02832237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
