Engine Immobilizer System: Location

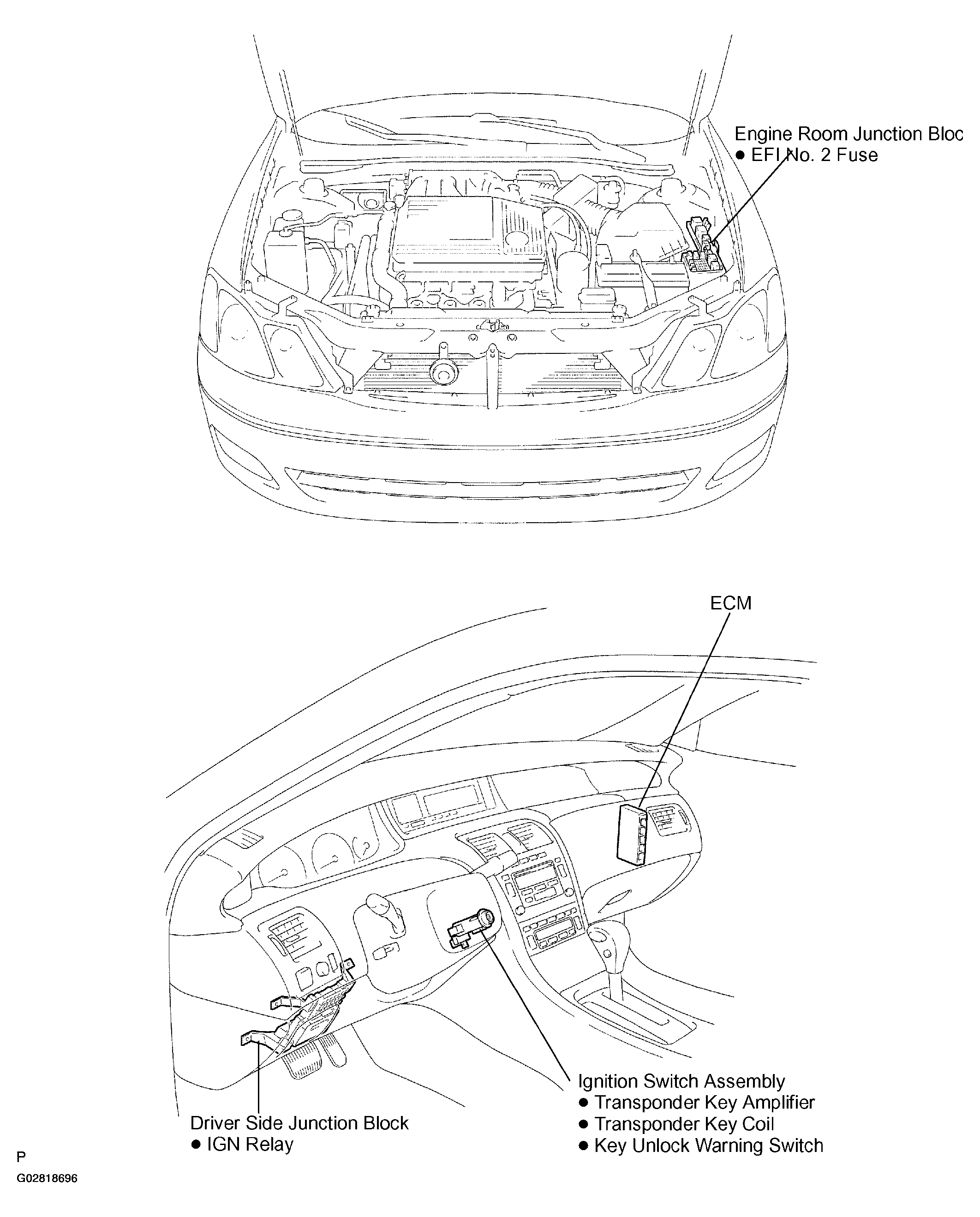

Fig 1: Identifying Engine Immobilizer System Components
G02818696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
