Wireless Door Lock Control System: Location

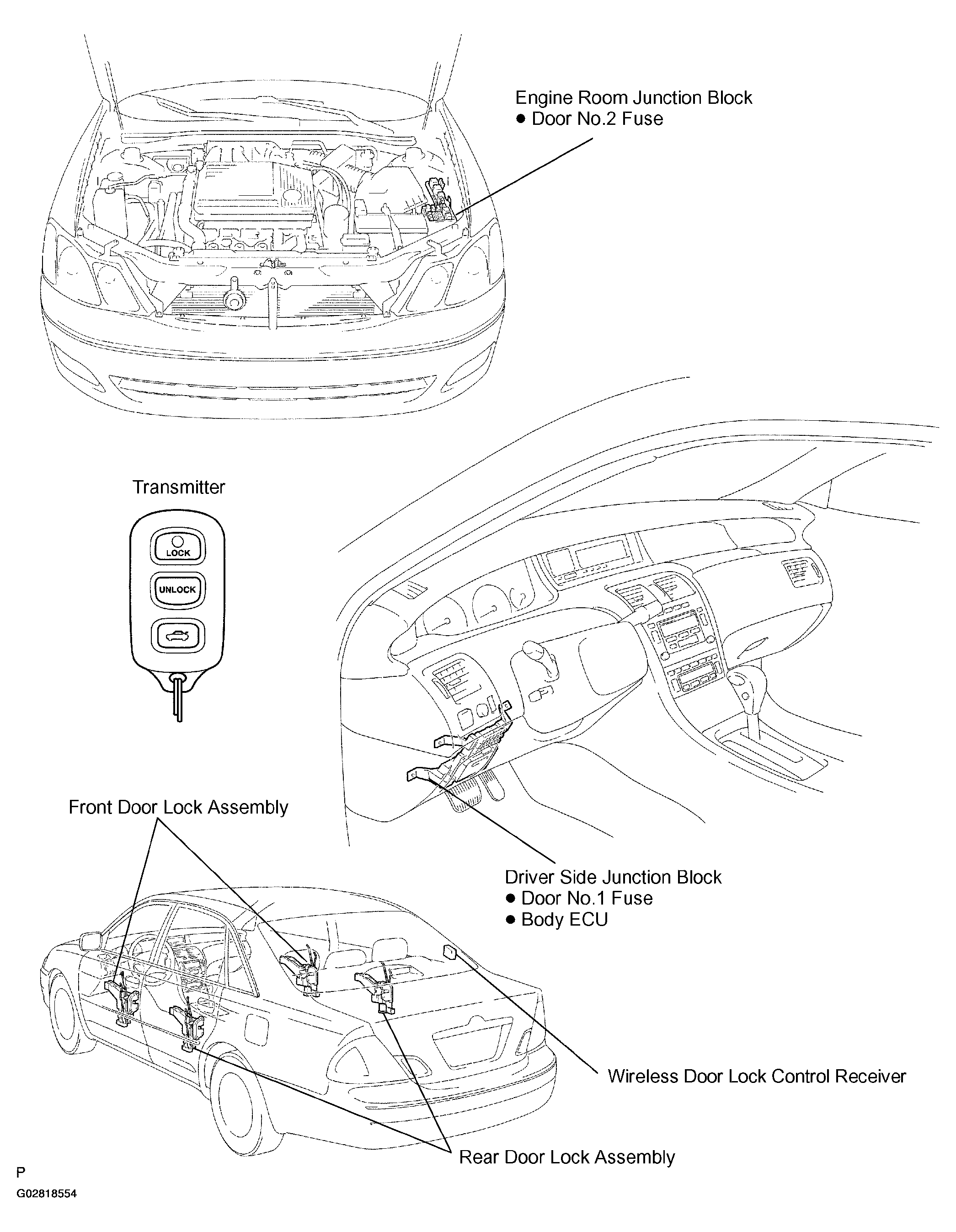

Fig 1: Identifying Wireless Door Lock Control System
G02818554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
