Power Window Control System: Troubleshooting

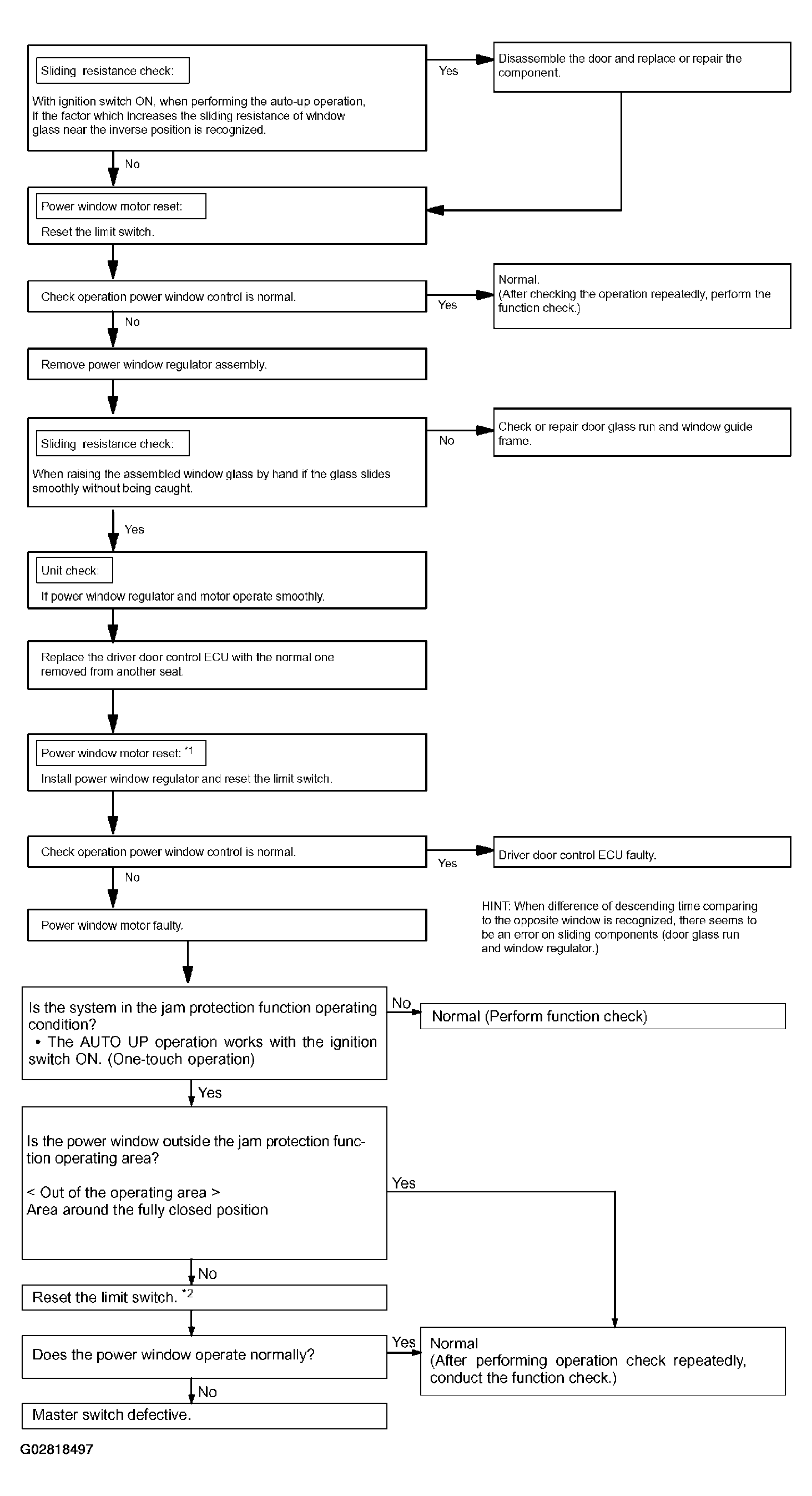

Fig 1: Power Window Control System Troubleshooting Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
