Abs Actuator: Components

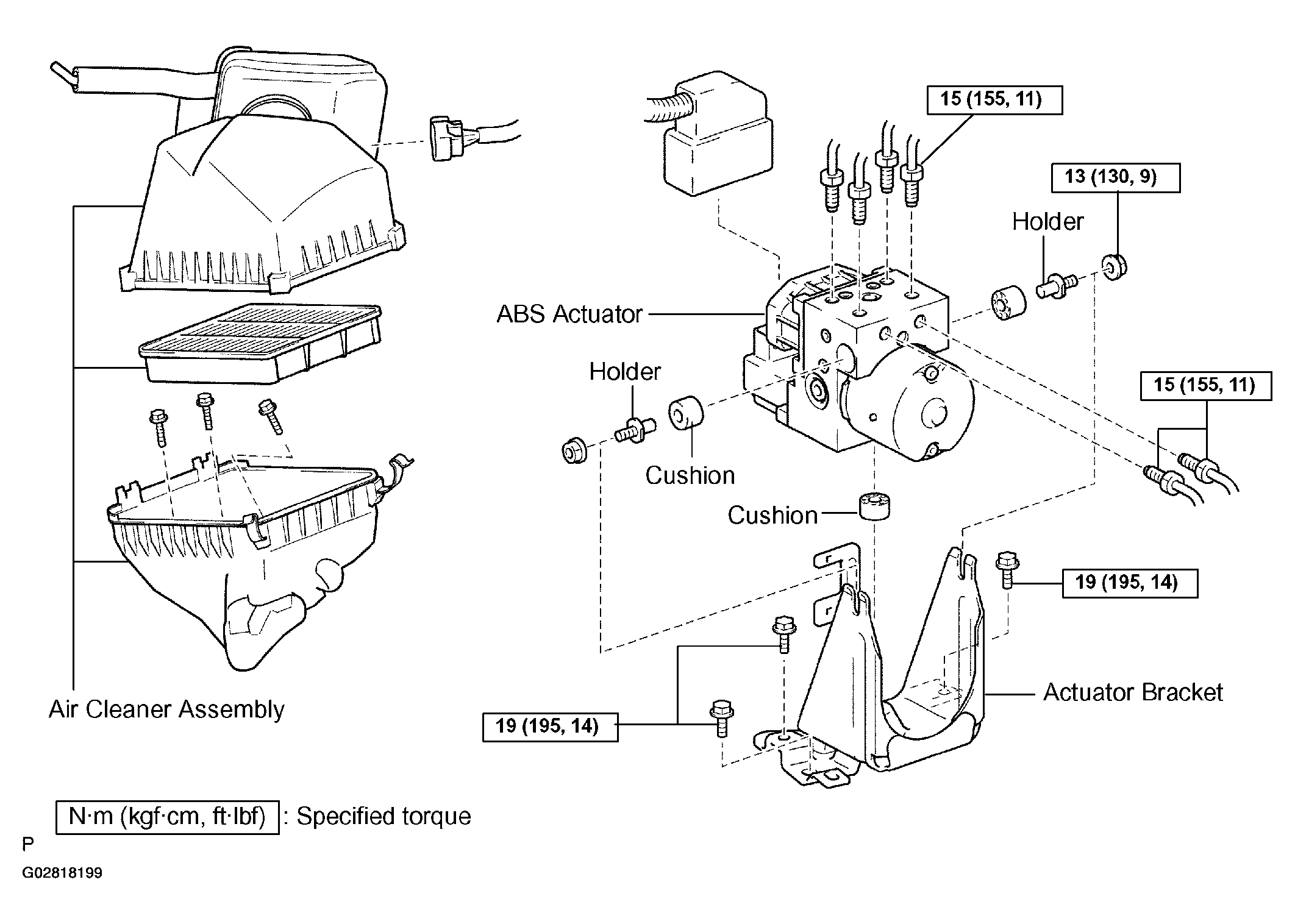

Fig 1: Identifying Components For ABS Actuator Removal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

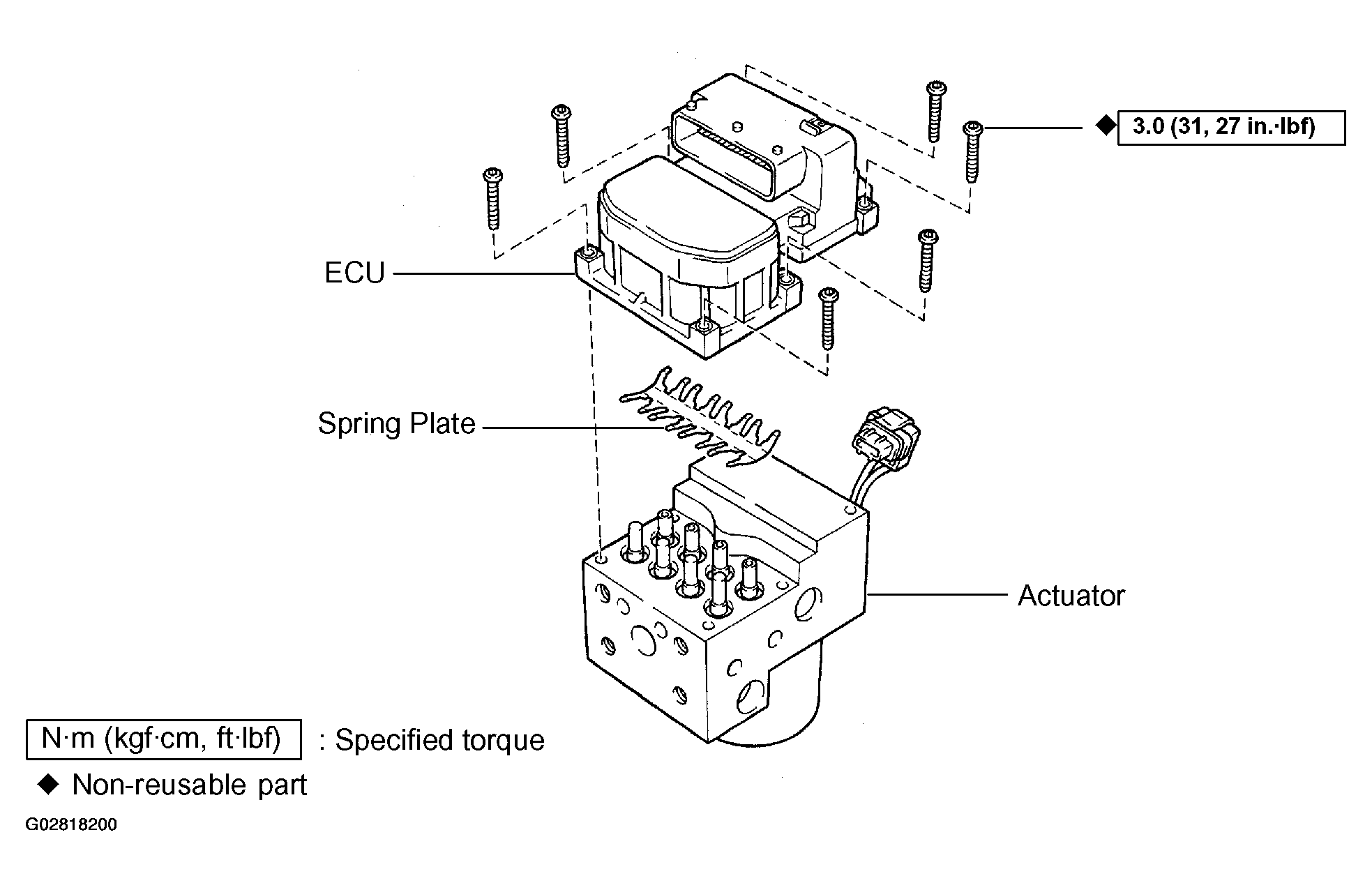

Fig 2: Exploded View Of ABS Actuator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
