Anti-Lock Brake System With Electronic Brake Force Distribution - Diagnostics: Pre-Check

  1. DIAGNOSIS SYSTEM
    Fig 1: Checking ABS & Brake Warning Light
    G02831953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Release the parking brake pedal.
    2. Check the indicator.

      When the ignition switch is turned ON, check that the ABS warning light and BRAKE warning light goes on for approx. 3 seconds.

      NOTE:
      • When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
      • If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or BRAKE warning light circuit.
      ABS AND BRAKE WARNING LIGHT TROUBLESHOOTING

      Trouble Area See
      ABS Warning Light Circuit ABS WARNING LIGHT CIRCUIT
      BRAKE Warning Light Circuit BRAKE WARNING LIGHT CIRCUIT
    3. In case of not using hand-held tester:

      Check the DTC of skid control ECU.

      1. Using SST, connect terminals TC and CG of DLC3. SST 09843-18040
      2. Fig 2: Identifying TC & CG Terminal Of DLC3
        G02831954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Turn the ignition switch ON.
      4. Read the DTC from the ABS warning light, on the combination meter.
        NOTE:
        • If no code appears, inspect the diagnostic circuit, ABS warning light circuit or BRAKE warning light circuit.
          TC TERMINAL, ABS WARNING LIGHT, BRAKE WARNING LIGHT CIRCUIT TROUBLESHOOTING

          Trouble Area See
          TC Terminal Circuit TC TERMINAL CIRCUIT
          ABS Warning Light Circuit ABS WARNING LIGHT CIRCUIT
          BRAKE Warning Light Circuit BRAKE WARNING LIGHT CIRCUIT
        • When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
        • As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

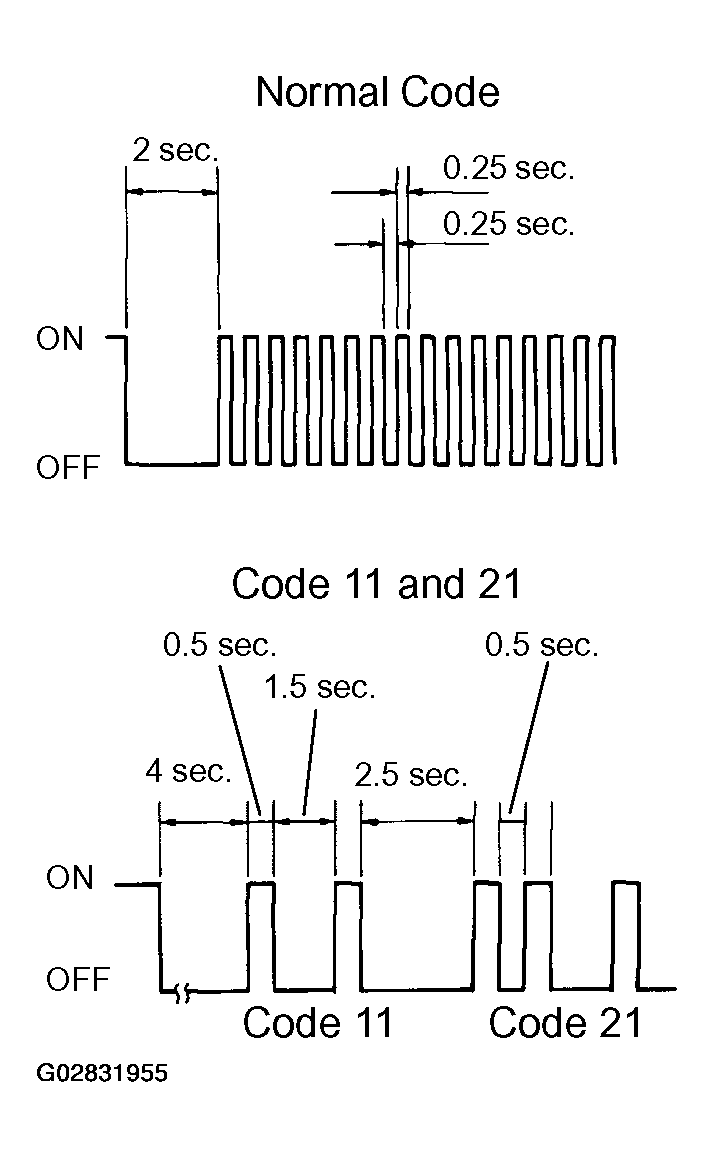

        • Fig 3: Blinking Patterns For Normal Code & Codes 11 & 21
          G02831955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Codes are explained in the code table on page DI-248
      6. After completing the check, disconnect terminals TC and CG of DLC3, and turn off the display.

        If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.

    4. In case of using hand-held tester:

      Check the DTC.

      1. Hook up the hand-held tester to the DLC2.

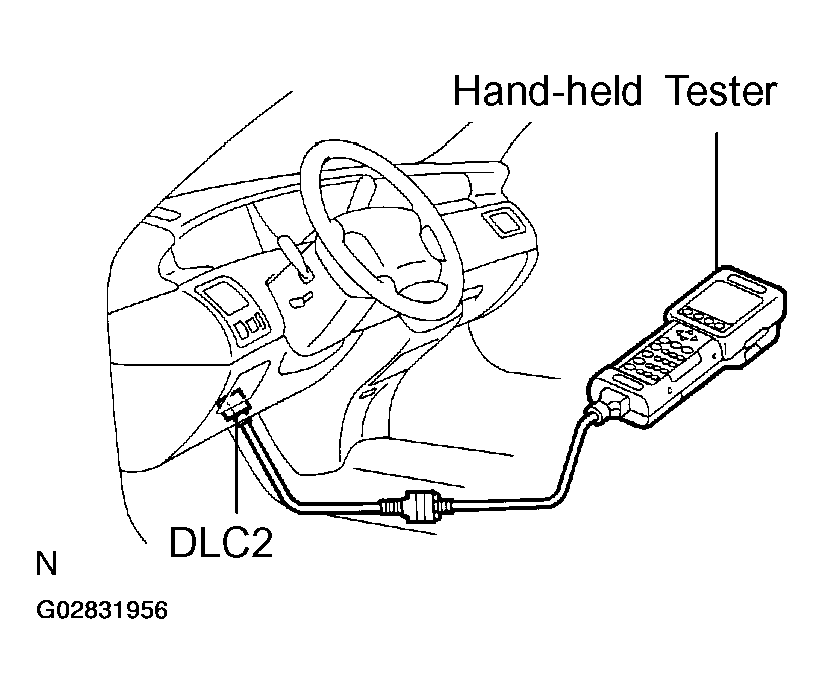

      2. Fig 4: Connecting Hand Held Tester To DLC2
        G02831956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the hand-held tester DC power cable to the cigarette lighter.
      4. Turn the ignition switch ON.
      5. Read the DTC by following the prompts on the tester screen.
        NOTE: Please refer to the hand-held tester operator's manual for further details.
    5. In case of not using hand-held tester:
      Fig 5: Depressing Brake Pedal
      G02831957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Clear the DTC of skid control ECU.

      1. Using SST, connect terminals TC and CG of DLC2. SST 09843-18040
      2. Turn the ignition switch ON.
      3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
      4. Check that the warning light shows the normal code.
      5. Remove the SST from the terminals of DLC3. SST 09843-18040
        NOTE: Cancellation cannot be done by removing the battery cable or ECU-IG fuse.
    6. In case of using hand-held tester:

      Clear the DTC.

      1. Hook up the hand-held tester to the DLC2.
      2. Fig 6: Connecting Hand Held Tester To DLC2
        G02831958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the hand-held tester DC power cable to the cigarette lighter.
      4. Turn the ignition switch ON.
      5. Operate the hand-held tester to erase the codes.
        NOTE: Please refer to the hand-held tester operator's manual for further details.
  2. SPEED SENSOR SIGNAL CHECK (TEST MODE)
    1. In case of not using hand-held tester:

      Check the sensor signal.

      1. Turn the ignition switch OFF.
      2. Using SST, connect terminals TS and CG of DLC3. SST 09843-18040
        Fig 7: Identifying TC, TS, CG Terminals Of DLC3
        G02831959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Start the engine.
      4. Check that the ABS warning light blinks.
        Fig 8: Blinking Pattern Of ABS Warning Light
        G02831960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: If the ABS warning light does not blink, inspect the ABS warning light circuit (See ABS WARNING LIGHT CIRCUIT ).
      5. Drive vehicle straight forward.

        Drive vehicle at a speed faster than 45 km/h (28 mph) for several seconds and check that the ABS warning light comes off.

        NOTE: The sensor check may not be completed if the front wheels are spun or the steering wheel is steered during this check.
      6. Stop the vehicle.
      7. Using SST, connect terminals TC and CG of DLC3. SST 09843-18040
      8. Turn the ignition switch ON.
      9. Read the number of blinks of the ABS warning light.
        NOTE:
        • See the list of DTC shown on the next page.
        • If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
        • If 2 or more malfunction codes are identified at the same time, the lowest numbered code will be displayed 1st.

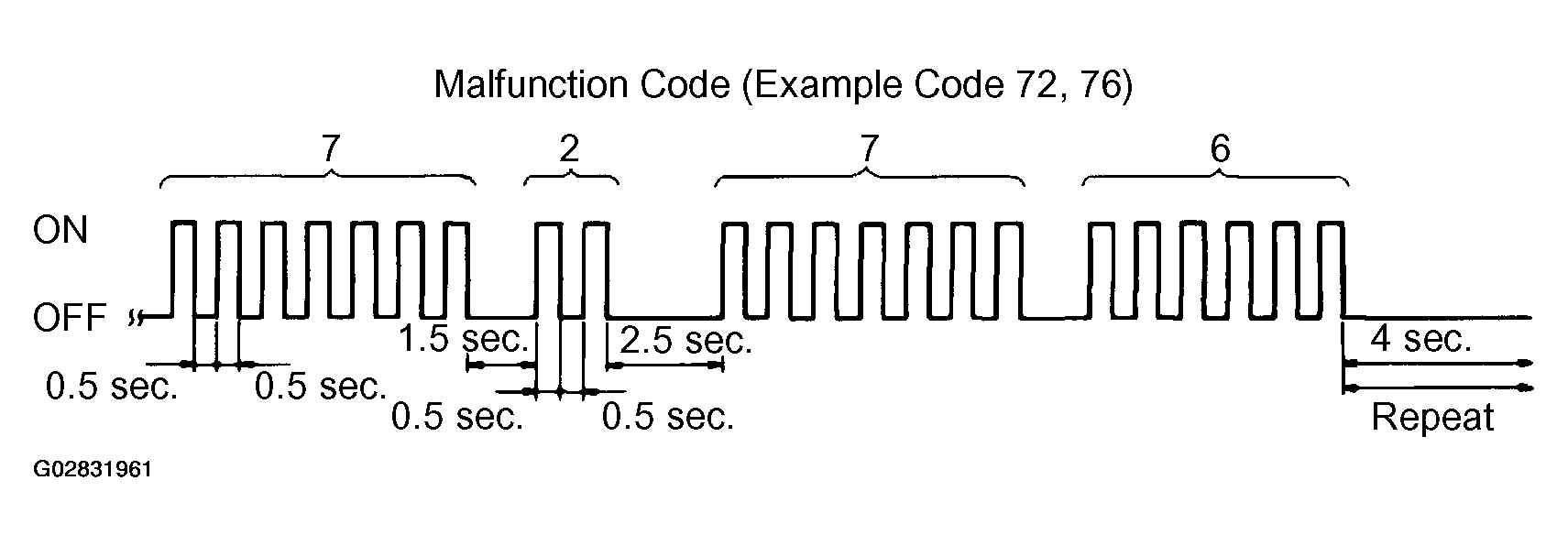

        Fig 9: Blinking Pattern Of Malfunction Code (Example Code 72,76)
        G02831961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. After doing the check, disconnect the SST from terminals of DLC3, and turn the ignition switch OFF. SST 09843-18040
    2. In case of using hand-held tester:

      Check the sensor signal.

      1. Hook up the hand-held tester to the DLC2.
      2. Fig 10: Connecting Hand Held Tester To DLC2
        G02831962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the hand-held tester DC power cable to the cigarette lighter.
      4. Do step (3)-(6) on the previous page.
      5. Read the DTC by following the prompts on the tester screen.
NOTE: Please refer to the hand-held tester operator's manual for further details.

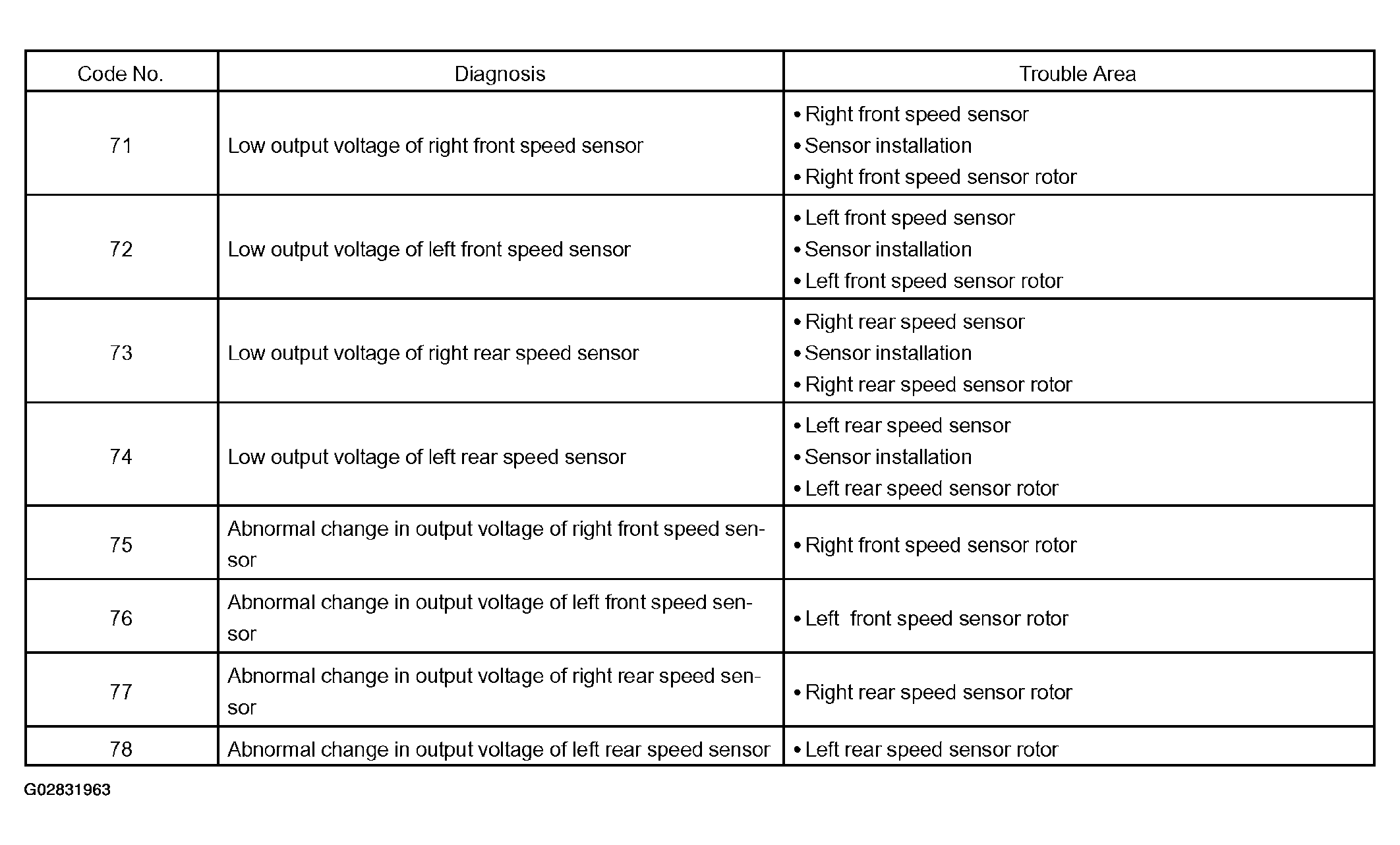

Fig 11: DTC Of Speed Sensor Check Function Chart
G02831963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
