DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem
›
Circuit Description
Circuit Description
For circuit description, see
Figure

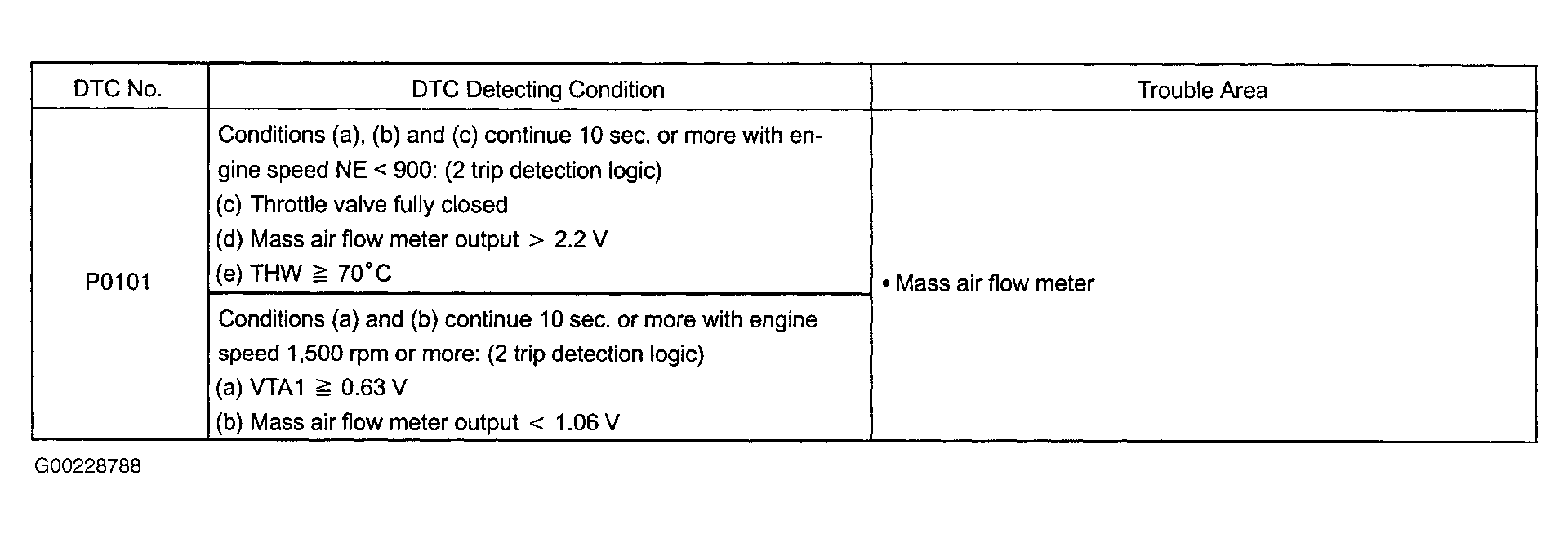

. For possible causes, see
Fig 1
.
Fig 1: DTC P0101 Circuit Description
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
