Power Steering Vane Pump: Components

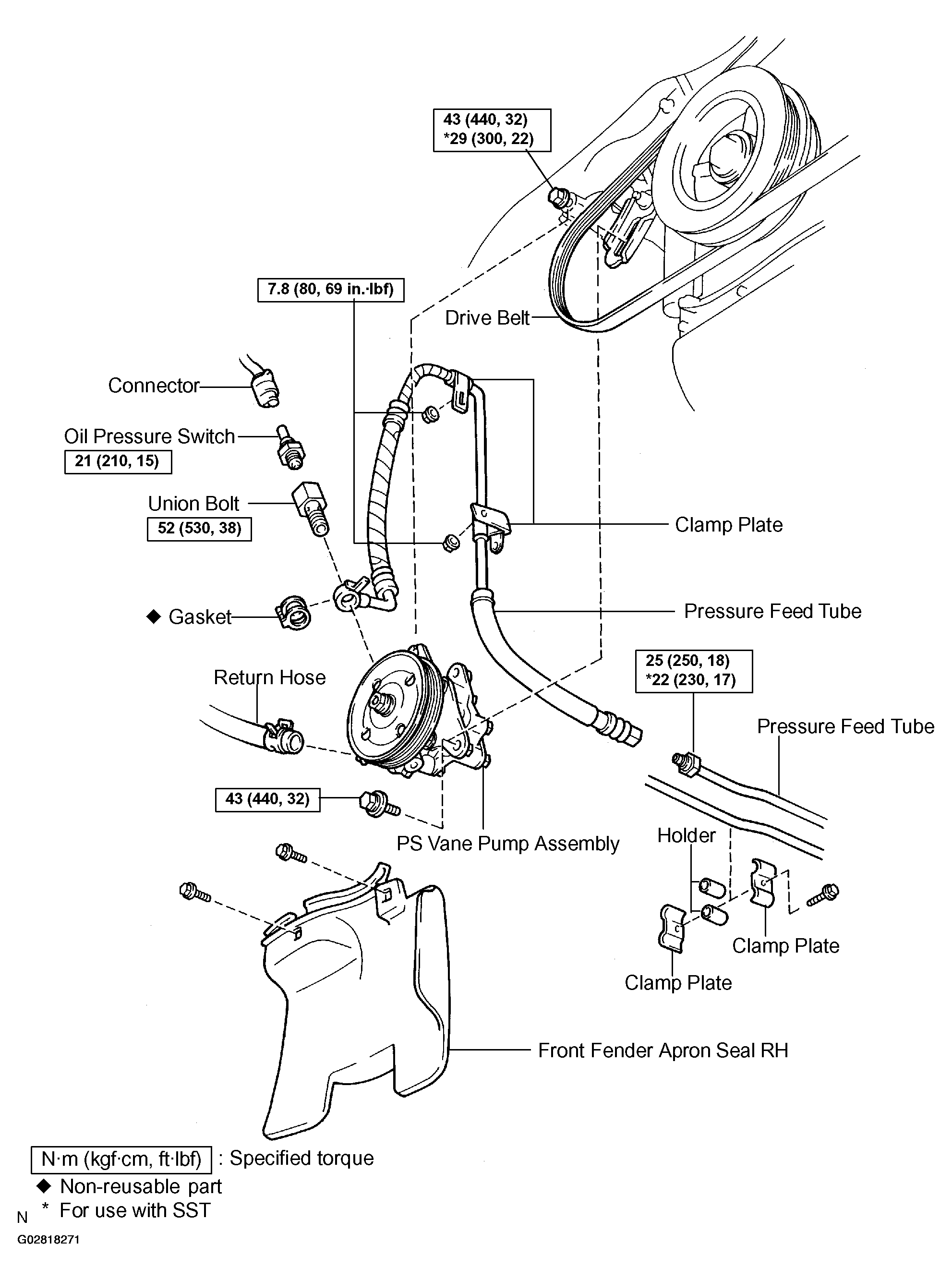

Fig 1: Identifying Power Steering Vane Pump Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

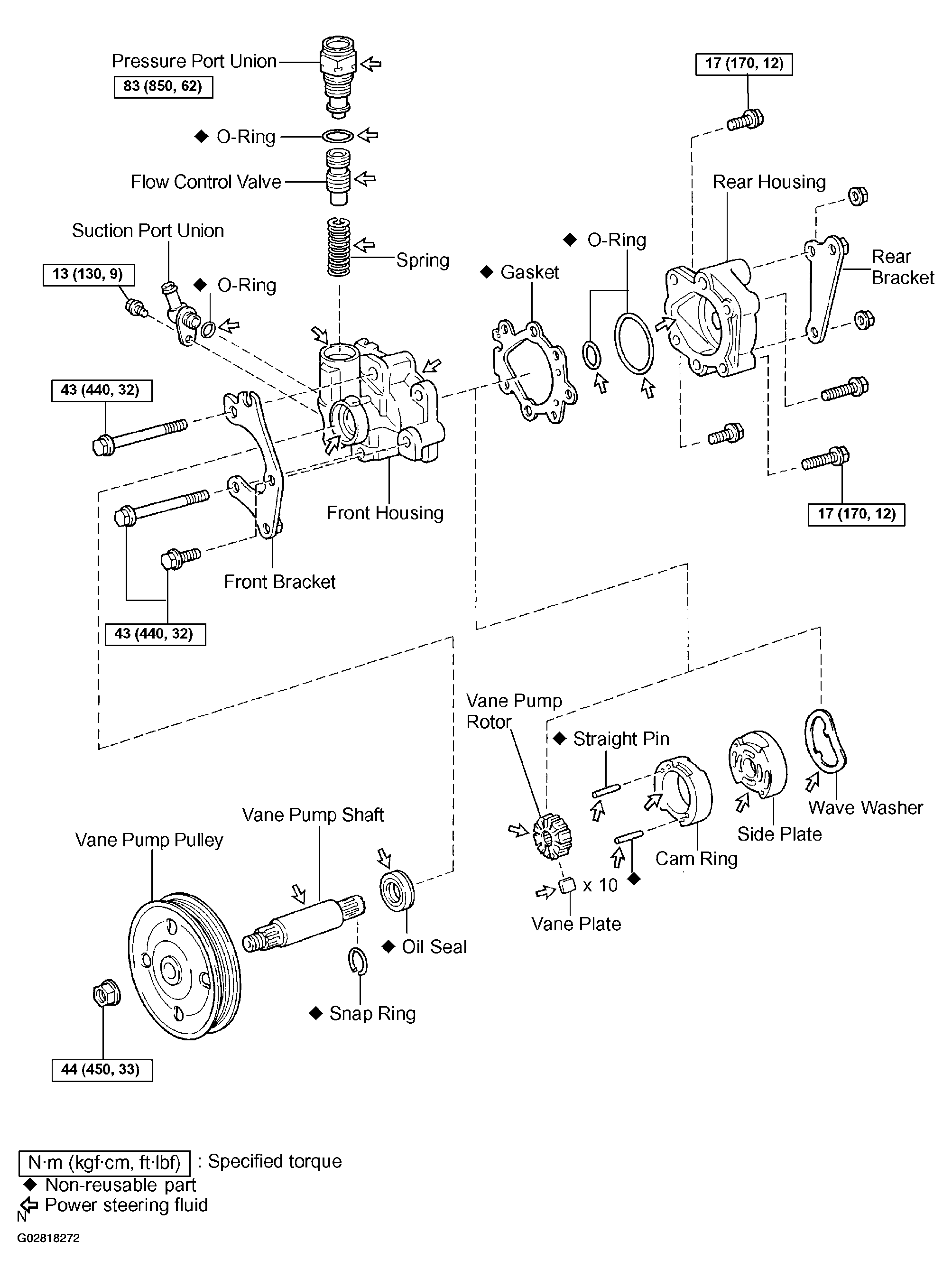

Fig 2: Exploded View Of Power Steering Vane Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
