Diagnostic Trouble Code Chart

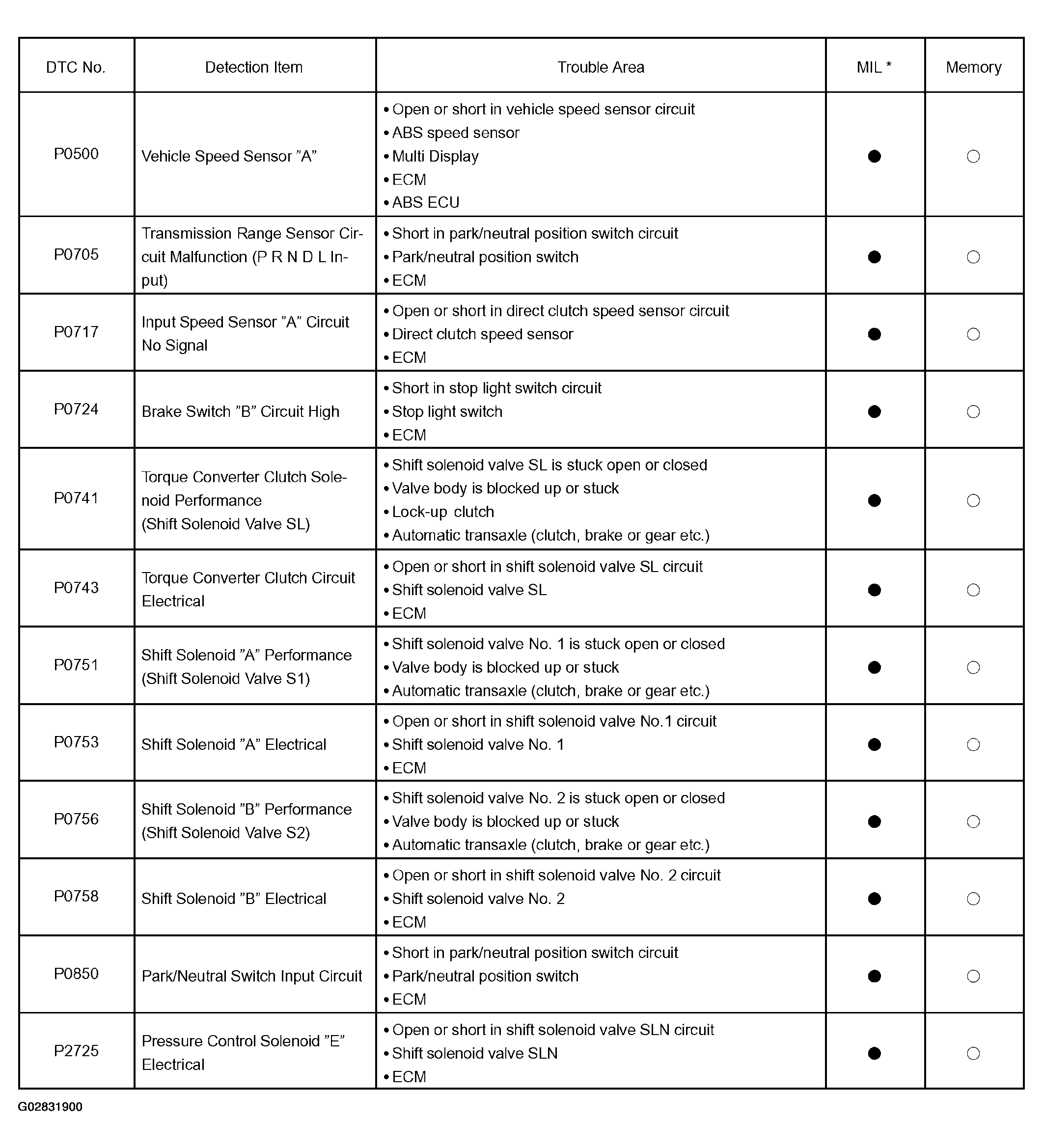

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate Circuit Inspection. See DIAGNOSTIC TROUBLE CODE DEFINITIONS table.
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate Circuit Inspection. See DIAGNOSTIC TROUBLE CODE DEFINITIONS table.
