Automatic Transmission Shift Lock System (Floor Shift): Inspection

INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY
Using a voltmeter, measure the voltage at each terminal.

Fig 1: Inspecting Shift Lock Control Unit Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not disconnect the shift lock control unit assembly connector.

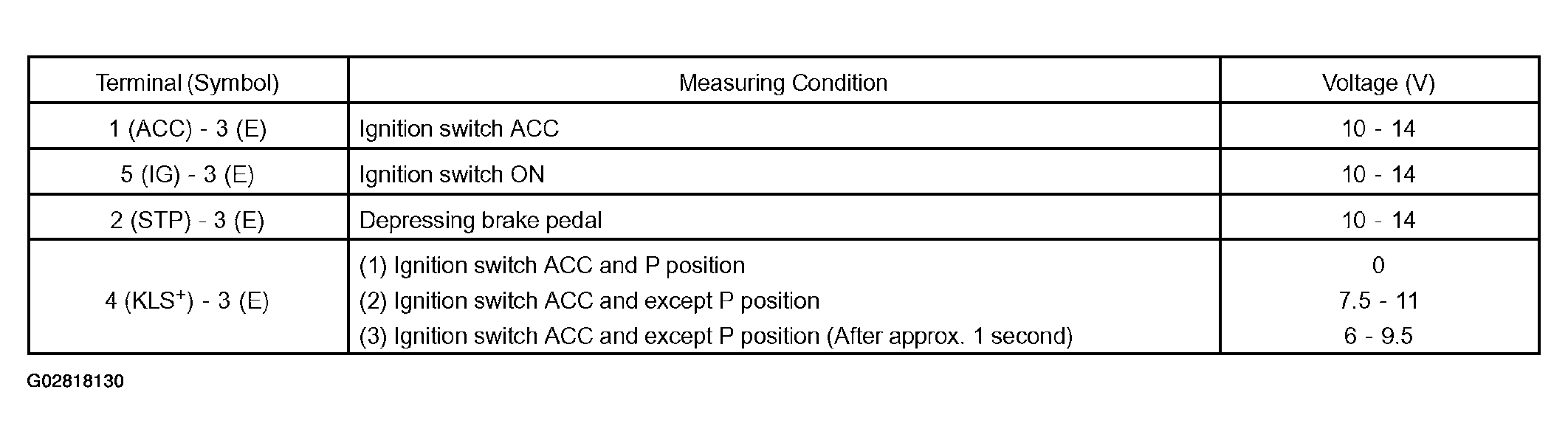

Fig 2: Terminal Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.

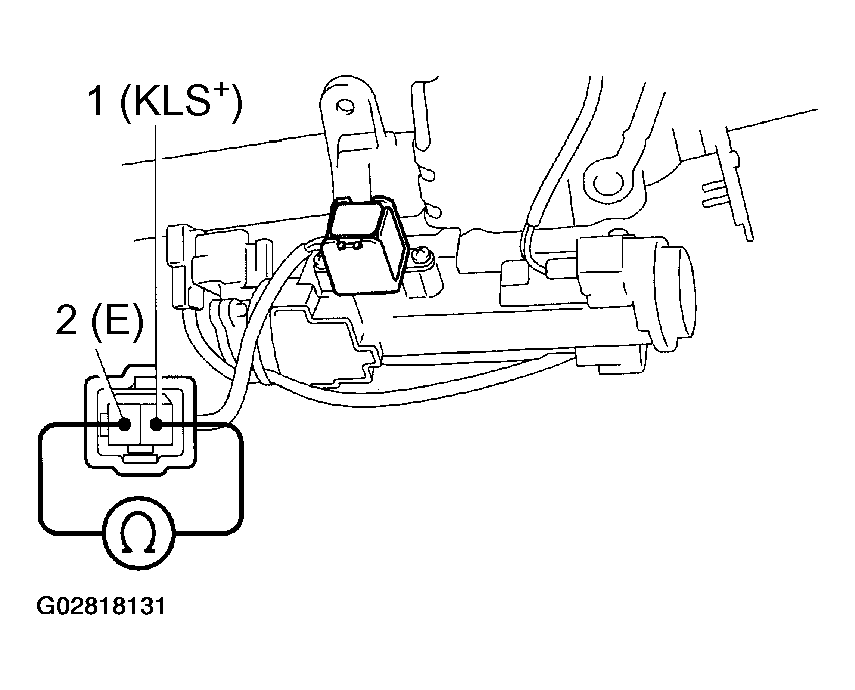

  Fig 3: Measuring Resistance Between Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard resistance: 14.+/- 1.5 Ω

  If resistance value is not as specified, replace the solenoid.
3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.
  If the solenoid does not operated, replace the solenoid.

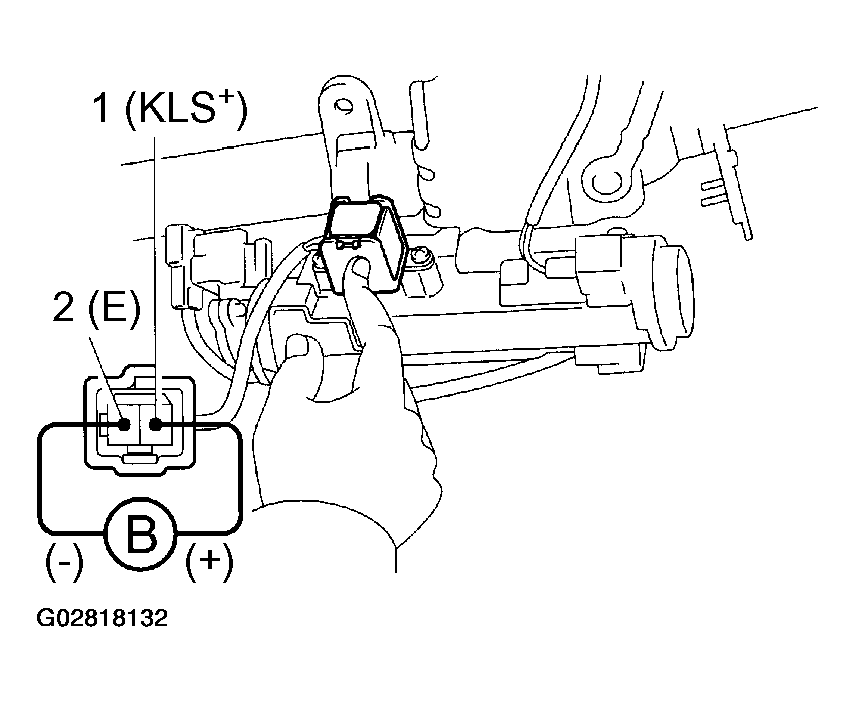

  Fig 4: Testing Key Interlock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
