Automatic Transmission Assembly: Components

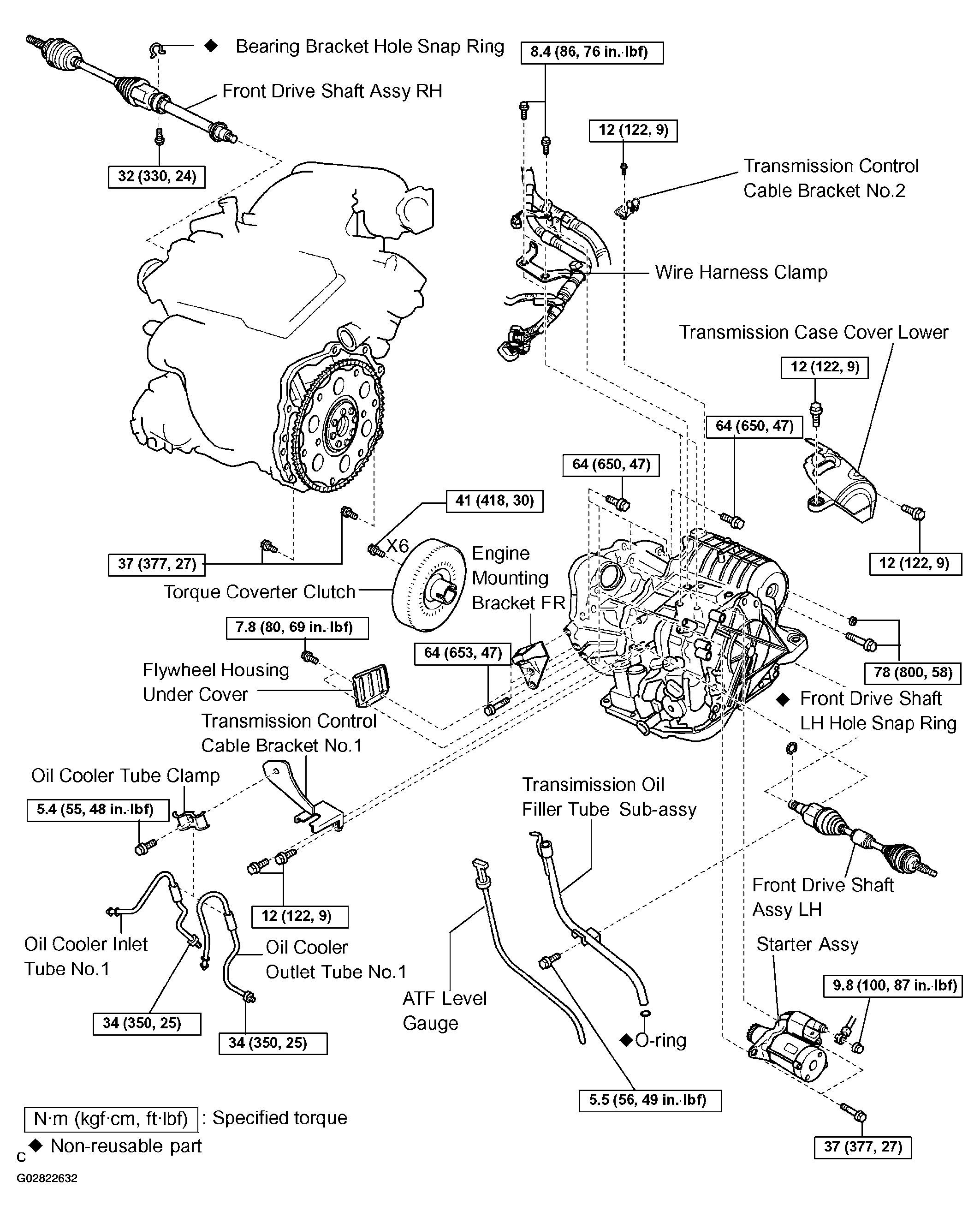

Fig 1: Locating Automatic Transaxle Assy Components
G02822632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
