Steering Column: Components

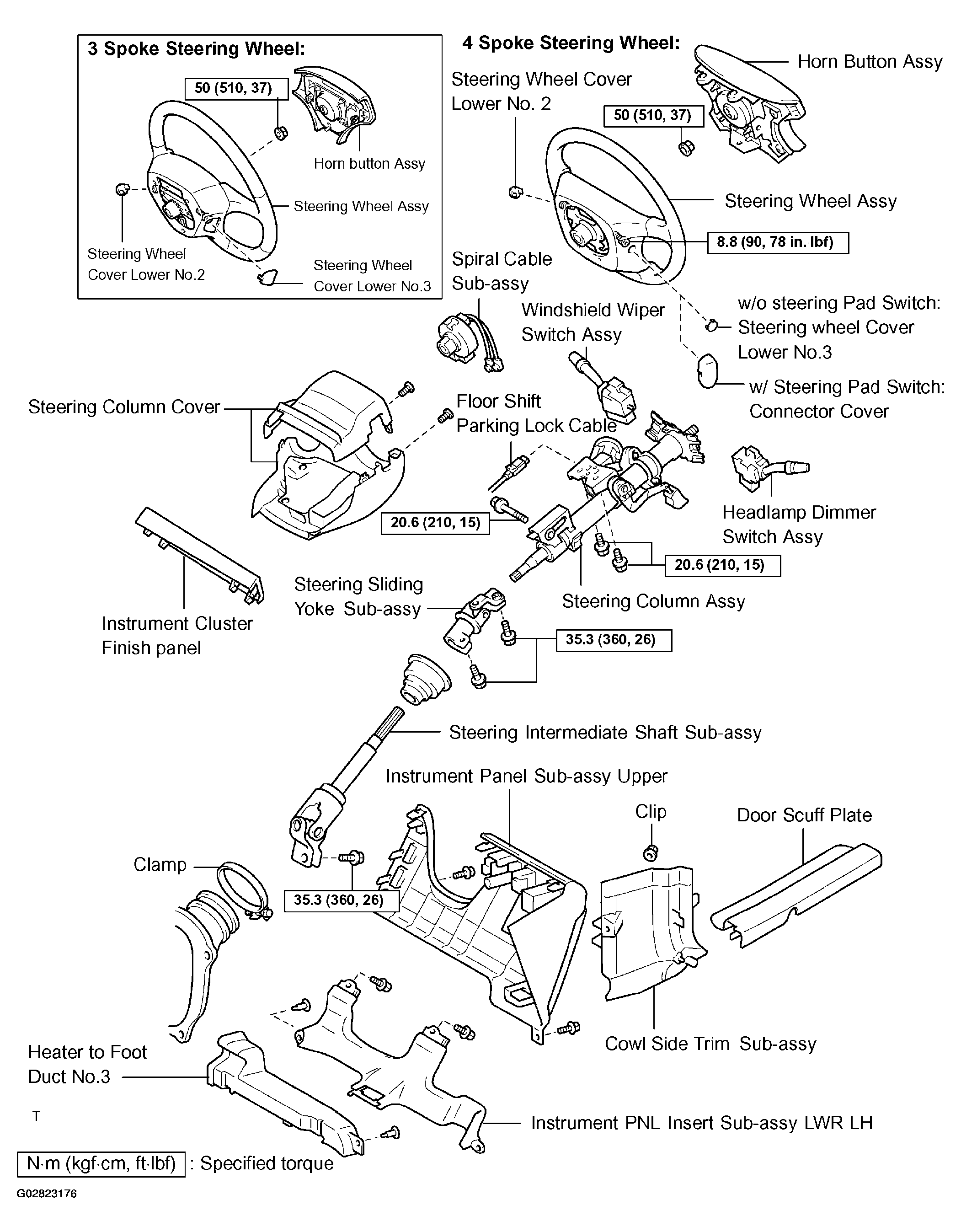

Fig 1: Exploded View of Steering Column Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

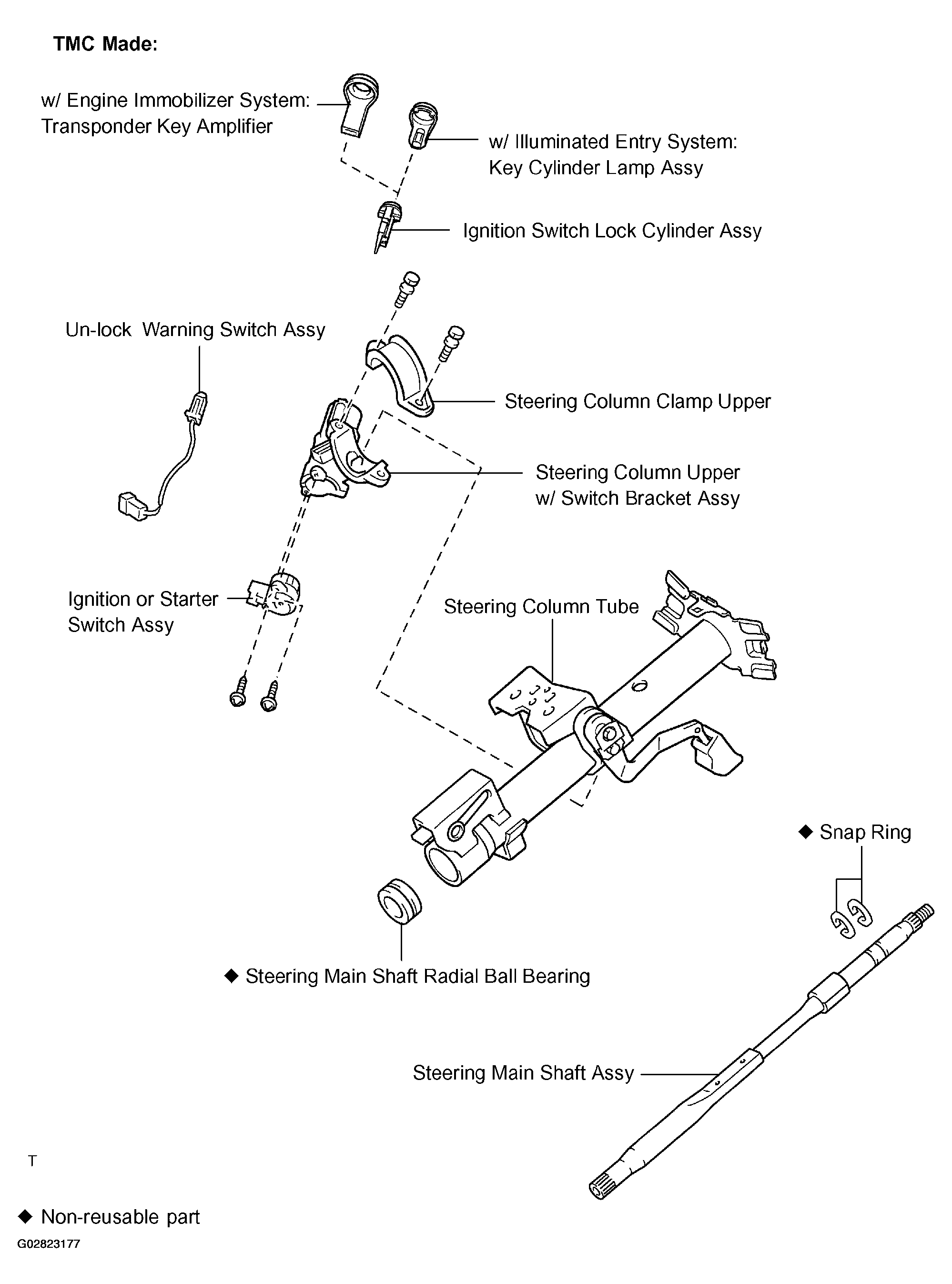

Fig 2: Locating Steering Column Components (TMC Made)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

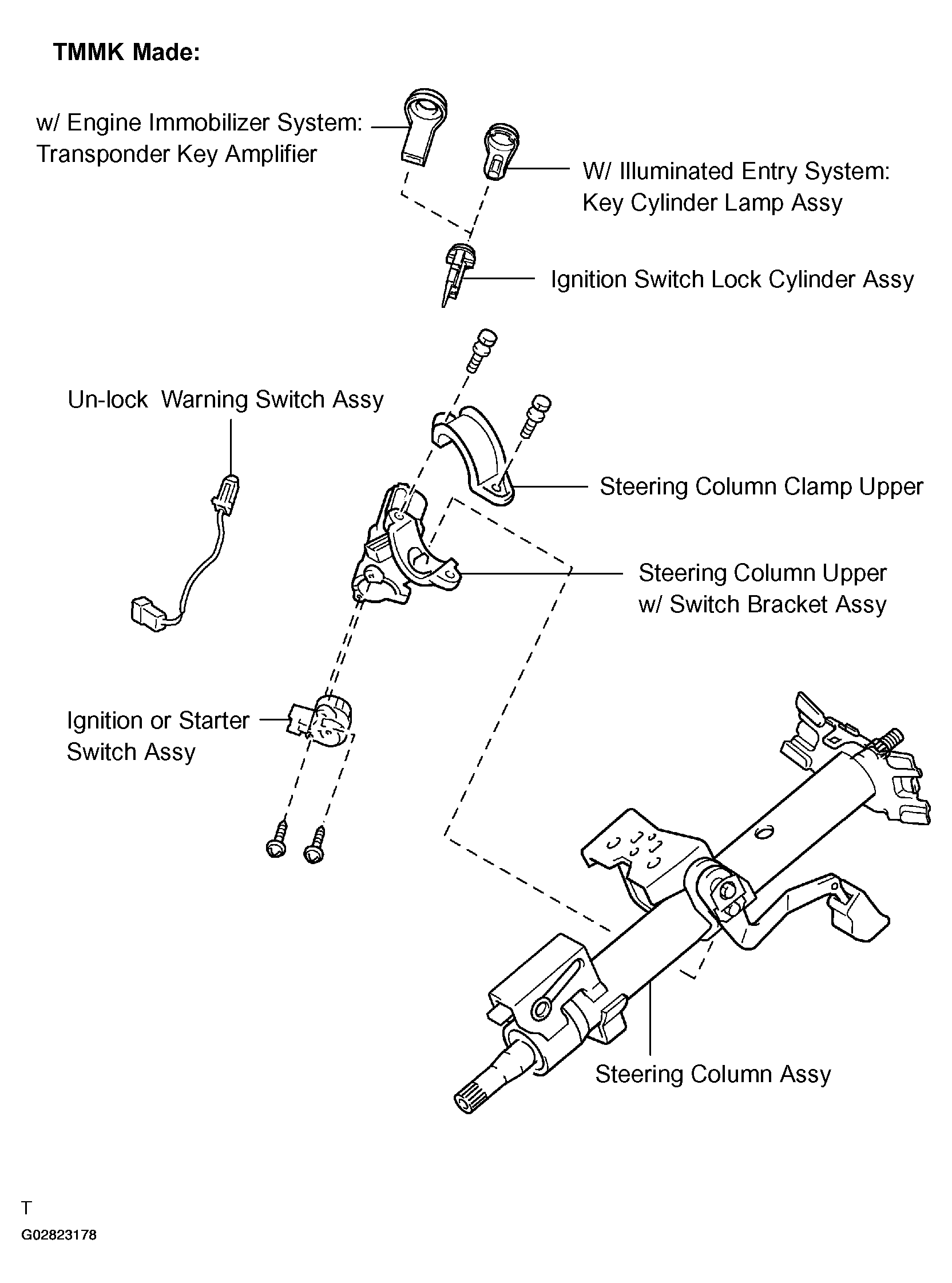

Fig 3: Locating Steering Column Components (TMMK Made)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
