Engine Operating Condition

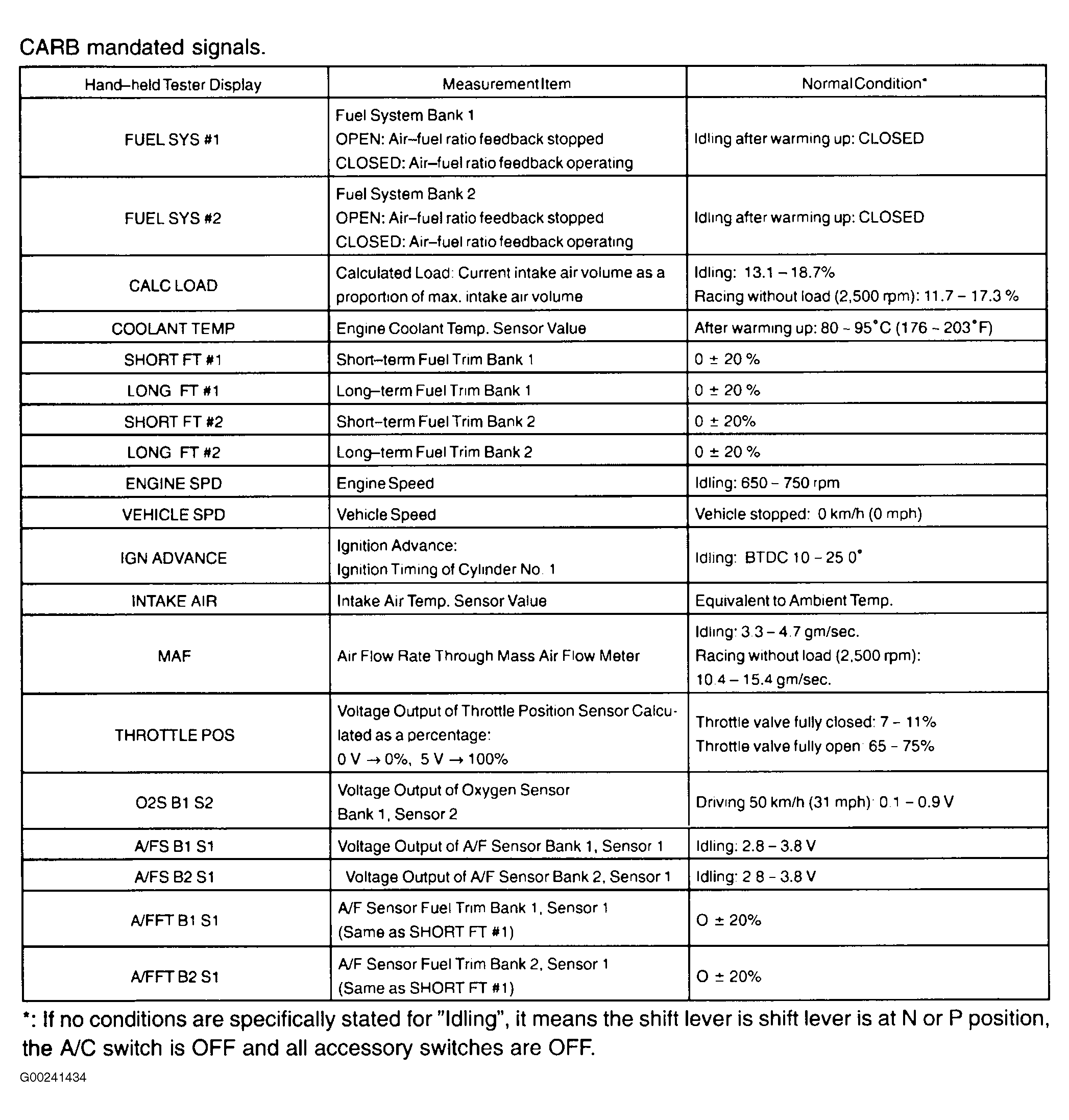

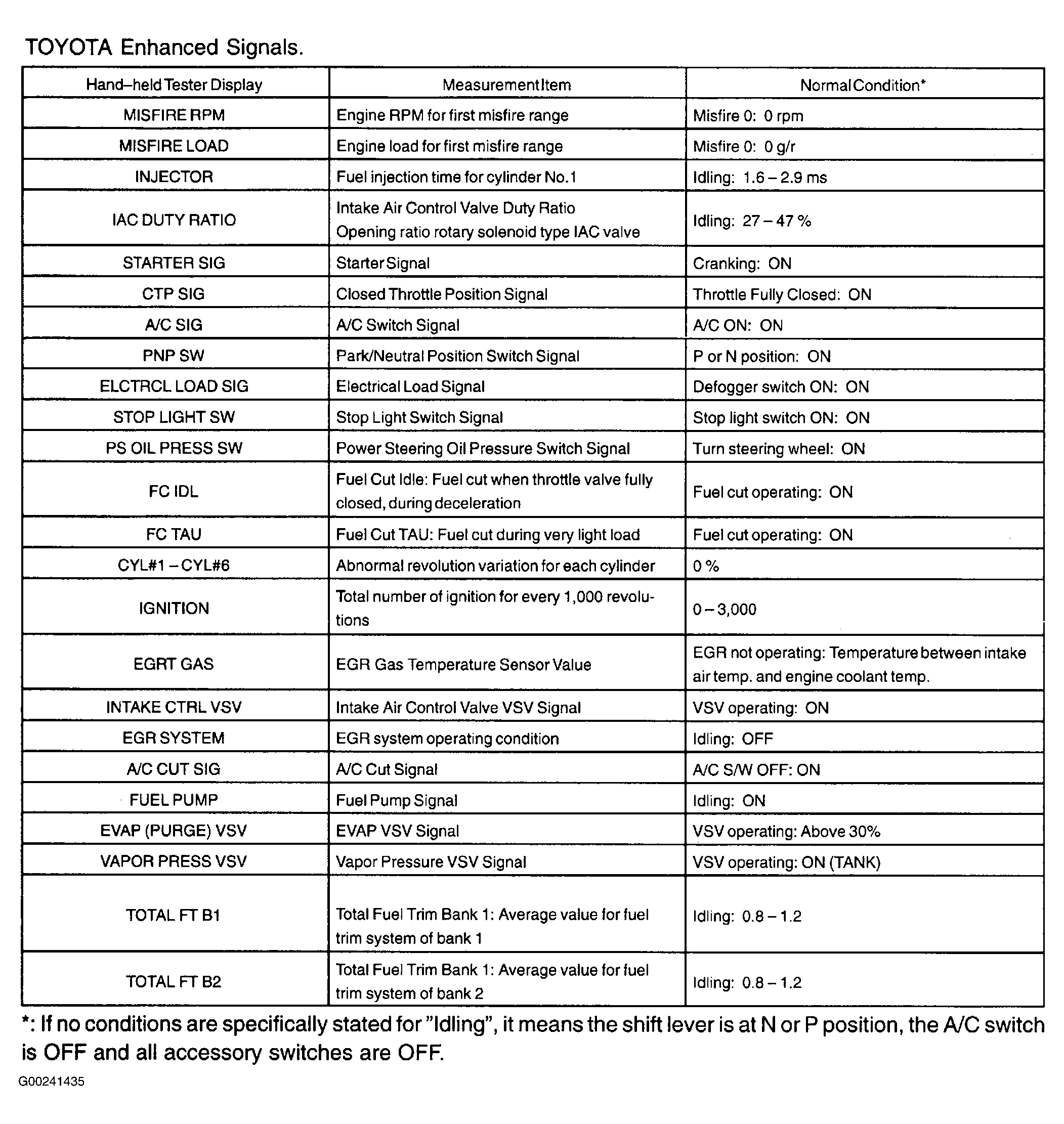

The values given below for normal condition are representative values. So, a vehicle may still be normal even it it's value varies differs from those listed here. So, do not solely depend on the normal condition here when deciding whether a part is faulty or not. For engine operating condition charts, see Fig 1 and Fig 2 .
