Fail-Safe Mode Chart

If any of the following codes is recorded, the ECM enters fail-safe mode. See Fig 1.

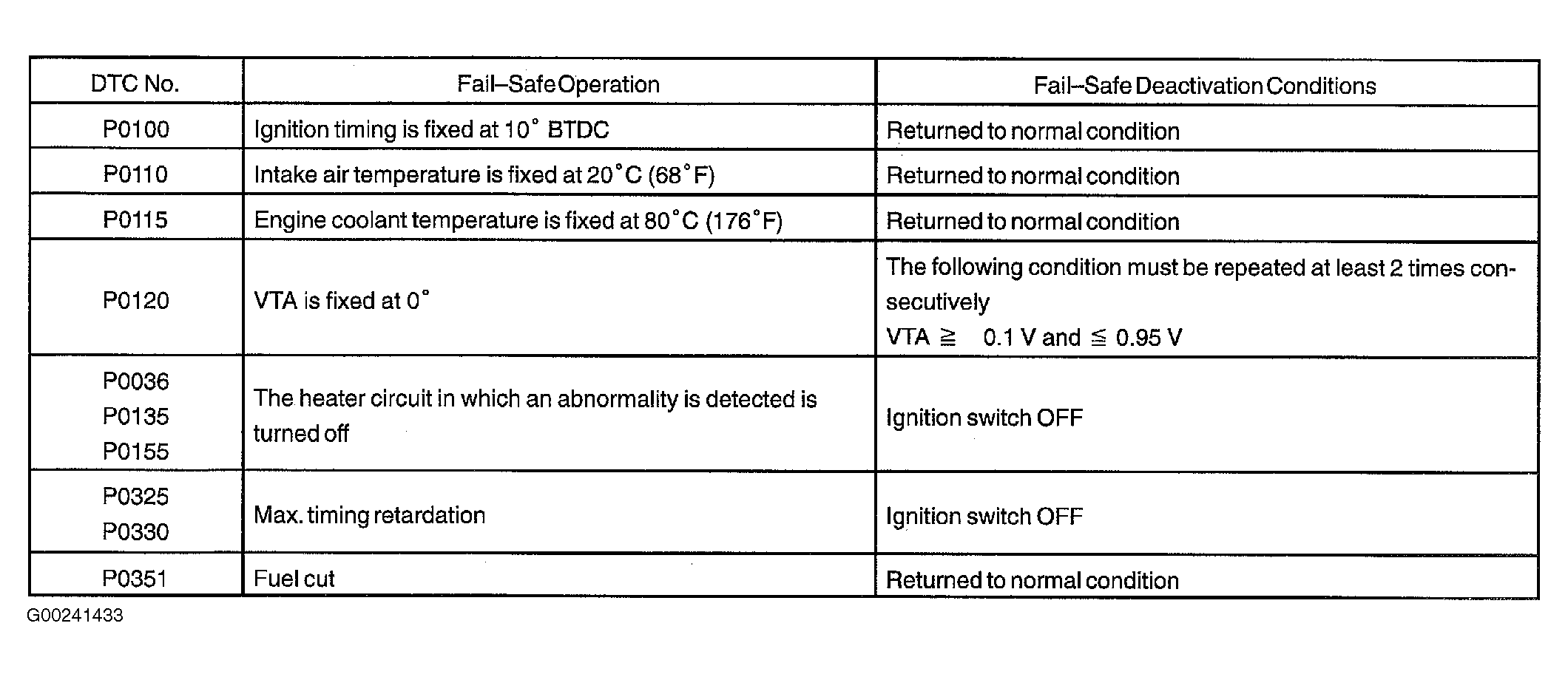

Fig 1: Identifying Fail-Safe Mode Chart
G00241433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
