Vehicle Lift And Support Locations

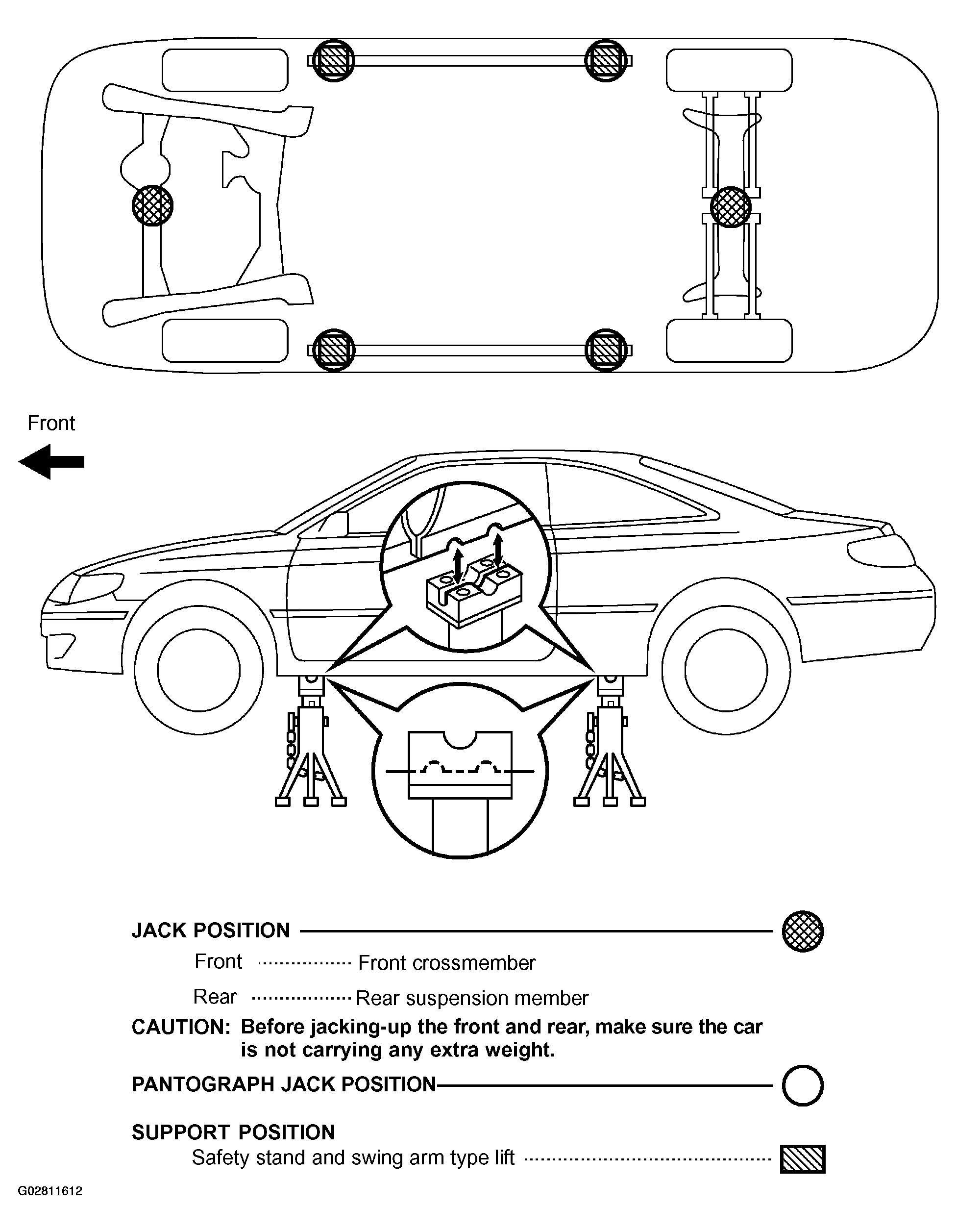

Fig 1: Identifying Vehicle Lift & Support Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

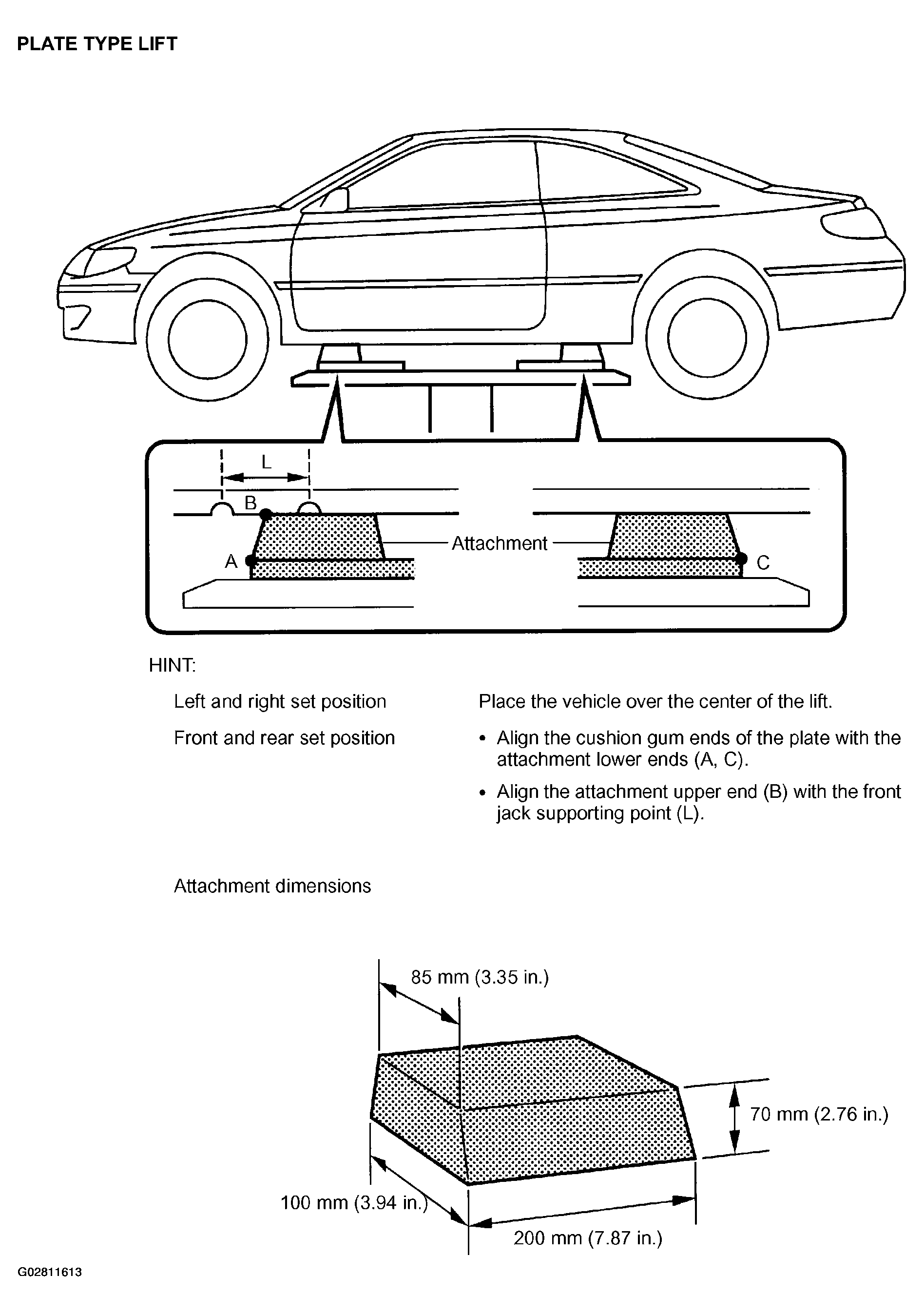

Fig 2: Placing Vehicle On Plate Type Lift

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
