Power Window Control System
›
Location
Power Window Control System: Location

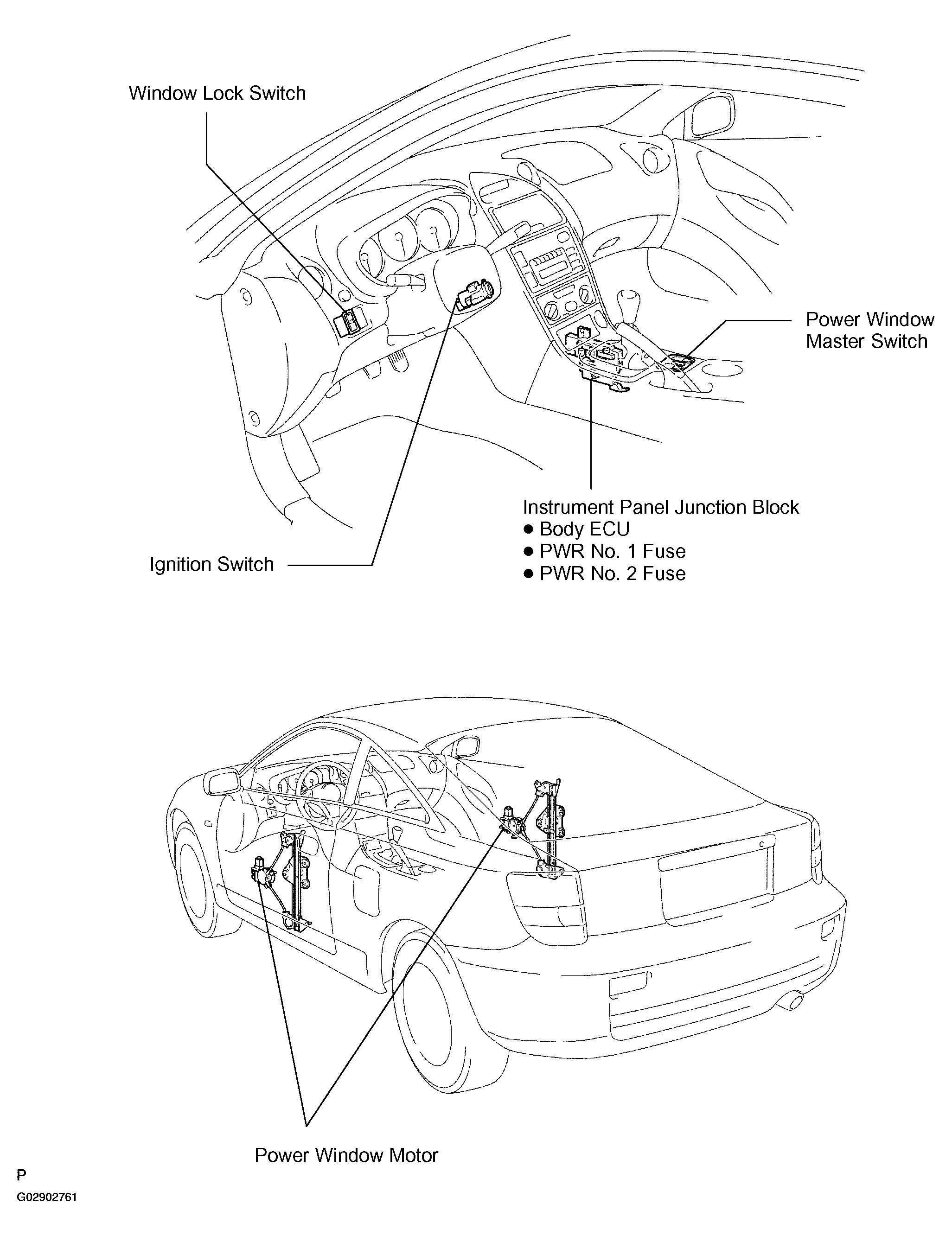

Fig 1: Identifying Power Window Control System Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
