Rear Brake Speed Sensor: Components

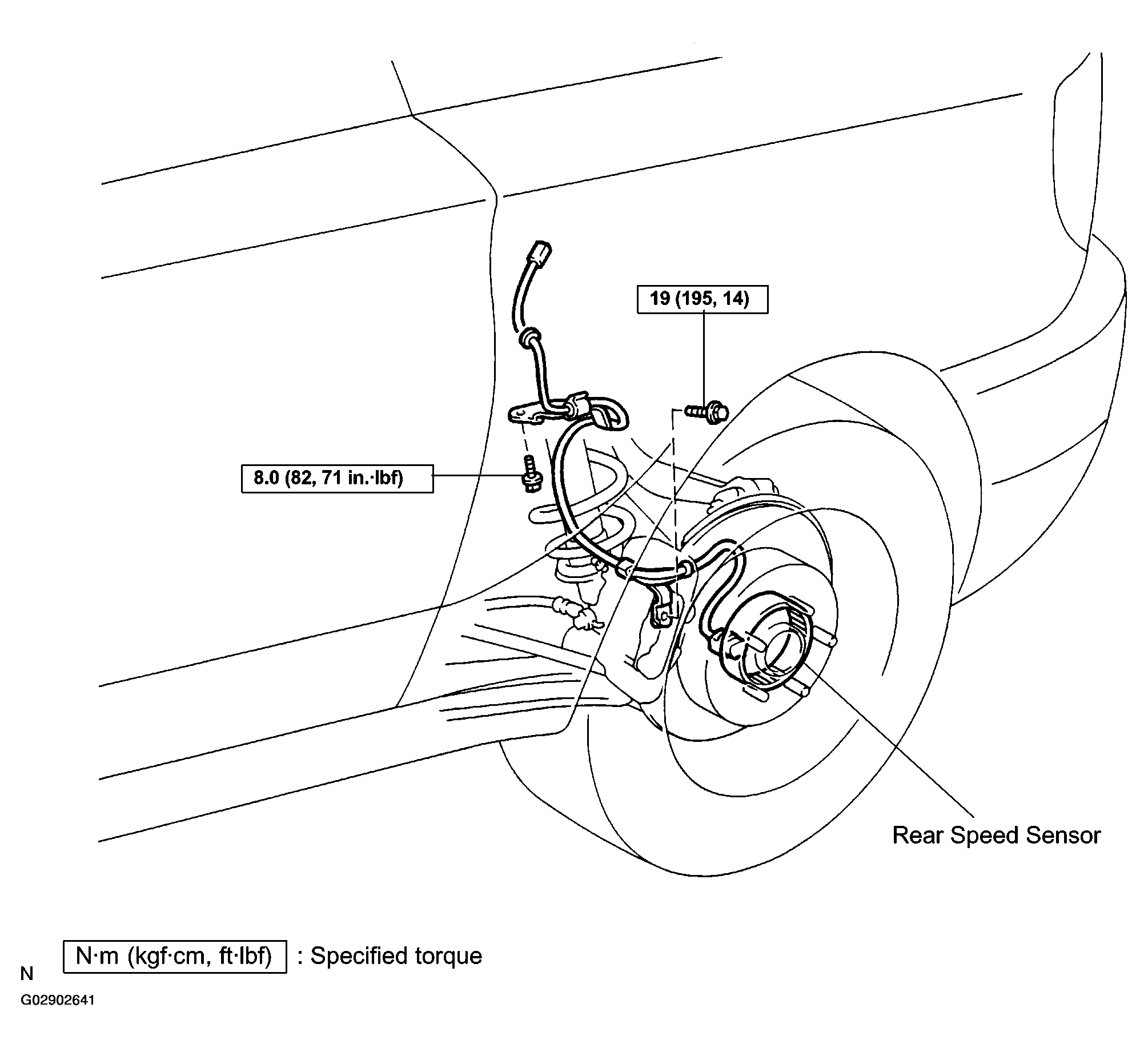

Fig 1: Locating Rear Speed Sensor Components

G02902641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
