Active Test

Performing ACTIVE TEST using hand-held tester allows relay, vacuum switching valve (VSV), actuator and so on to operate without parts removal. Performing ACTIVE TEST as a first step of trouble shooting is one method to shorten labor time. It is possible to display DATA LIST during ACTIVE TEST.

1. Warm up engine and turn ignition switch OFF.
2. Connect hand-held tester to DLC3. See Figure.
3. Turn ignition switch ON. According to display on tester, perform ACTIVE TEST. See Fig 1.

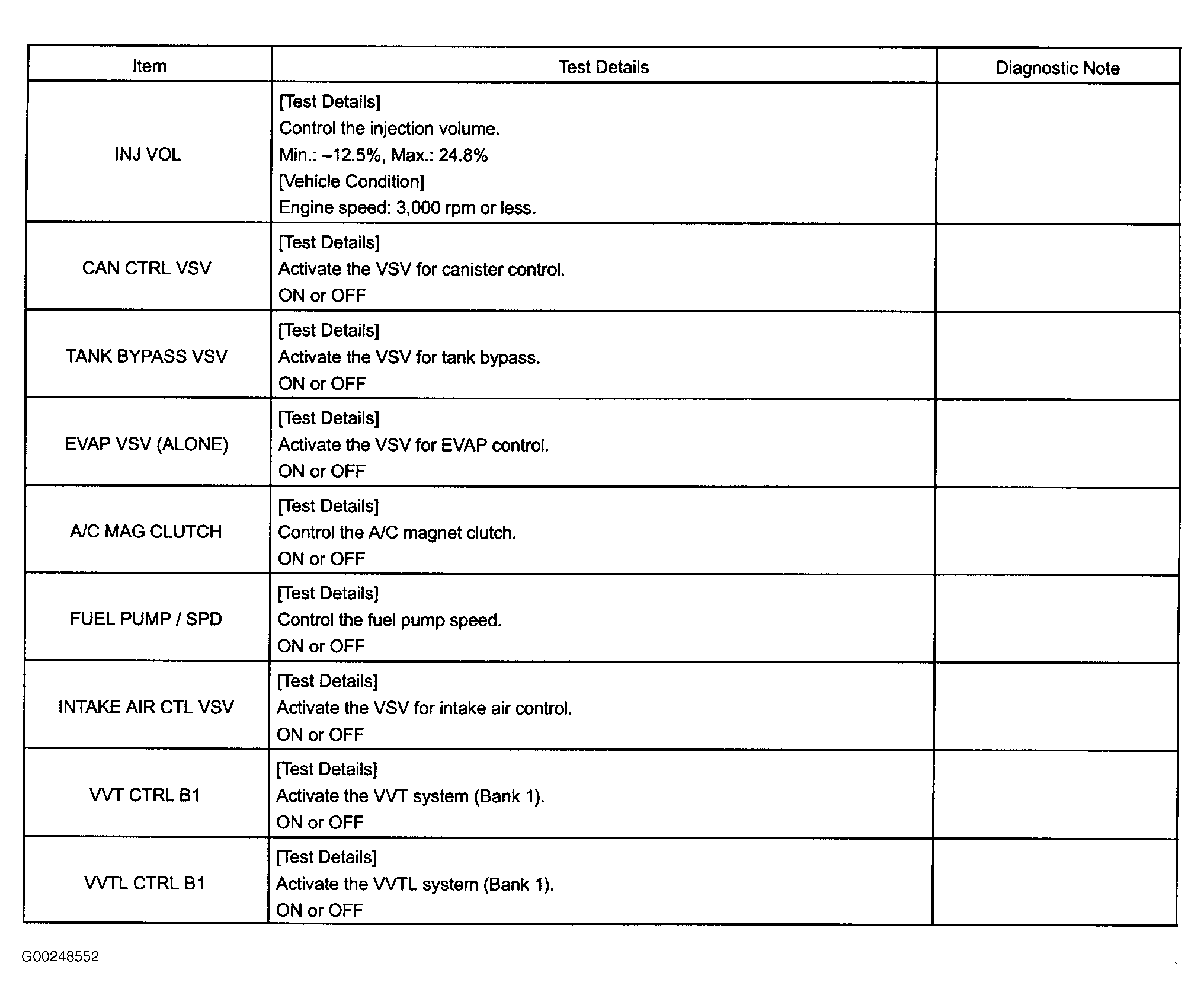

Fig 1: Identifying ACTIVE TEST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
