Vehicle Lift And Support Locations

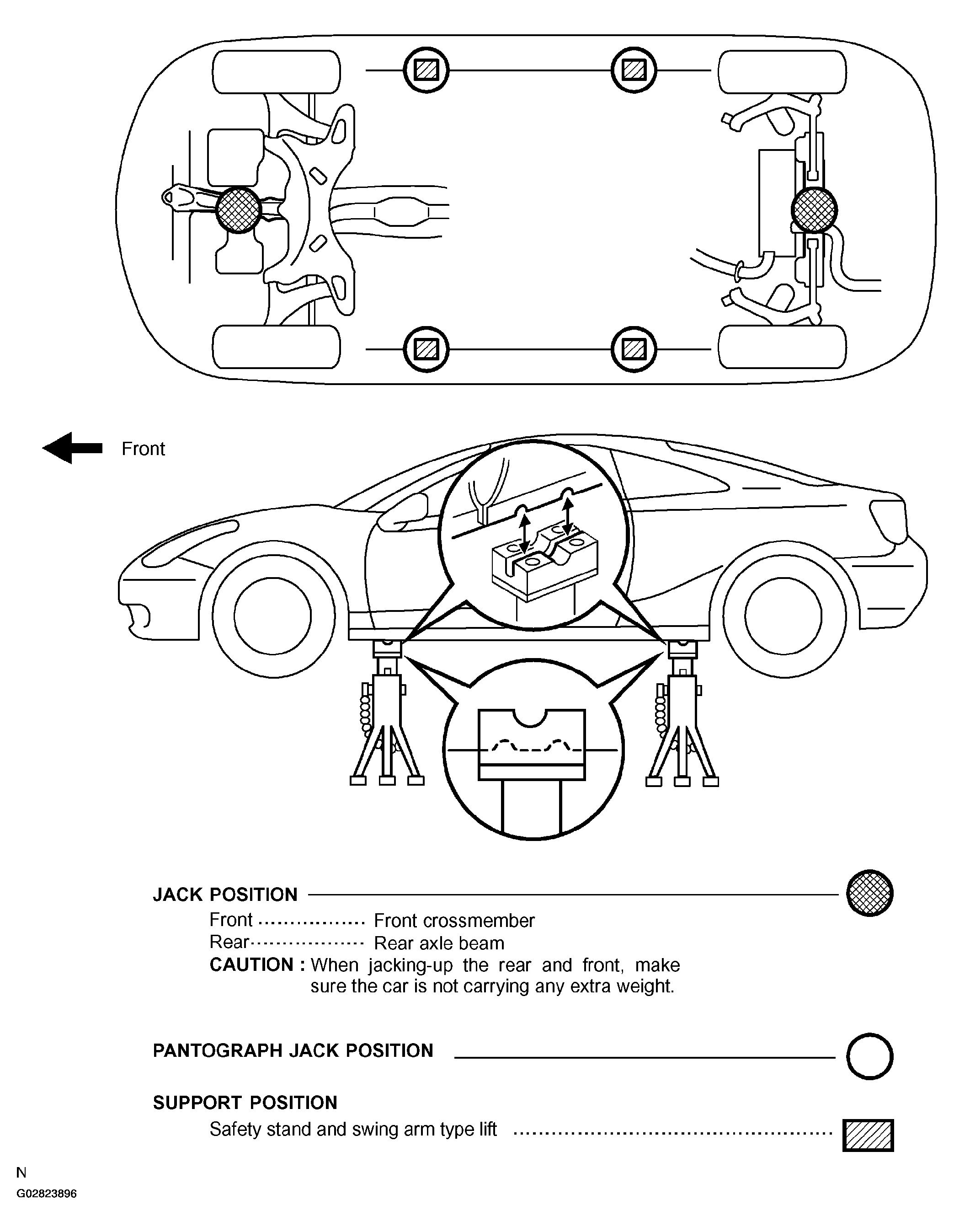

Fig 1: Identifying Vehicle Lift & Support Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

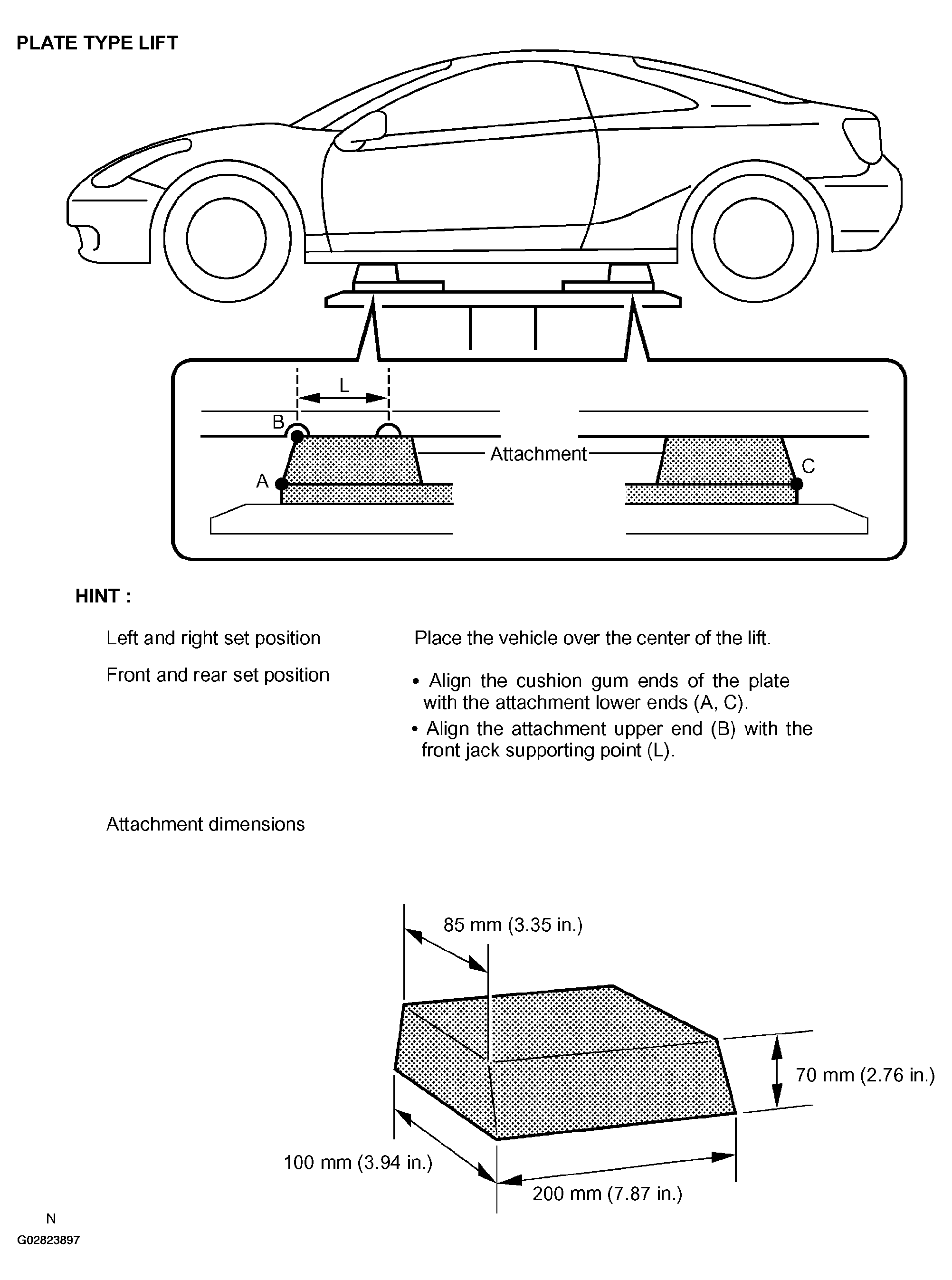

Fig 2: Identifying Vehicle Lift & Support Locations (Plate Type Lift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
