Transmission Control System Electronic Controlled (ECT) - Diagnostics
›
Location
Transmission Control System Electronic Controlled (ECT) - Diagnostics: Location

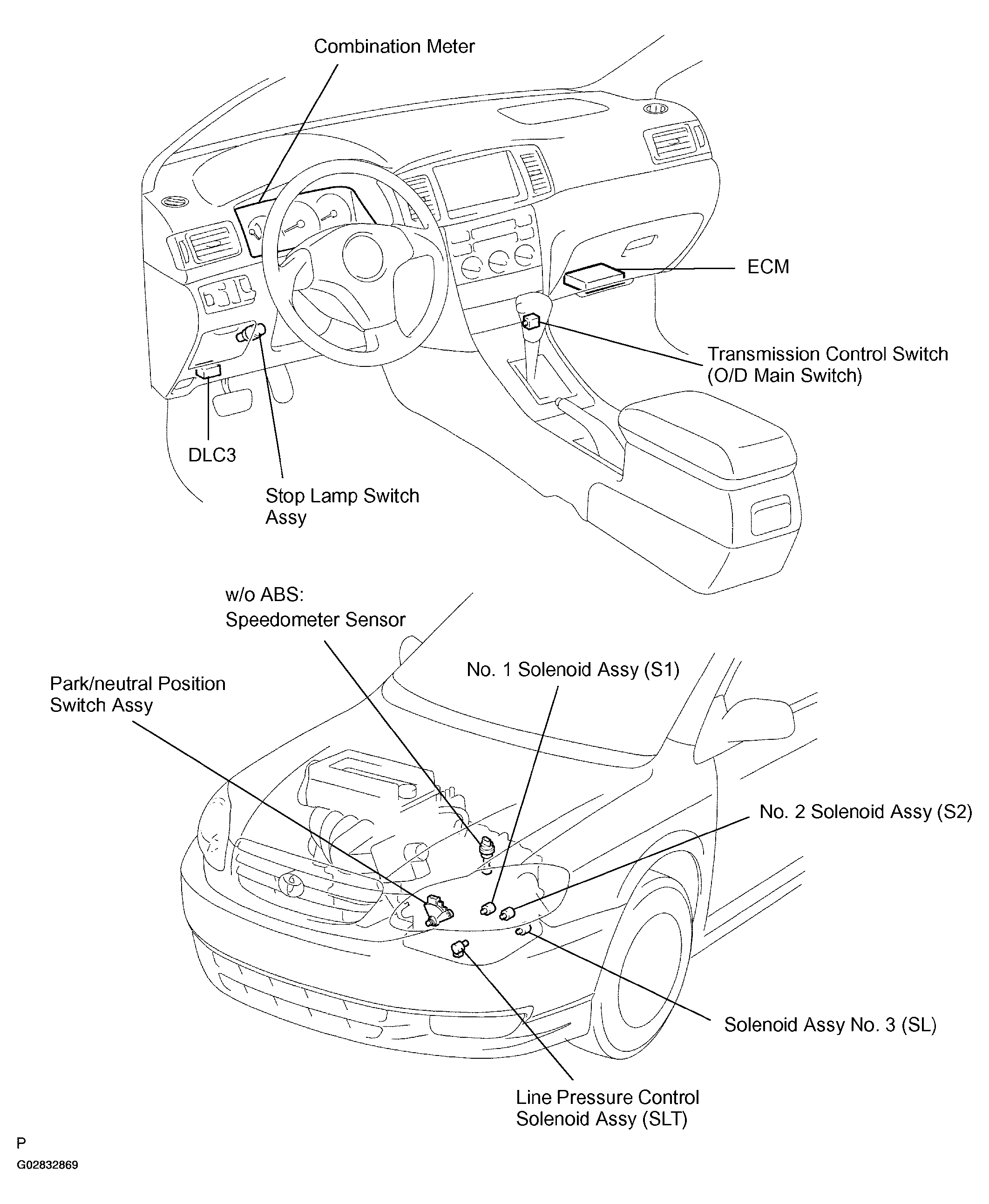

Fig 1: Identifying ECT Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
