Inner Rear View Mirror Assembly: Inspection

1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2.
2. Attach black colored tape to the forward sensor to prevent it from sensing.
3. Light up the mirror with an electric light, and check that the mirror surface changes from "bright" to "dark".

If the operation is not as specified, replace the inner mirror assembly.

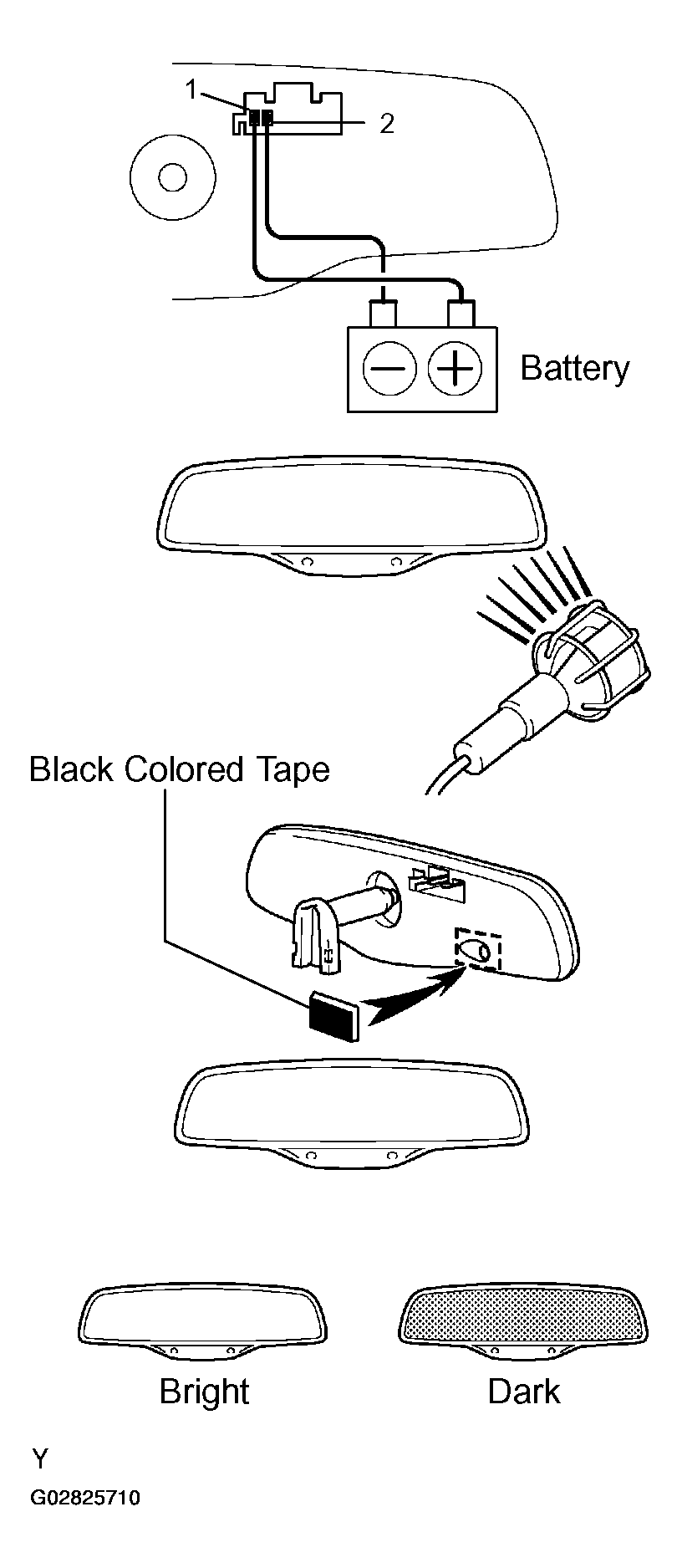

Fig 1: Inspecting The Electro Chromic Inner Mirror Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
