Rear Door: Components

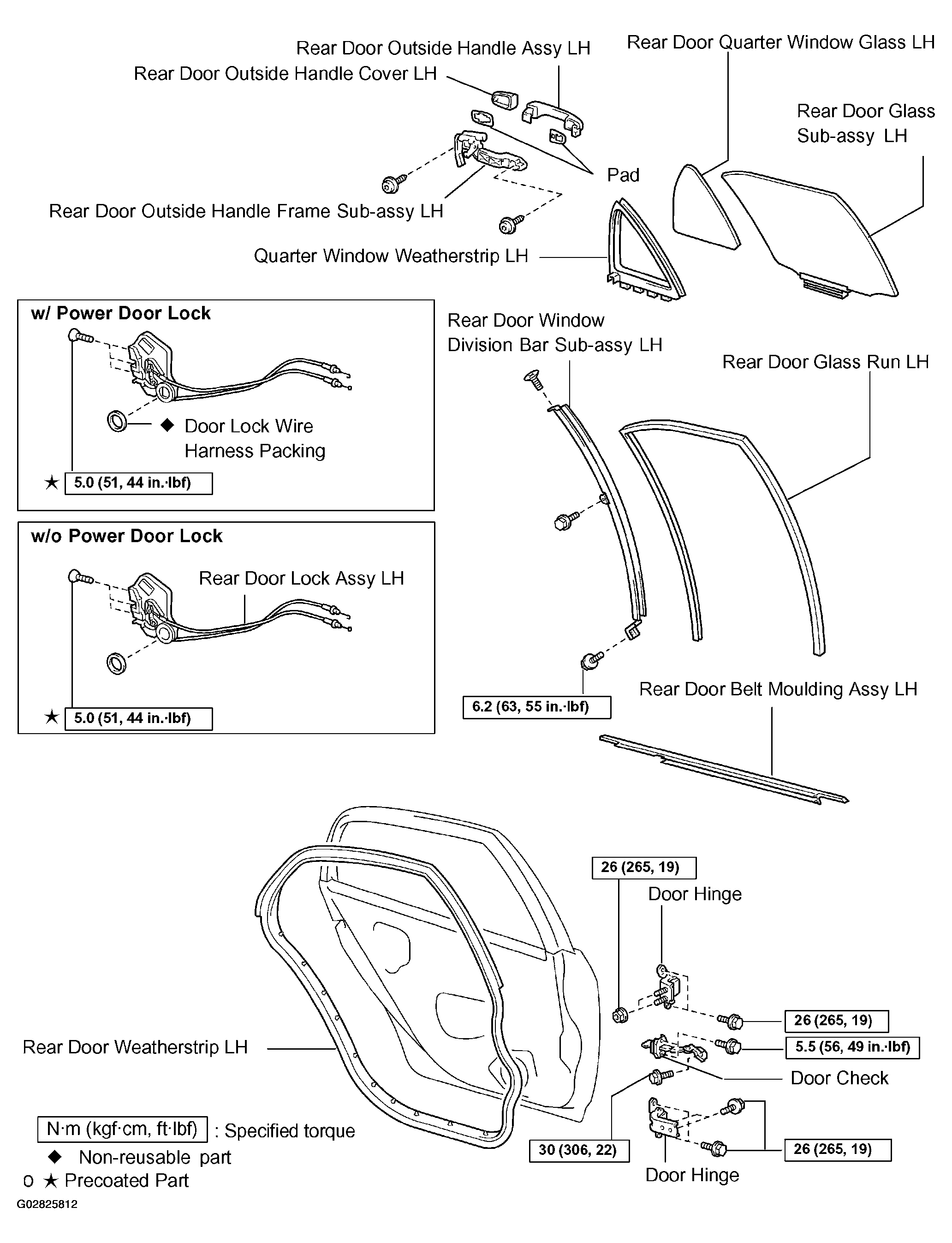

Fig 1: Rear Replacement Components With Torque Specifications (1 Of 2)
G02825812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

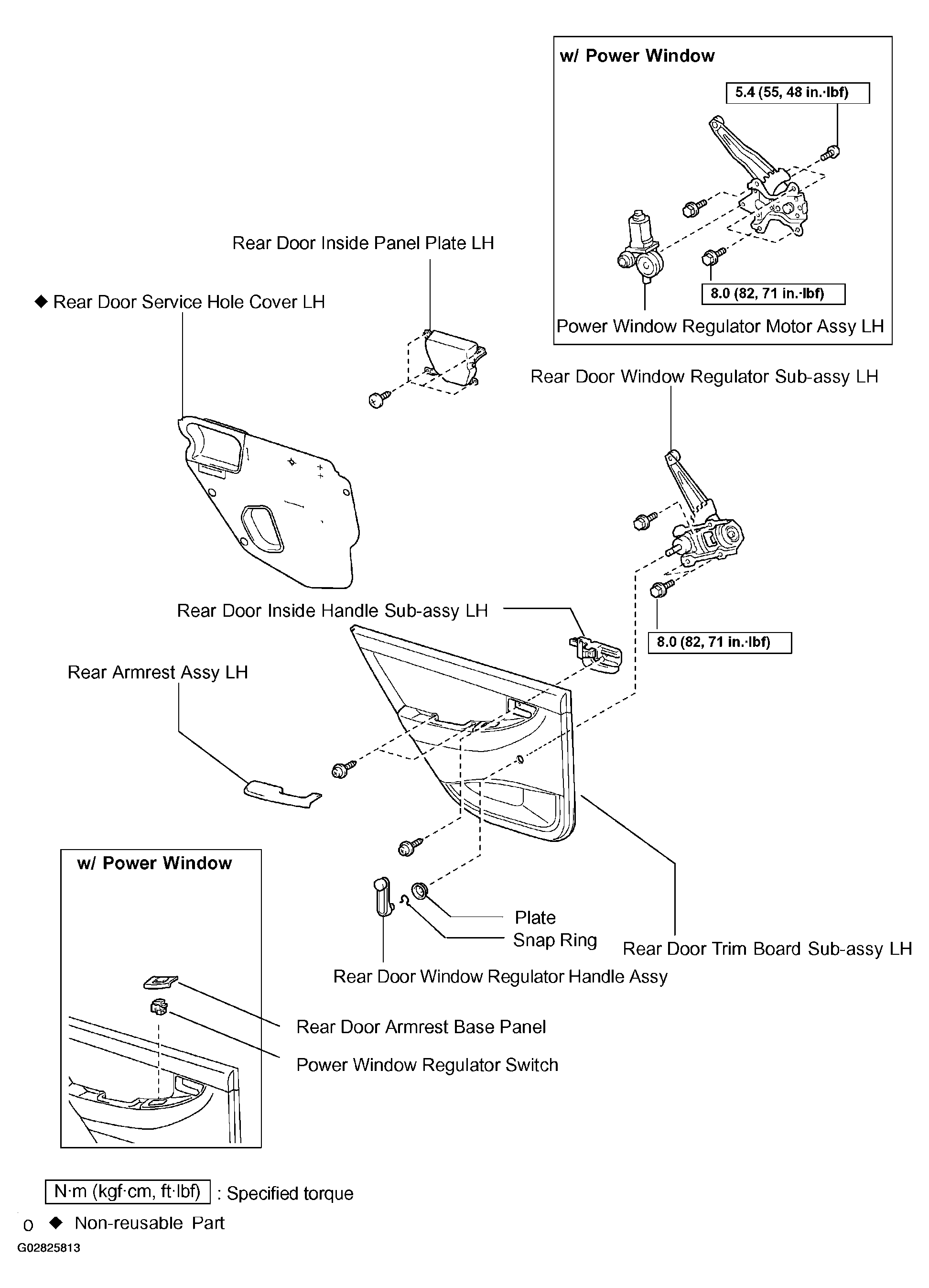

Fig 2: Rear Replacement Components With Torque Specifications (2 Of 2)
G02825813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
