Section 249 (Wheel Alignment Specifications & Adjustment Procedures): Specifications

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Use illustration for front wheel alignment specifications. See Fig 1

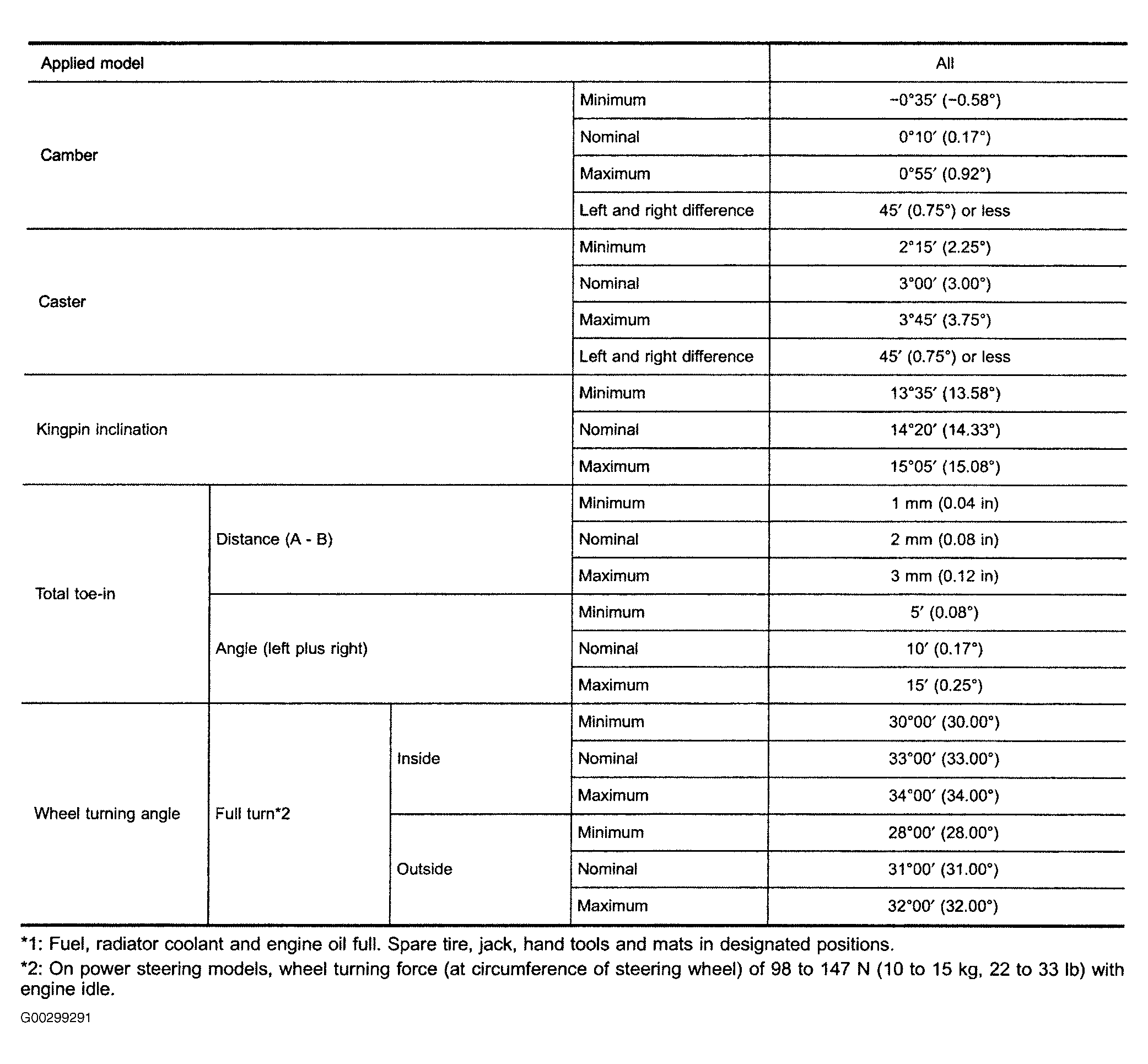

Fig 1: Front Wheel Alignment Specifications (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.
