Brake Pedal Sub-Assembly: Components

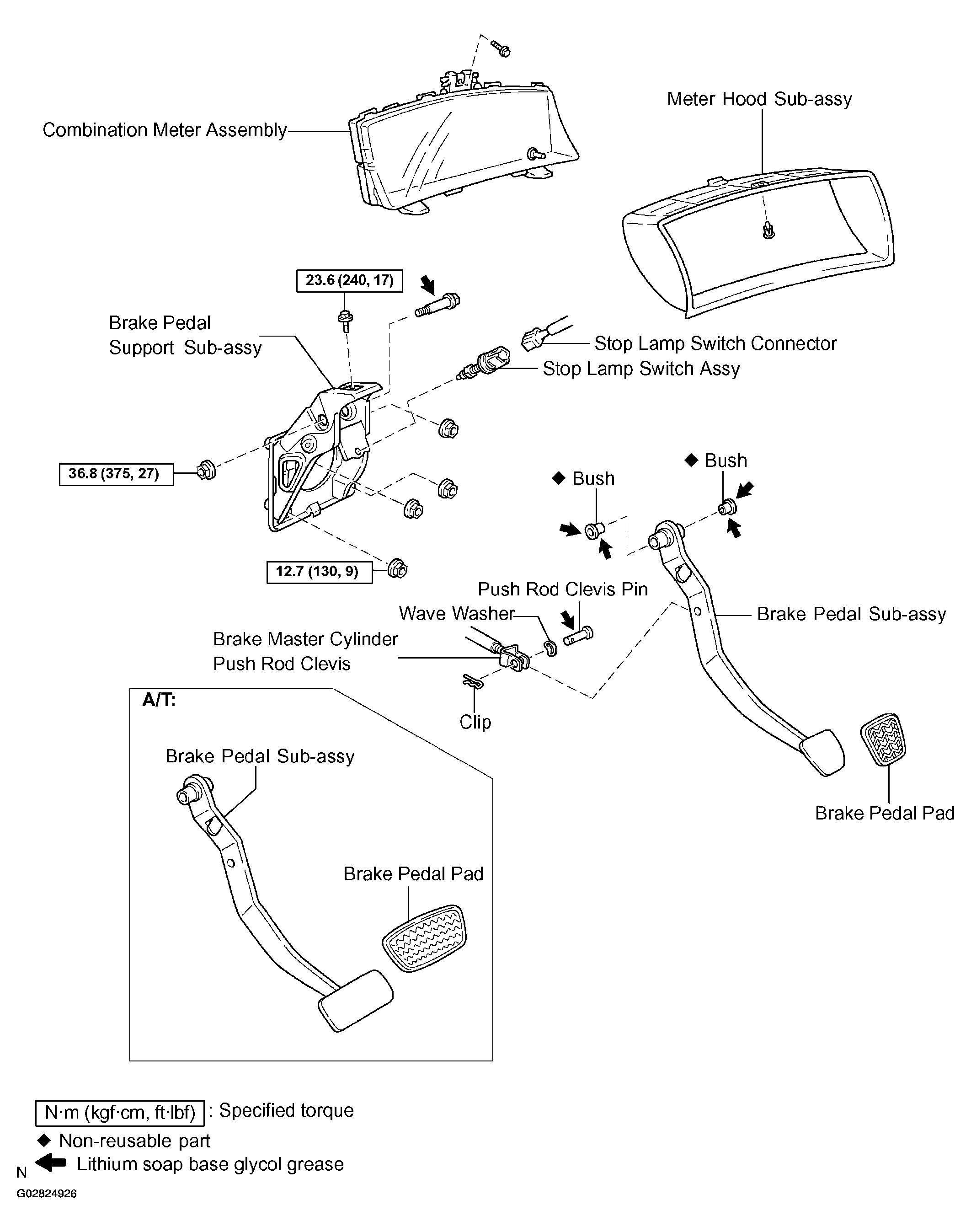

Fig 1: Identifying Brake Pedal Sub-Assy Components
G02824926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
