Engine Exhaust Assembly: Components

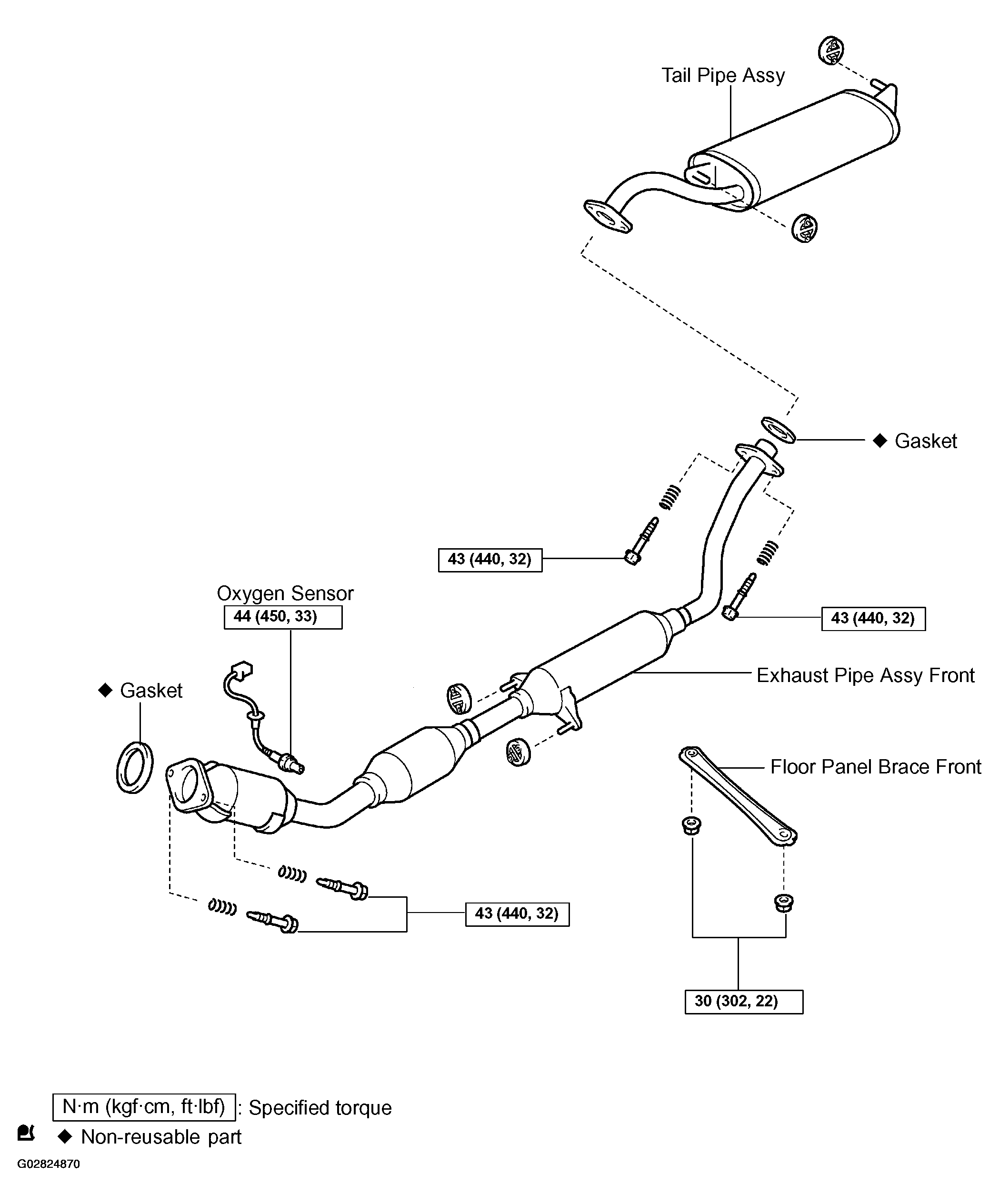

Fig 1: Identifying Exhaust Pipe Components
G02824870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
