Section 520 (Instrument Panel/Meter)
›
Instrument Panel/Meter
›
Components
Instrument Panel/Meter: Components
WARNING:
This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

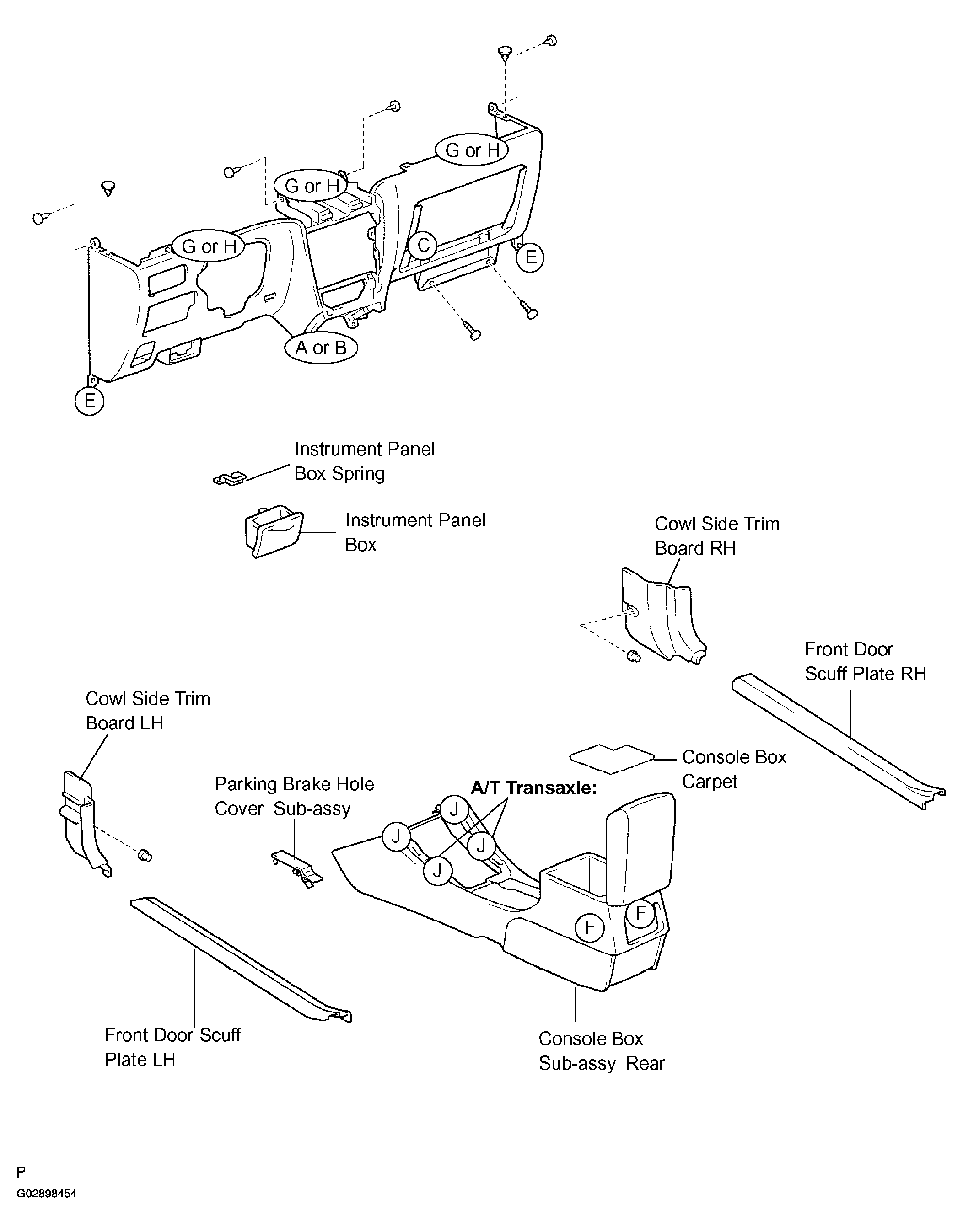

Fig 1: Identifying Instrument Panel/Meter Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

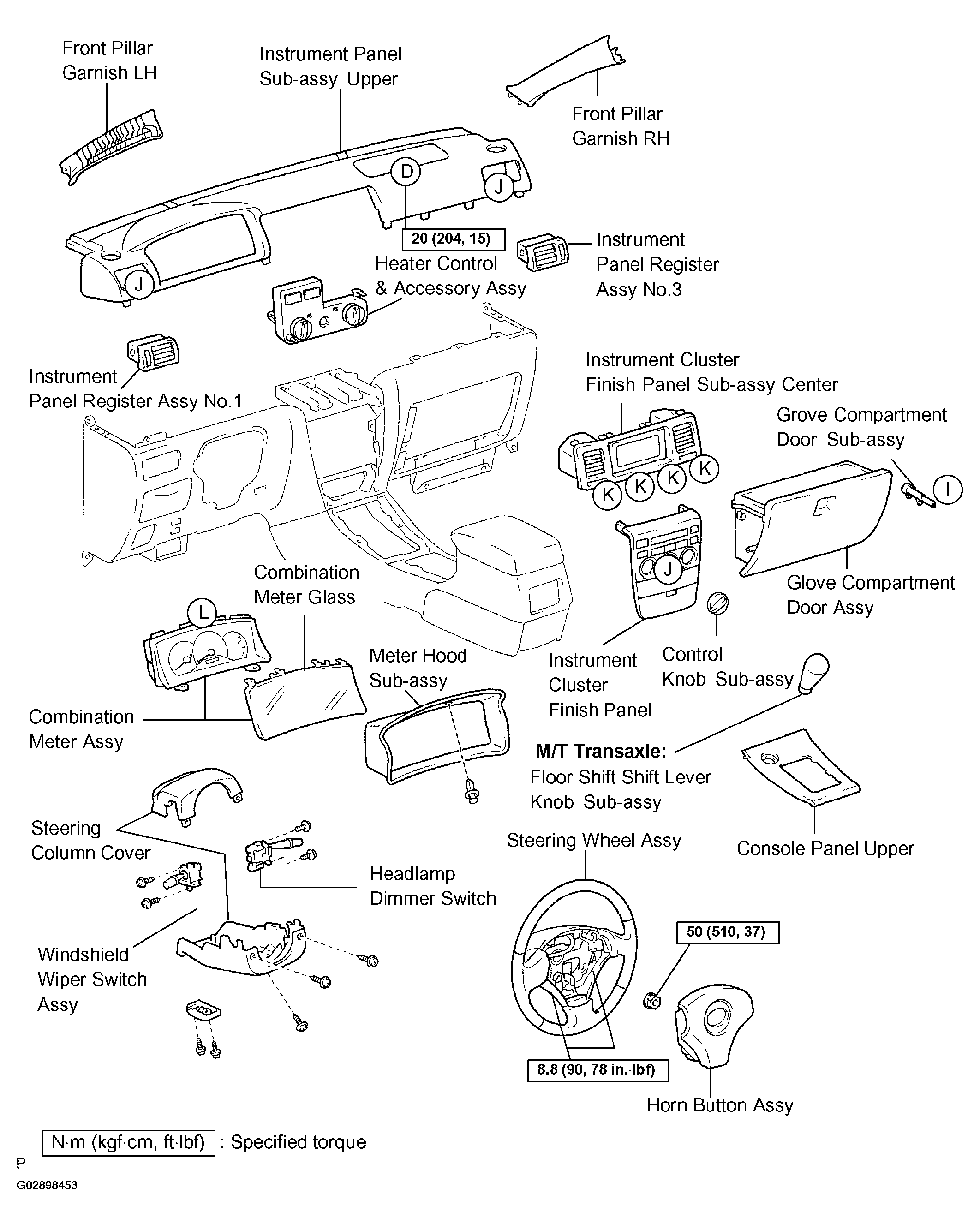

Fig 2: Exploded View Of Instrument Panel/Meter Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
