Quarter Window Glass
›
Components
Quarter Window Glass: Components

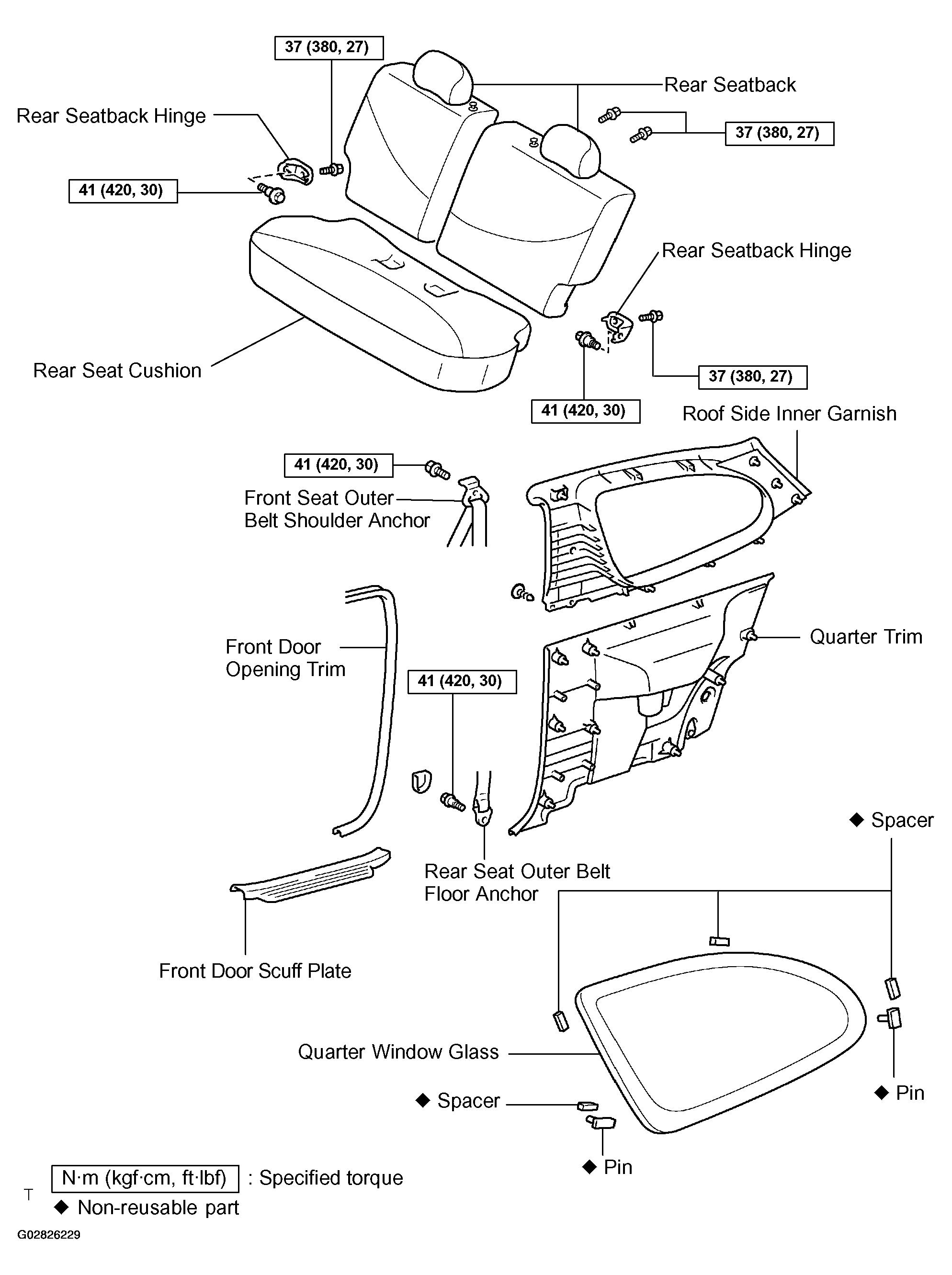

Fig 1: Quarter Window Glass Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
