ECHO 4D Sedan, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission Shift Interlock Systems
›
Component Locations
Component Locations

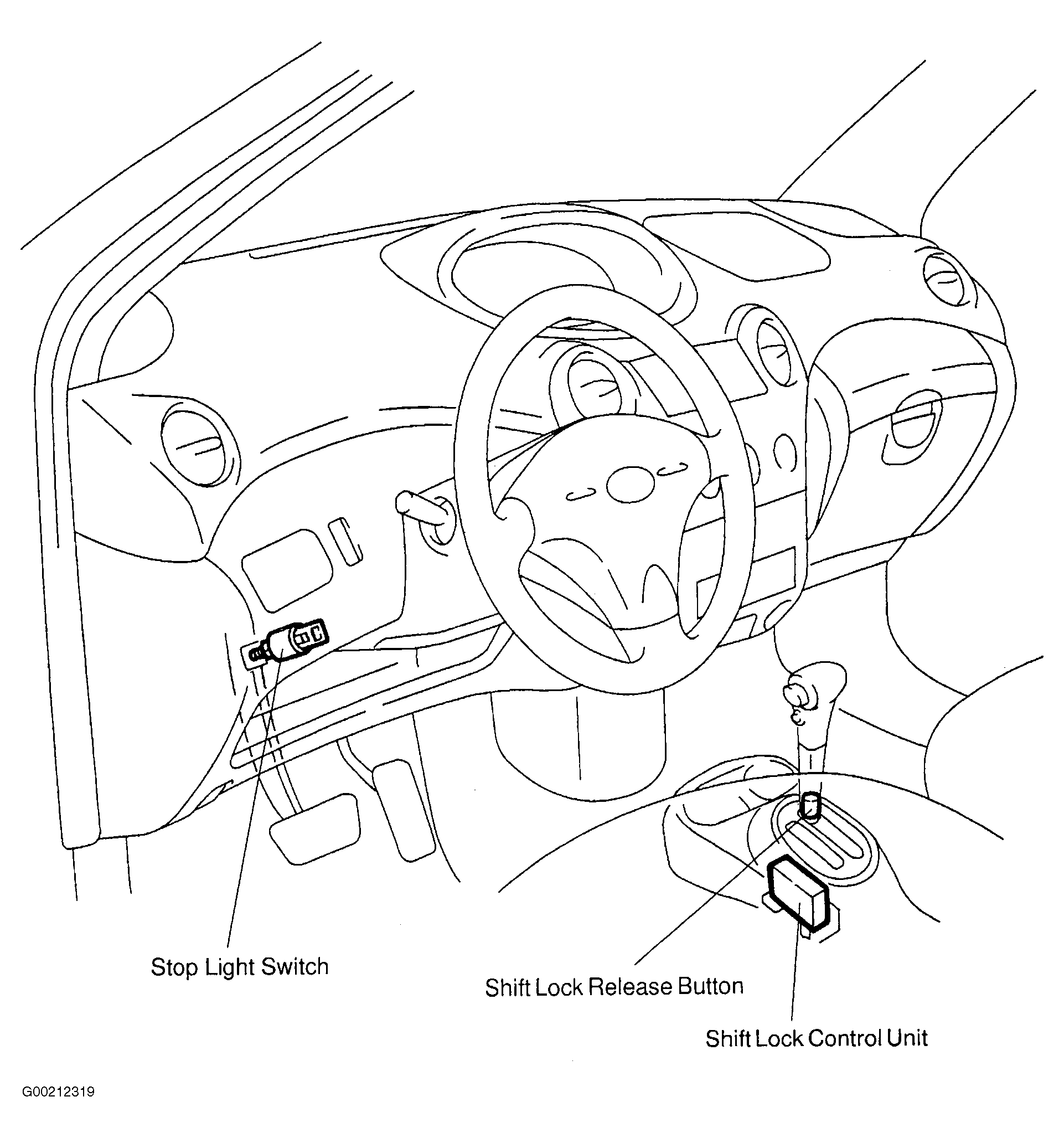

Fig 1: Locating Shift Lock System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

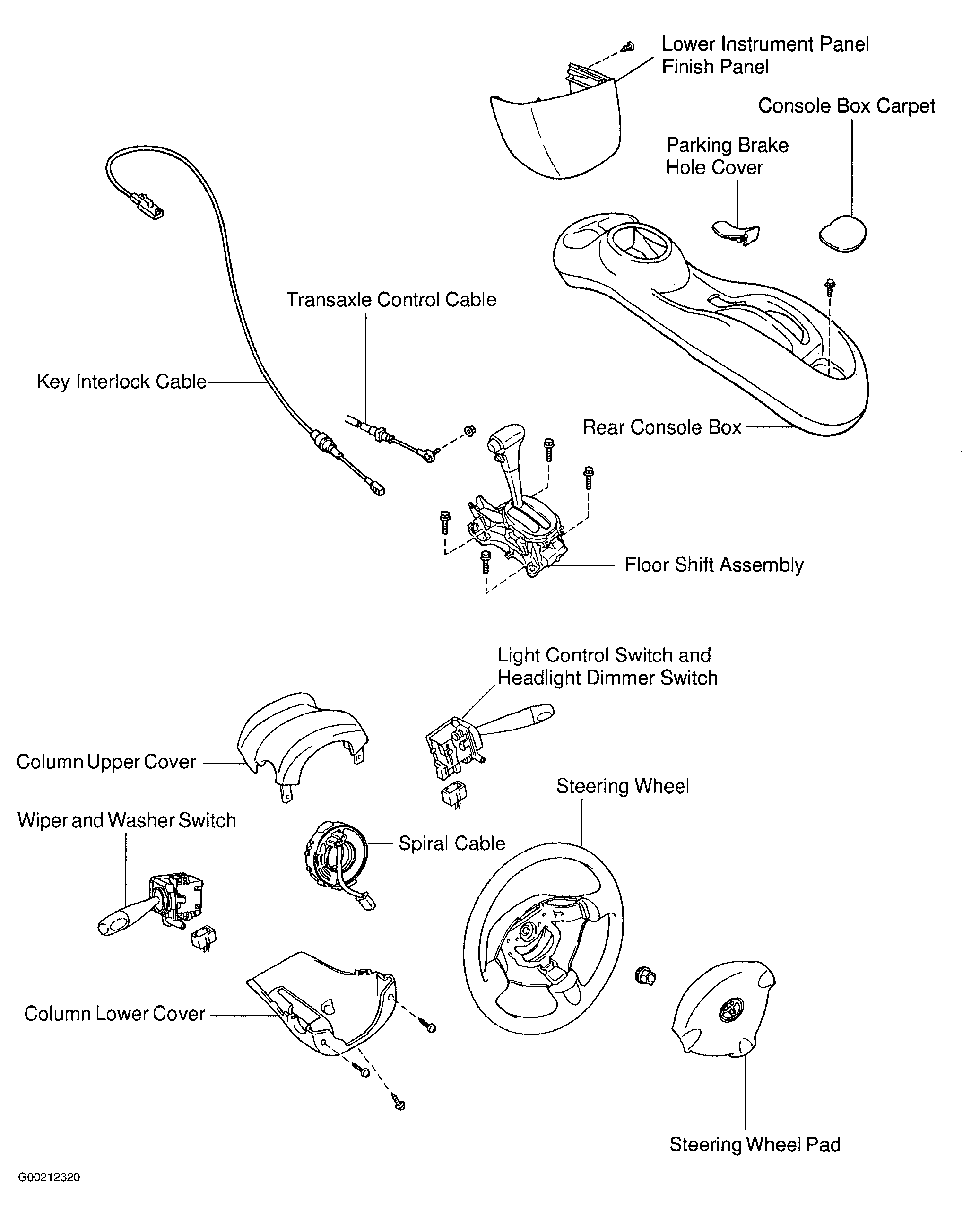

Fig 2: Exploded View Of Center Console & Steering Column Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

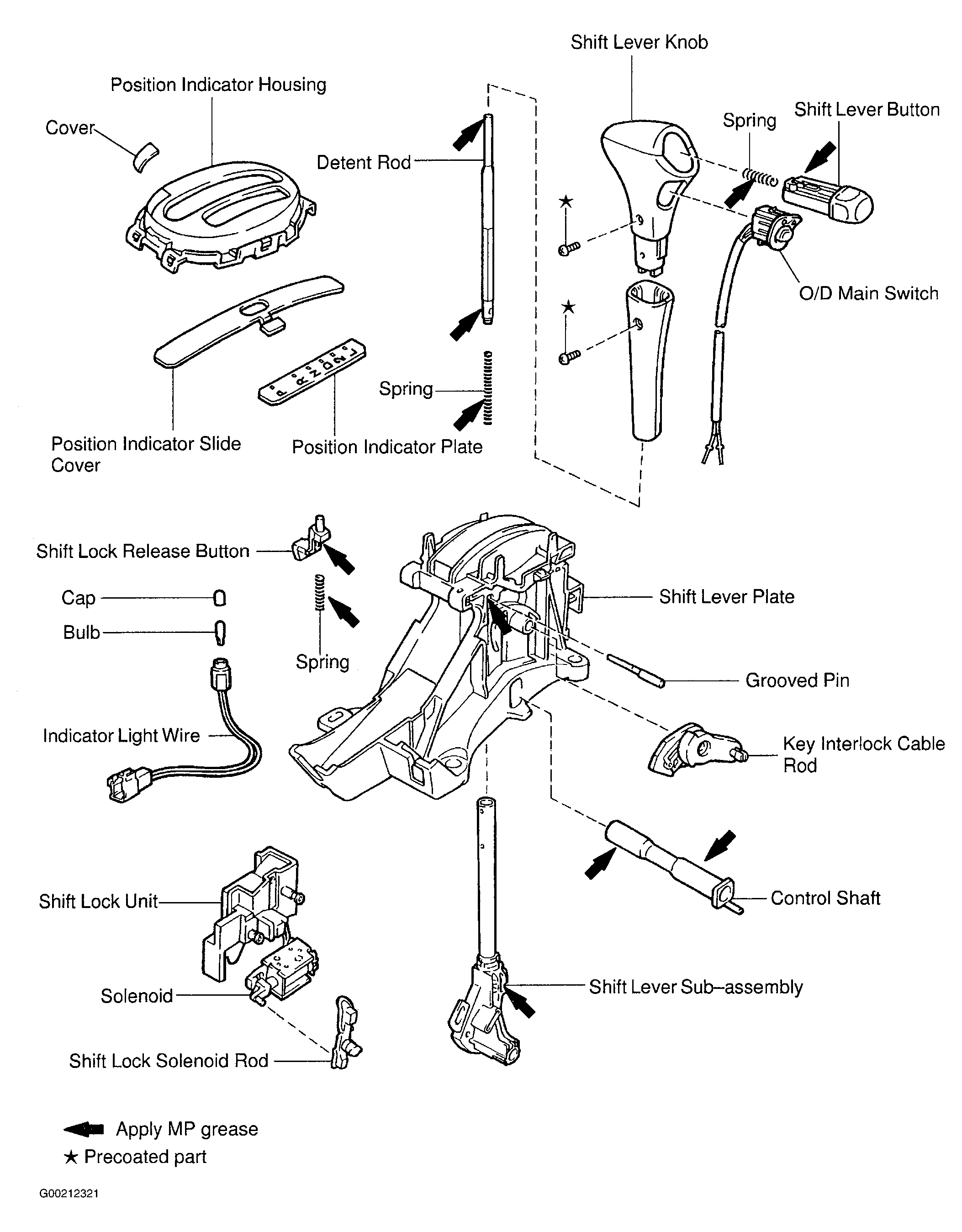

Fig 3: Exploded View Of Floor Shift Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
