Section 249 (Suspension Rear): Description
WARNING: This page is about a different car, the 2004 Toyota Avalon, 2003 Toyota Avalon, and 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

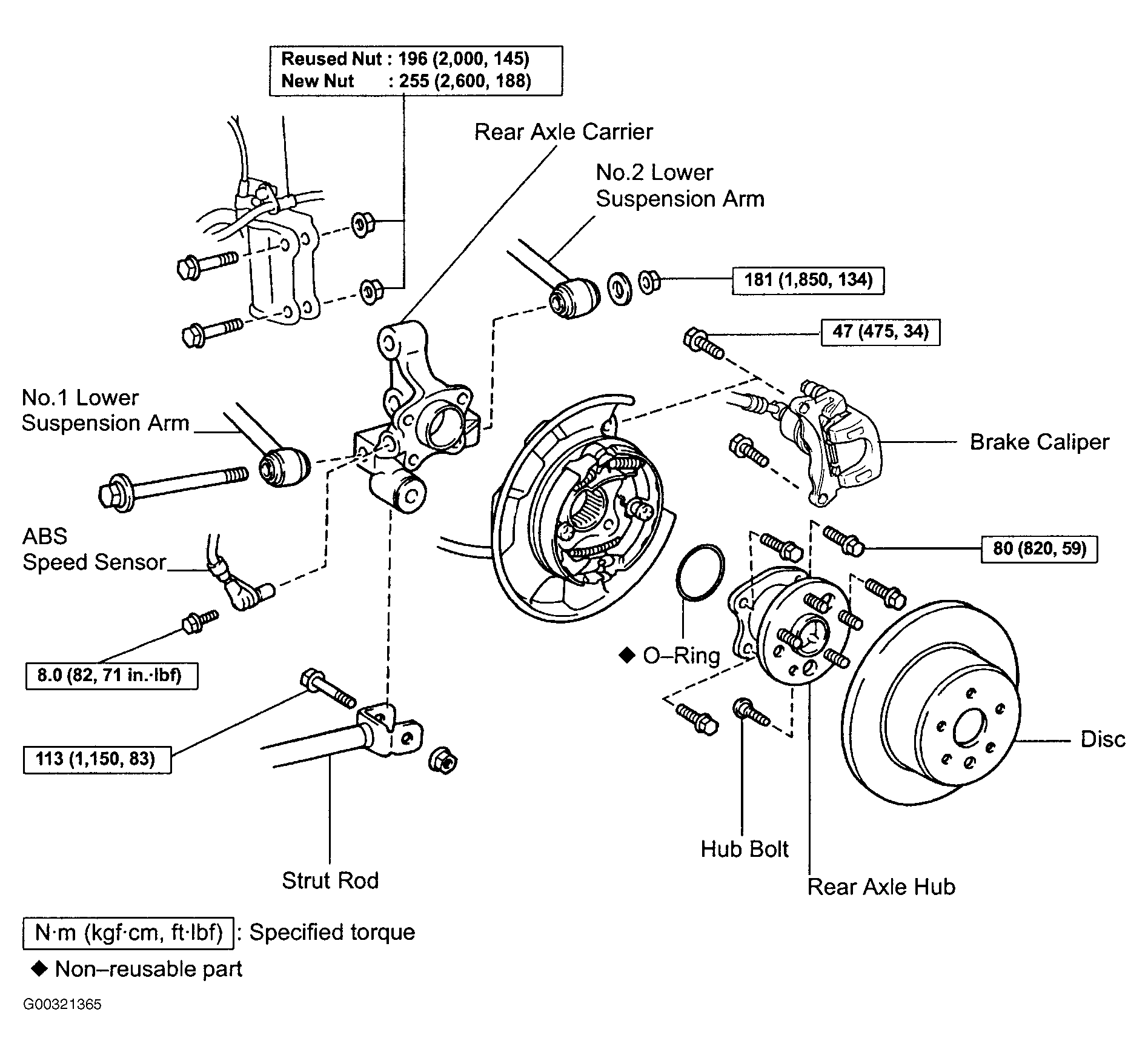

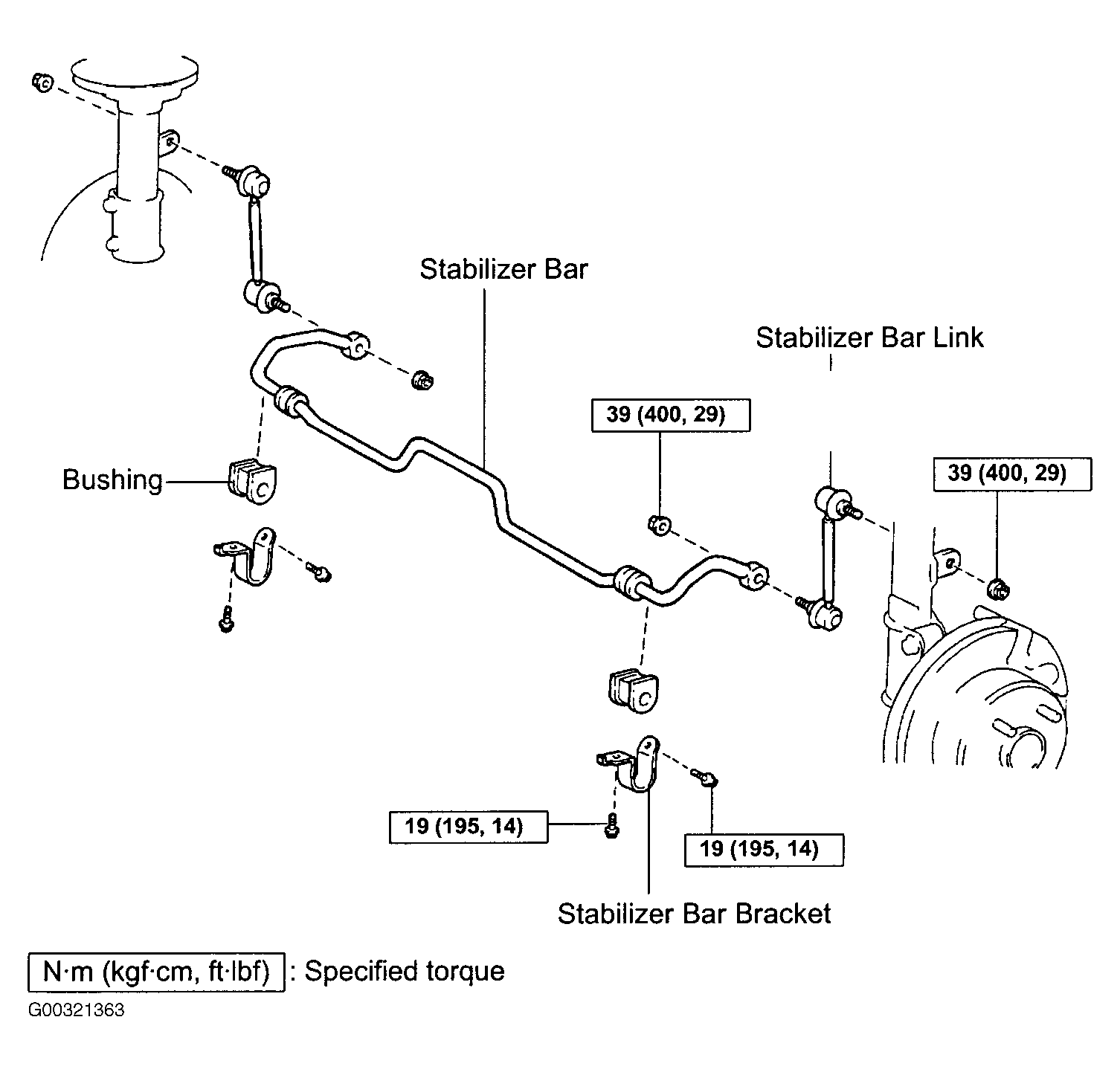

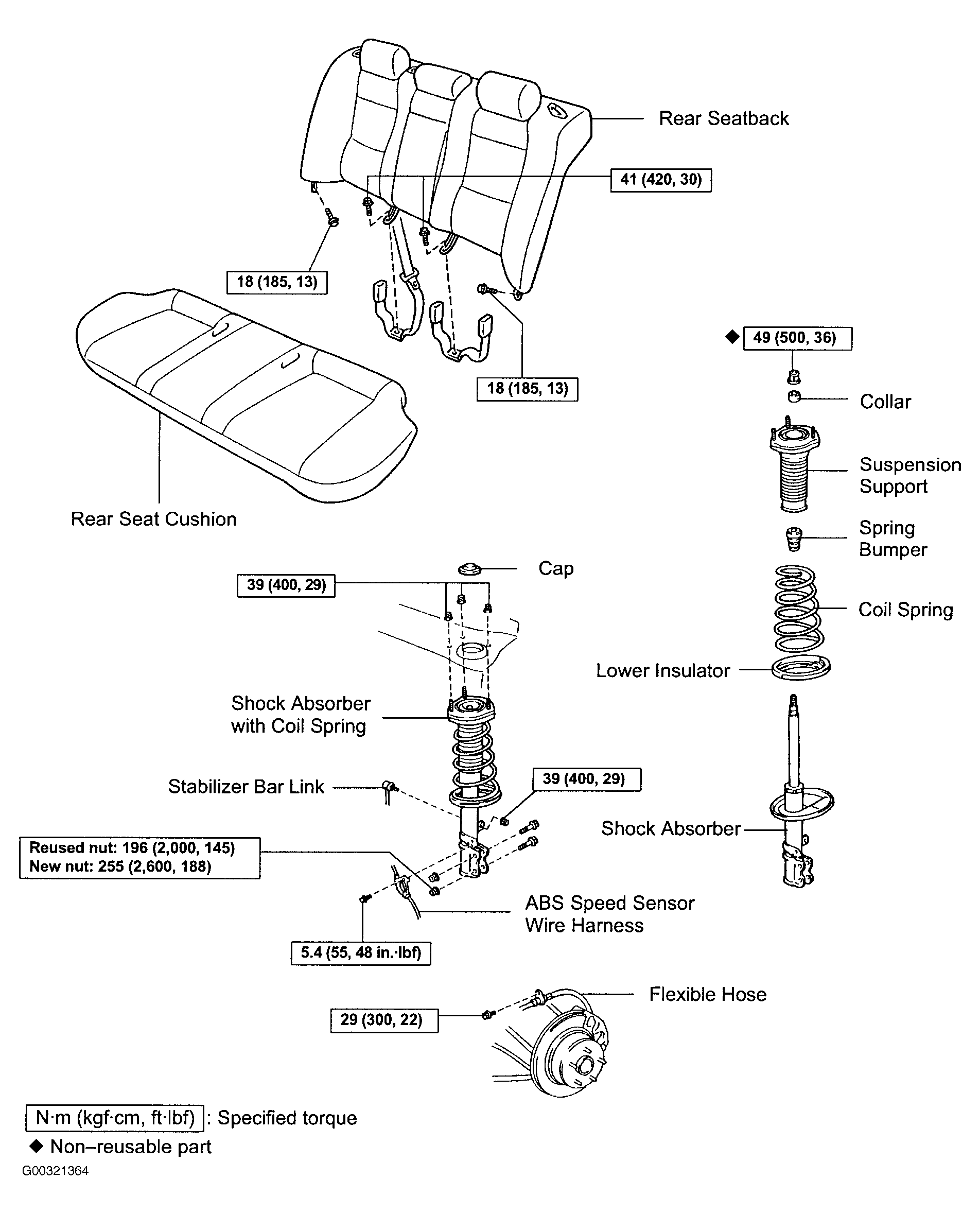

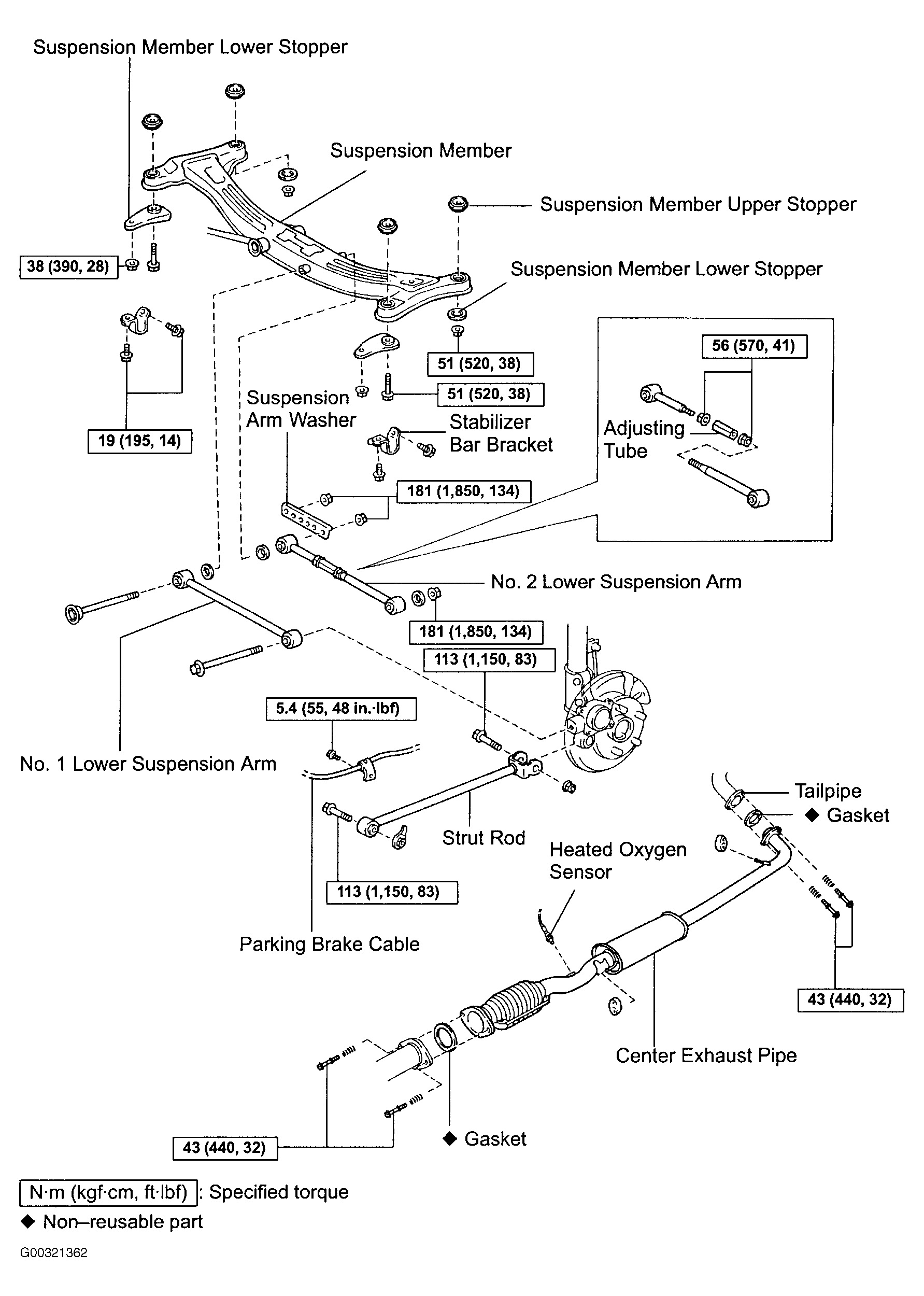

On Avalon, models, rear suspension components are strut assemblies or shock absorbers with coil springs, connected between rear axle carrier or lower suspension arm, and vehicle body. Wheel bearings and axle hub is a one piece assembly, bolted to rear axle carrier. See Fig 1-Fig 4 .
