Windows Cannot Be Operated Via Regulator Switch At Each Seat
›
Wiring Diagram
Windows Cannot Be Operated Via Regulator Switch At Each Seat: Wiring Diagram

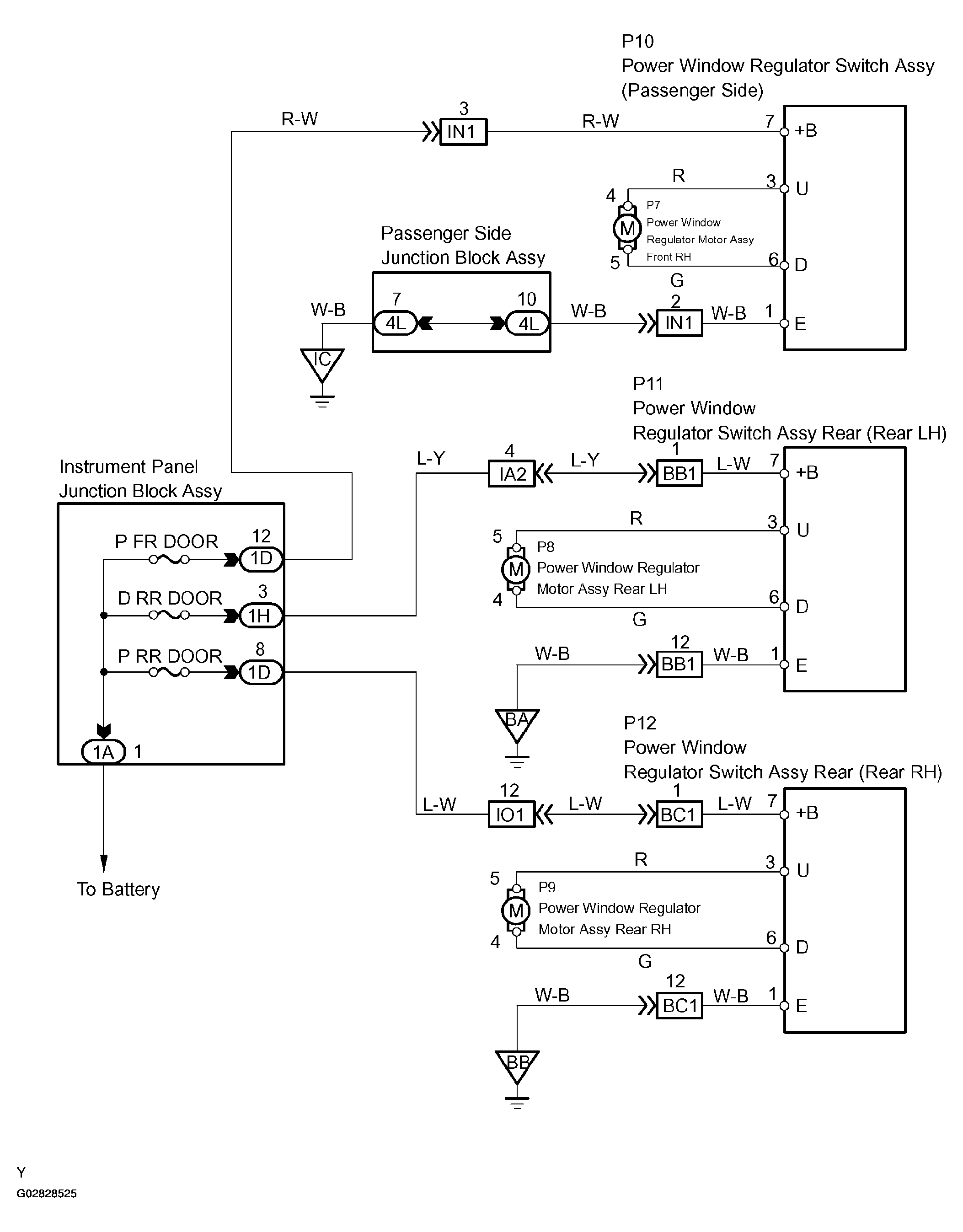

Fig 1: Front & Rear Passenger Windows - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
