Section 397 (Instrument Panel/Meter): Components

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

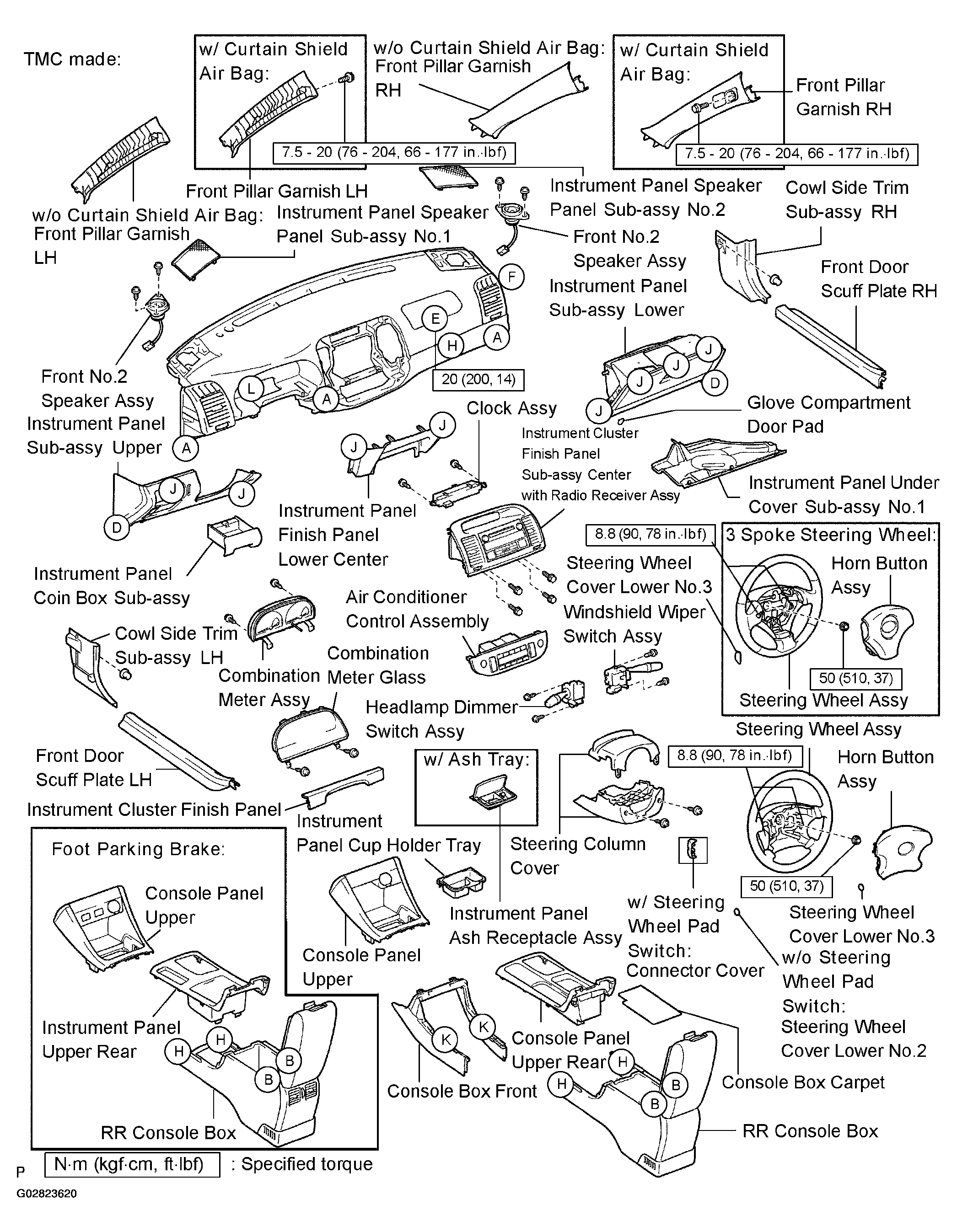

Fig 1: Identifying Instrument Panel/Meter Components - TMC Made

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

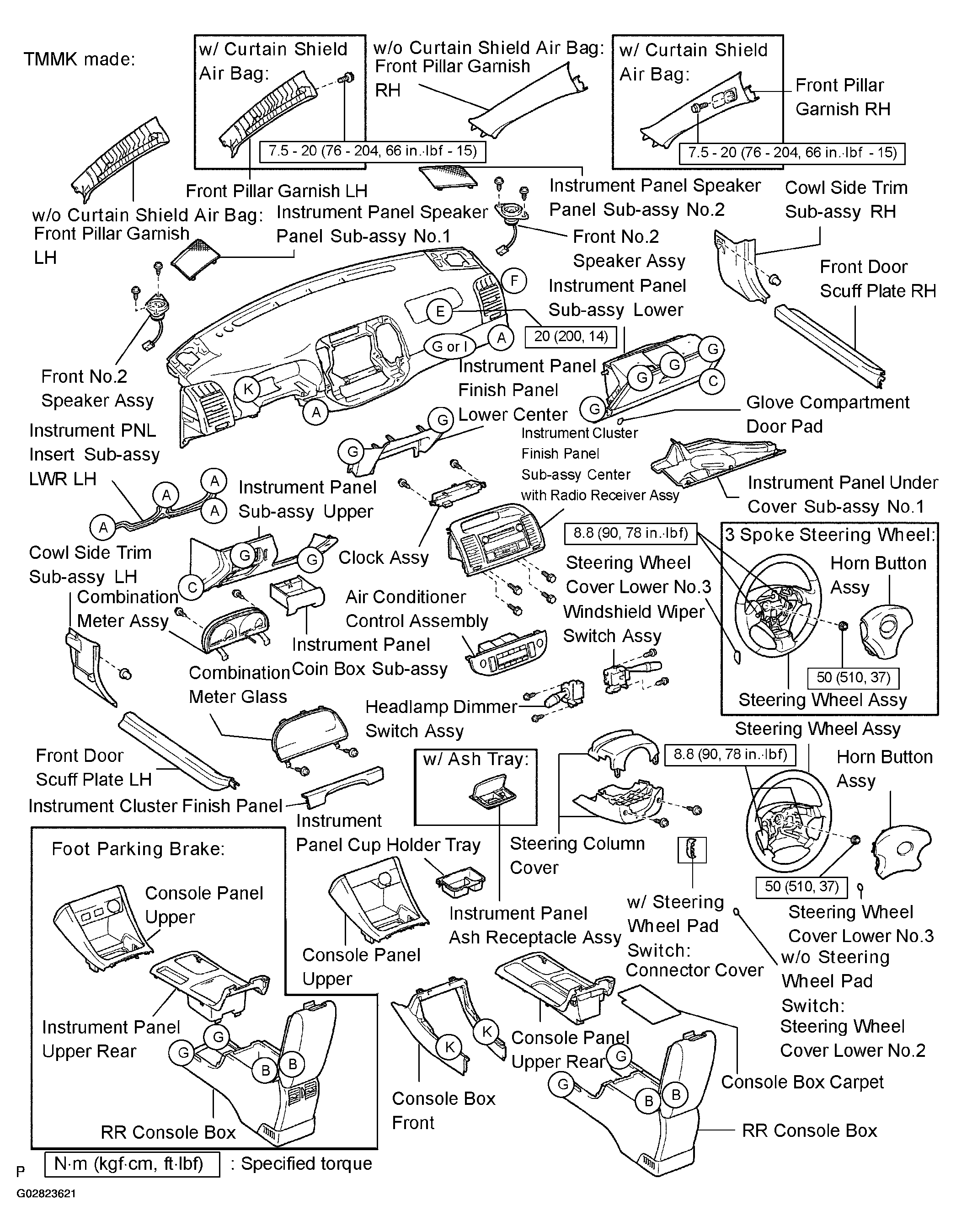

Fig 2: Identifying Instrument Panel/Meter Components - TMMK Made

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

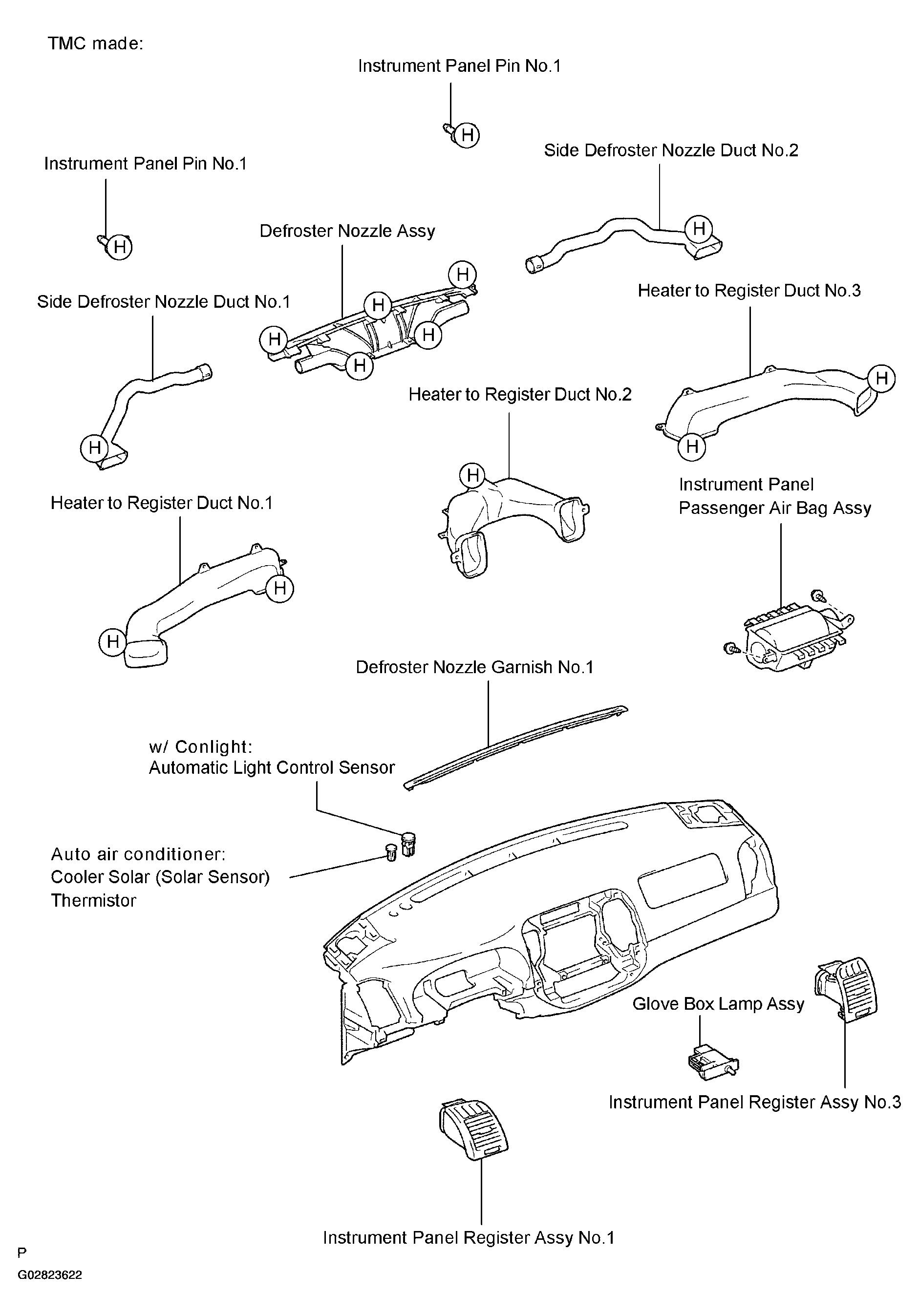

Fig 3: Identifying Instrument Panel/Meter Components - TMC Made

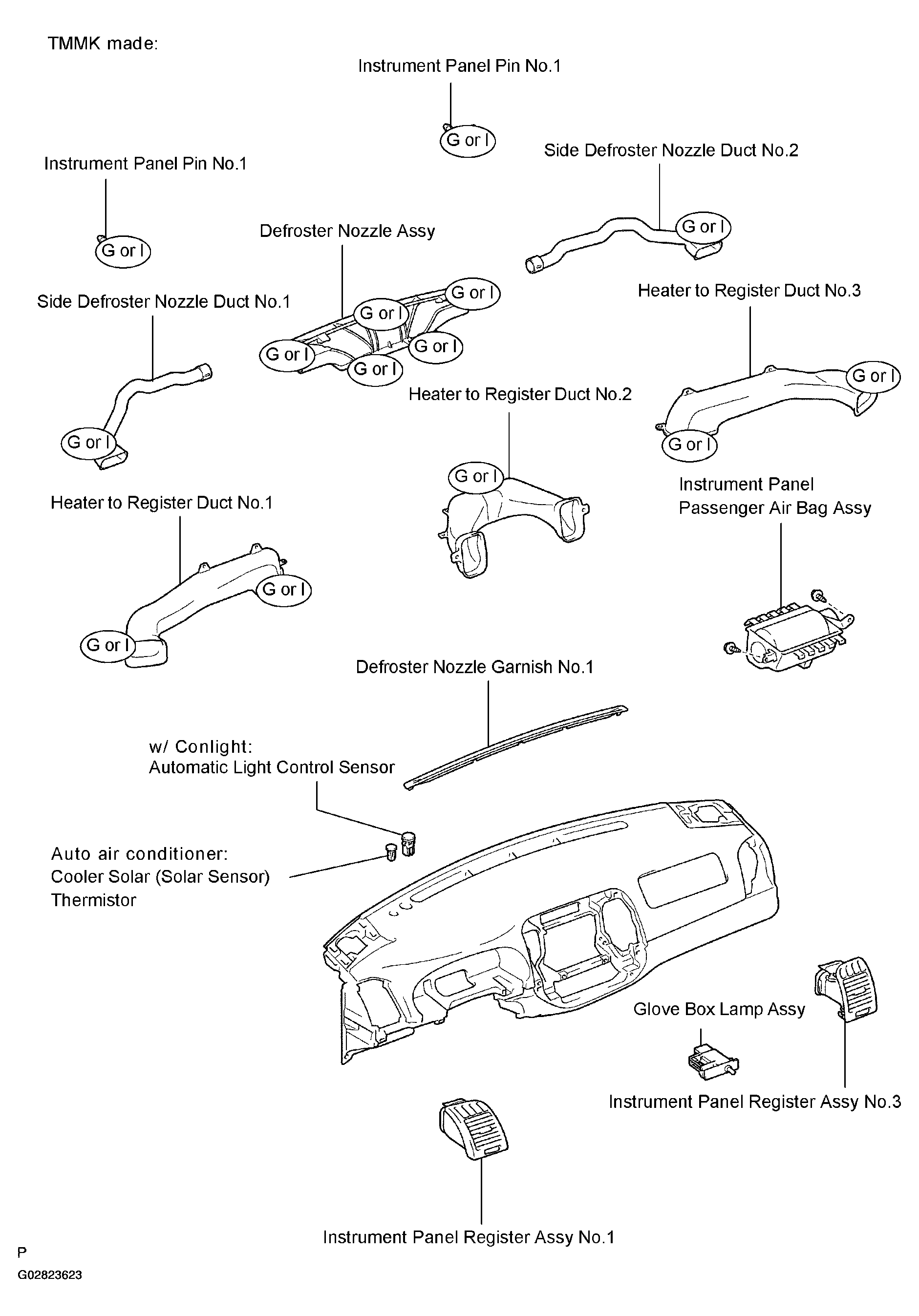

Fig 4: Identifying Instrument Panel/Meter Components - TMMK Made
