Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

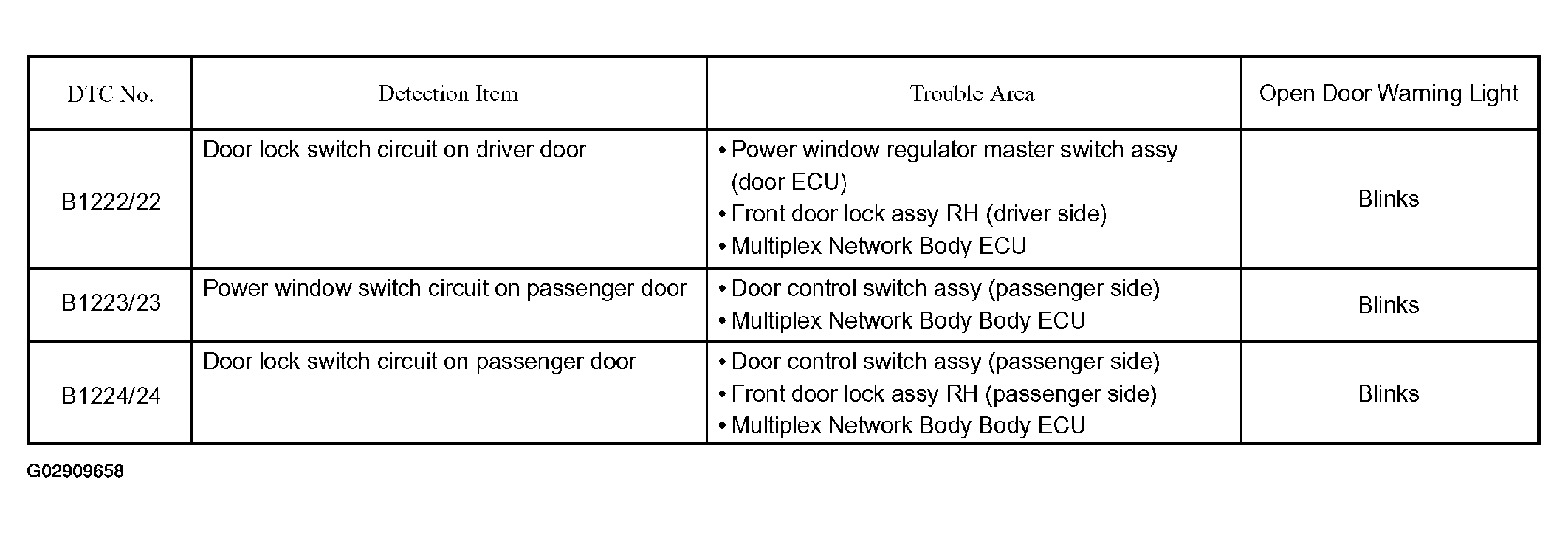

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below (Proceed to the page given for that circuit.).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
