Section 604 (Radio Receiver Assembly): Replacement

HINT:

• COMPONENTS: See COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
2. REMOVE INTEGRATION CONTROL & PANEL ASSY
   1. Remove the 6 bolts.
   2. Disconnect the connectors and remove the integration control & panel assy.

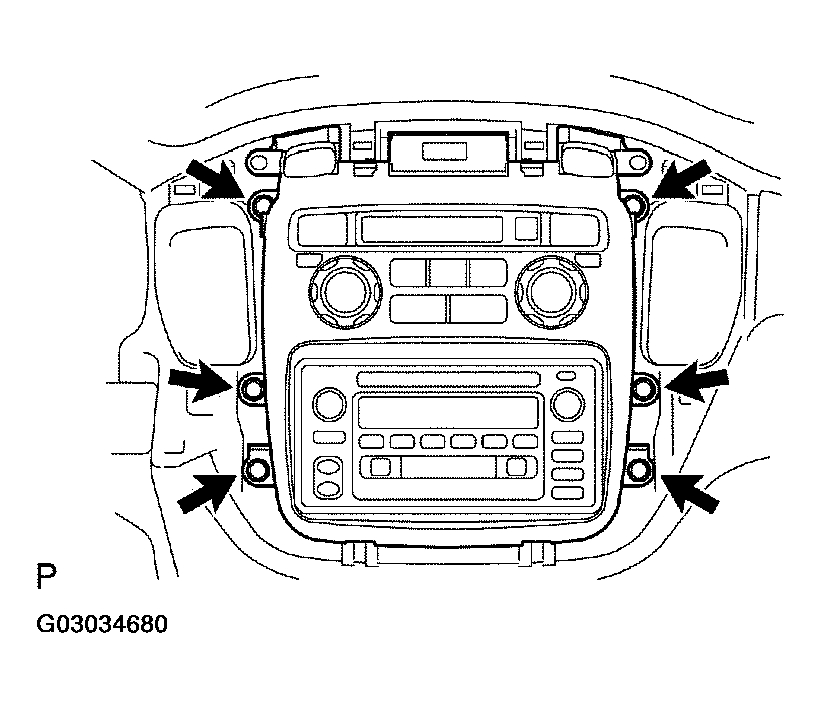

   Fig 1: Locating Integration Control And Panel Assy'S Removing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE RADIO BRACKET NO.1 (W/O EMV & NAVIGATION SYSTEM)
   1. Remove the 4 bolts, 2 screws and radio bracket No. 1.
   Fig 2: Locating Radio Bracket No.1 Removing Bolts And Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A (W/ EMV & NAVIGATION SYSTEM)
   1. Remove the 7 screws and multi-display controller bracket A.
   Fig 3: Locating Multi-Display Controller Bracket A Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE RADIO BRACKET NO.2 (W/O EMV & NAVIGATION SYSTEM)
   1. Remove the 4 bolts, 2 screws and radio bracket No. 2.
   Fig 4: Identifying Radio Bracket No. 2 Removing Bolts And Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B (W/ EMV & NAVIGATION SYSTEM)
   1. Remove the 7 screws and multi-display controller bracket B.
   Fig 5: Locating Multi-Display Controller Bracket B Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO RECEIVER ASSY
