On-Vehicle Inspection

CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY (1MZ-FE)
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 1.

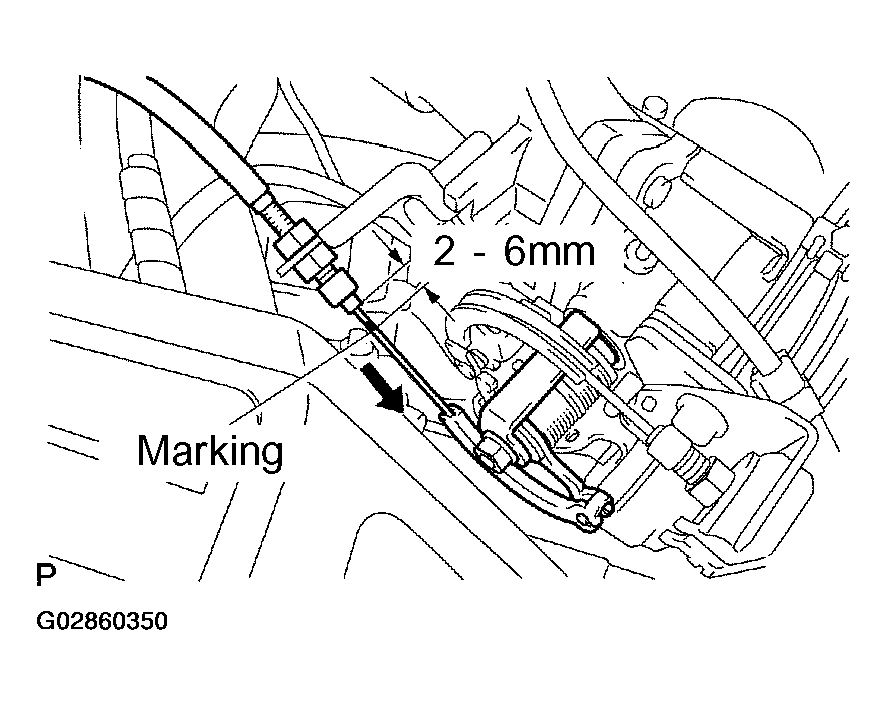

  Fig 1: Putting Mark On Cable (1MZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the wire and check the moved distance of the mark.

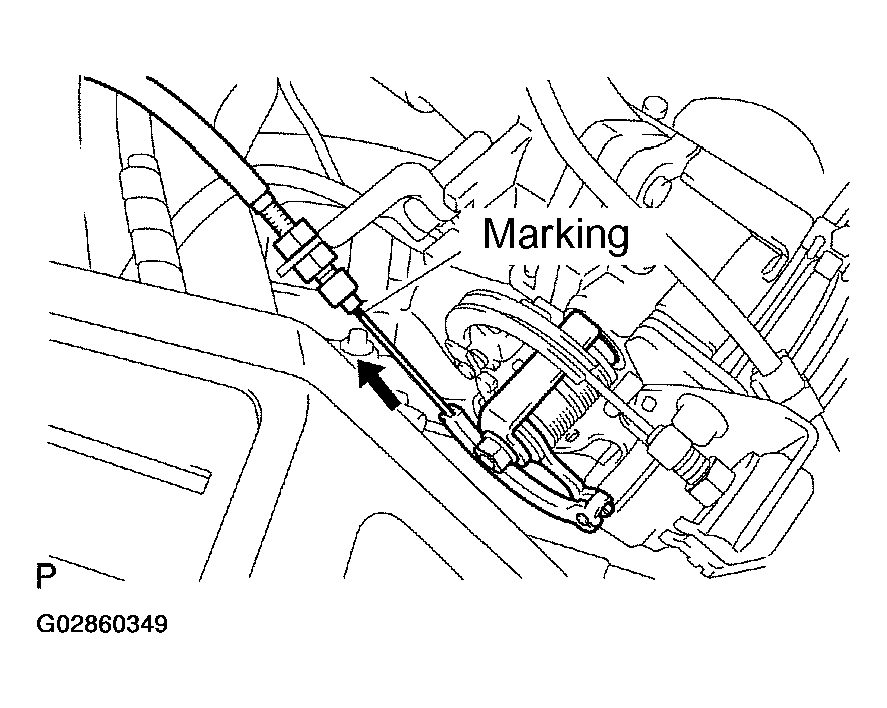

  Fig 2: Checking Movement Distance Of Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY (1MZ-FE)
1. Changing the double nut position shown by the arrows in Fig 3, adjust the play to the standard value.

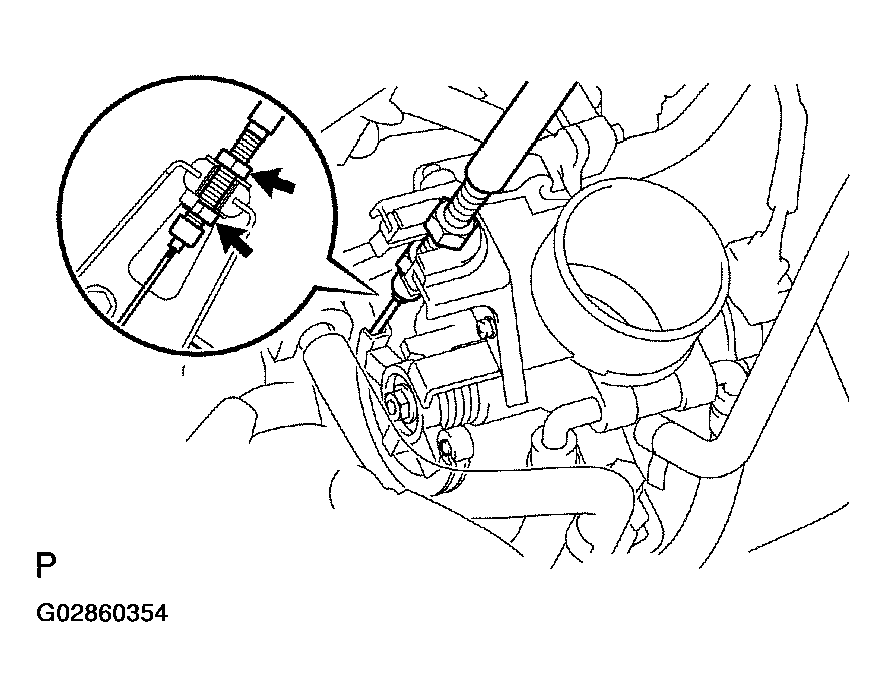

  Fig 3: Adjusting Play By Changing Double Nut Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard: 2 - 6 mm (0.079 - 0.236 in.)
CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY (2AZ-FE)
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 4.

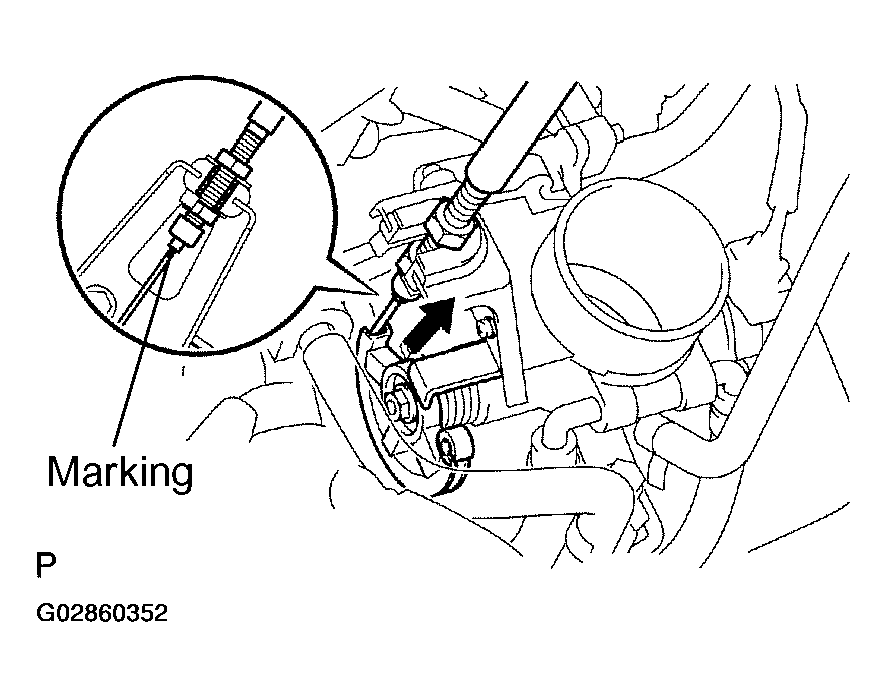

  Fig 4: Putting Mark On Cable (2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the wire and check the moved distance of the mark.

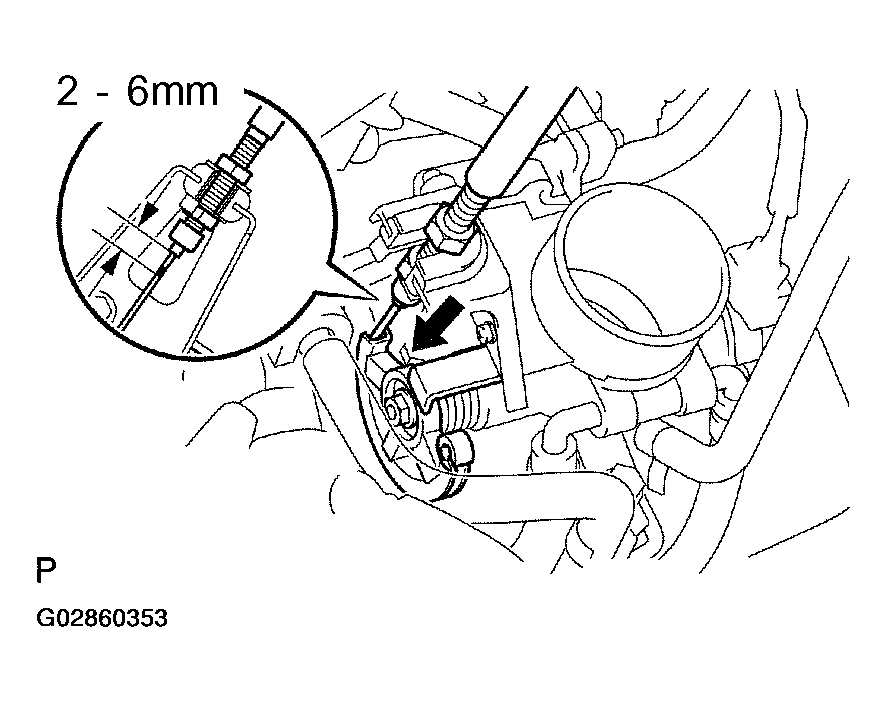

  Fig 5: Checking Movement Distance Of Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY (2AZ-FE)
1. Charging the double nut position shown by the arrows in Fig 6, adjust the play to the standard value.

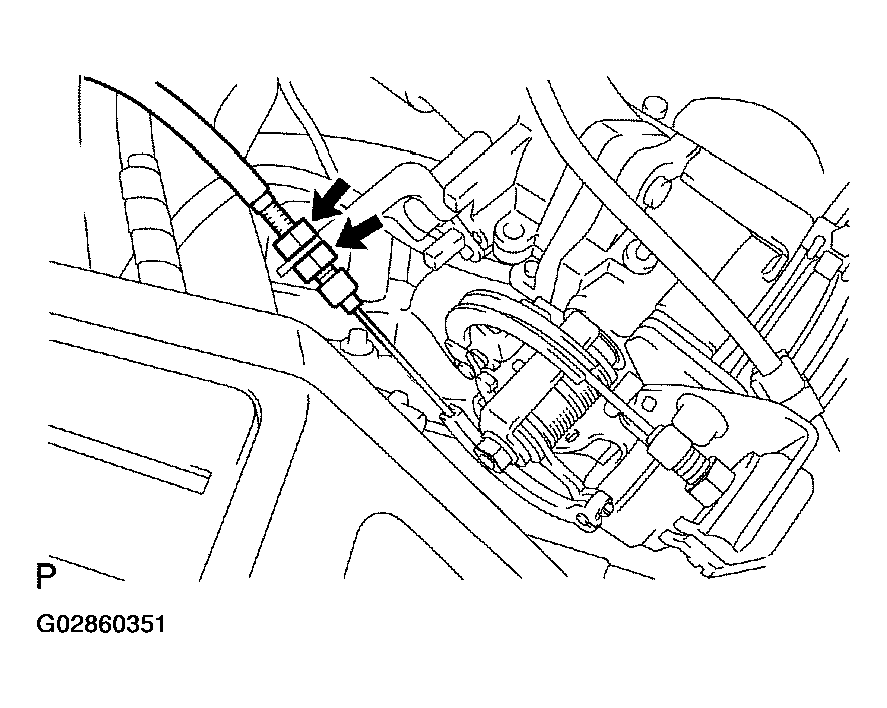

  Fig 6: Changing Double Nut Position For Adjusting Play
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard: 2 - 6 mm (0.079 - 0.236 in.)
ADJUST PLAY IN ACCELERATOR CONTROL CABLE ASSY (2AZ-FE)
1. Remove the cruise control actuator cover and adjust the play in the accelerator control cable assy by changing the double nut position.

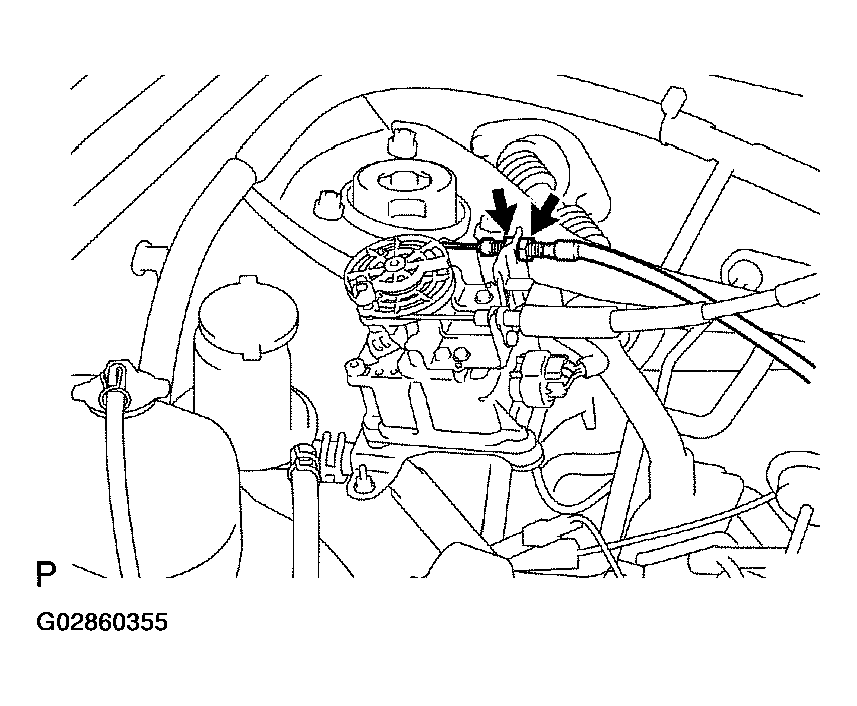

  Fig 7: Adjusting Play By Changing Double Nut Position
