Driver Door Control System - Diagnosis
›
Problem Symptoms Table
›
Power Window Control System:
Power Window Control System:

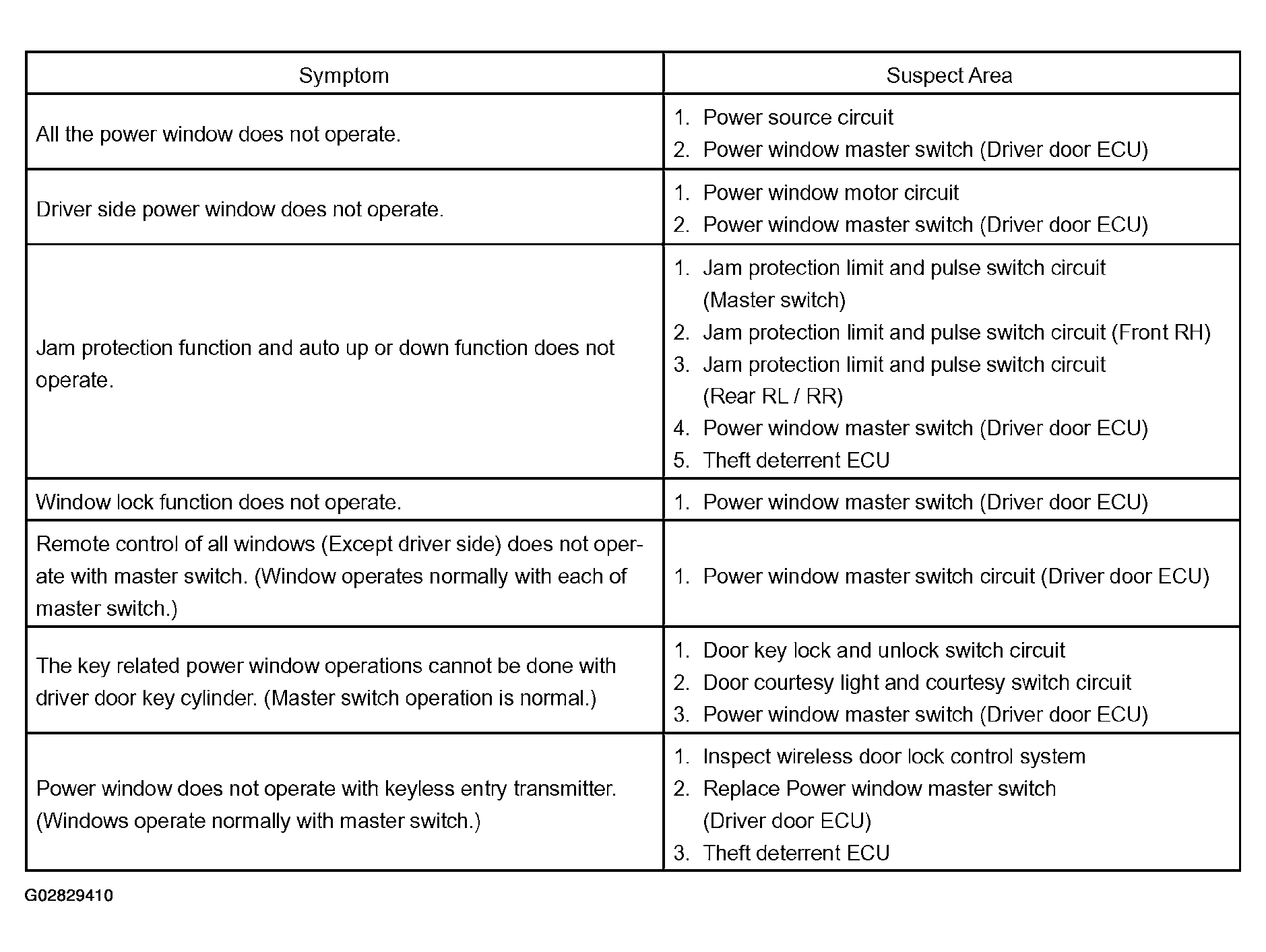

Fig 1: Power Window Control System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
