Oil Cooler: Components

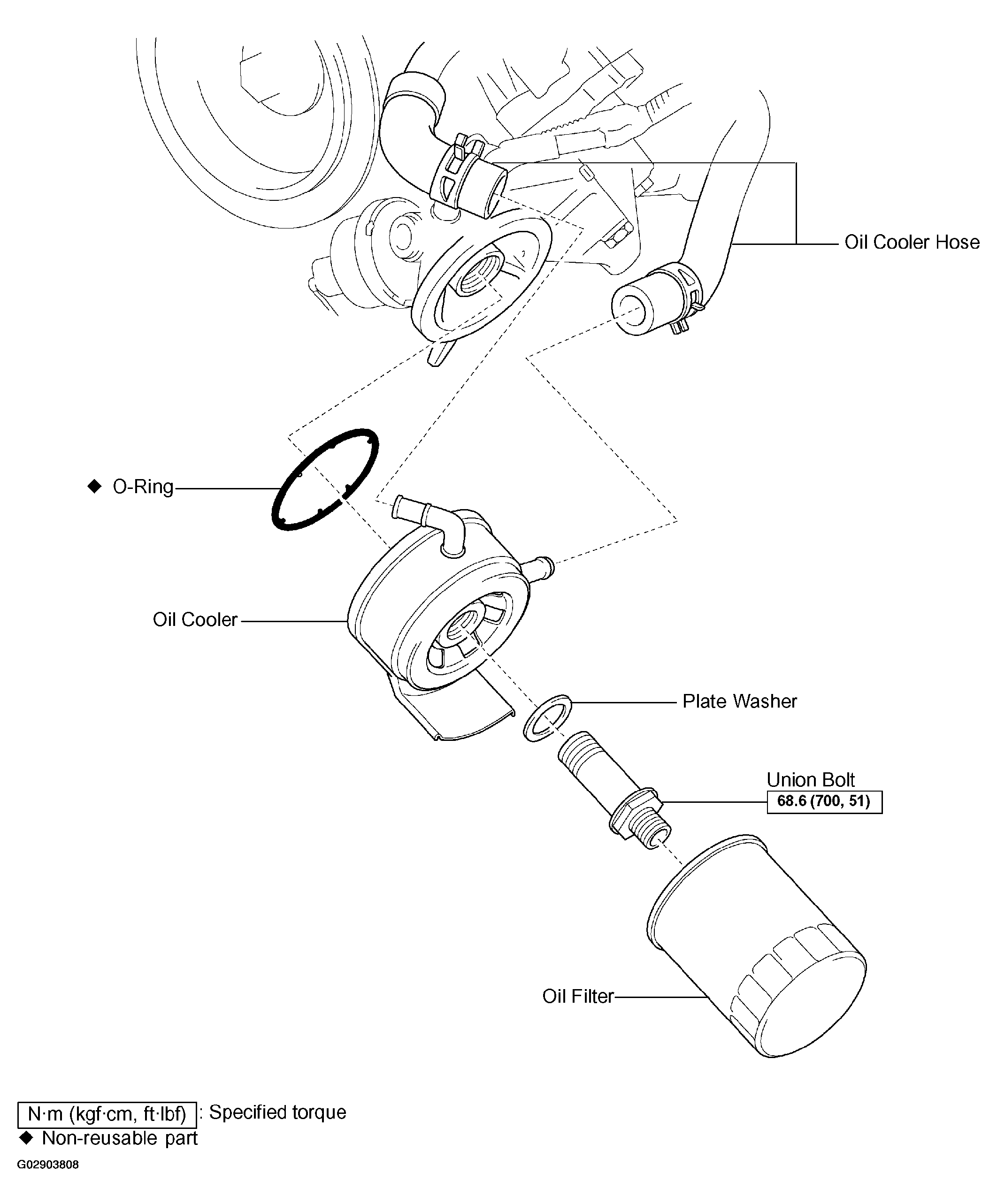

Fig 1: Exploded View Of Oil Cooler Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
