Engine Immobilizer System: Location

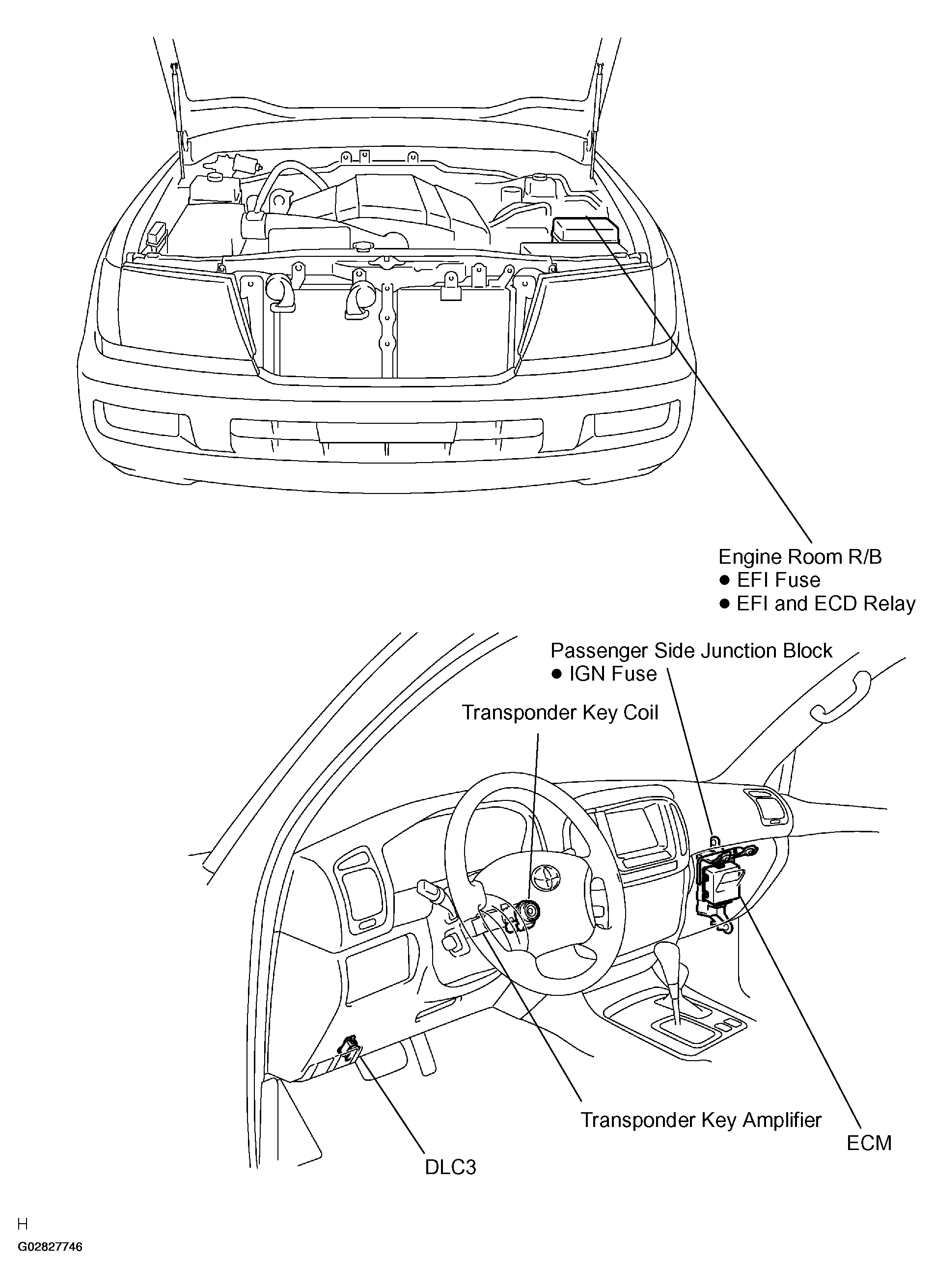

Fig 1: Identifying Engine Immobilizer System Component Location
G02827746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
