Front Seat: Disassembly

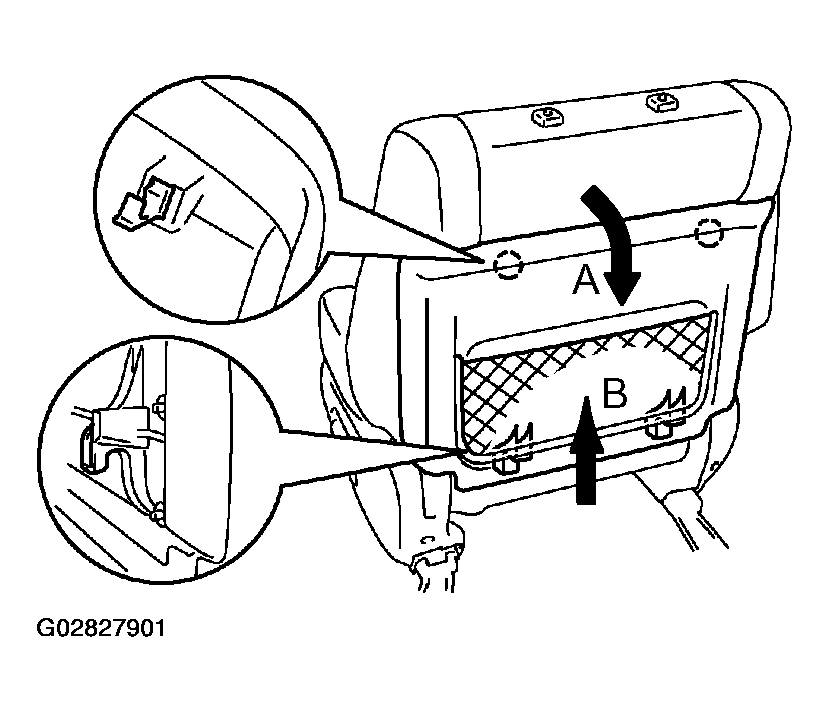

Remove the seatback board. See Fig 1.

HINT:  Remove the seatback board in the order of "A" and "B" as shown. See Fig 1.

Fig 1: Removing Seat Back Board

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the power seat switch knobs.

   HINT:  Tape up the screwdriver tip before use.

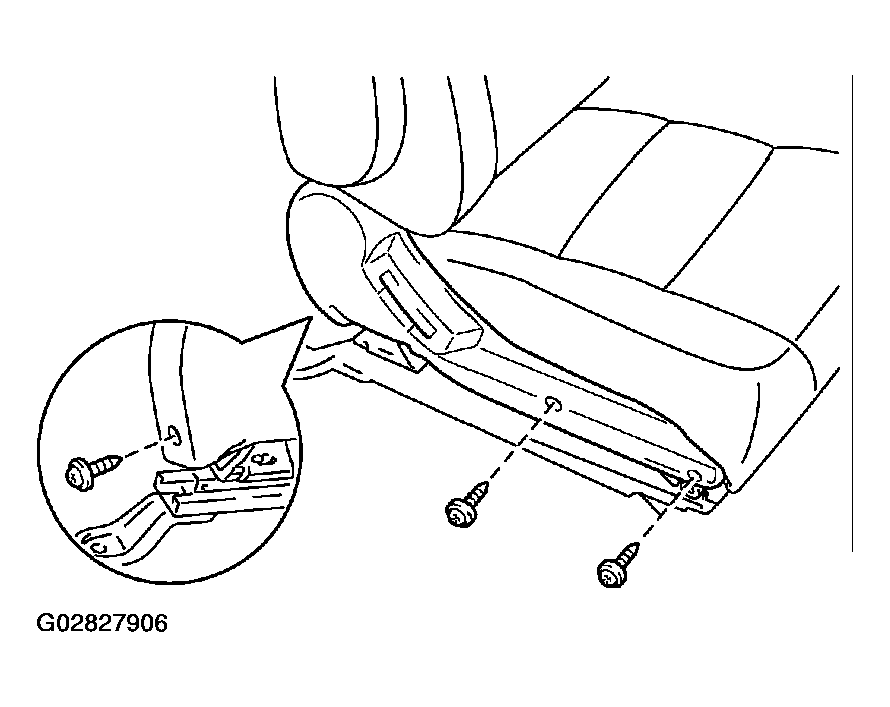

2. Remove the 4 screws.
   Fig 2: Removing Seat Cushion Outer Shield Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connectors. See Fig 3.
4. Remove the seat cushion outer shield.
   Fig 3: Disconnecting Seat Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 screws and the power seat switch from the seat cushion outer shield.
6. Remove the 2 screws and lumber support switch from the seat cushion outer shield.
   Fig 4: Locating Power Seat & Lumber Support Switches On Seat Cushion Outer Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clamp, then disconnect the connector.
2. Remove the bolt and the inner belt.
Fig 5: Removing Front Seat Inner Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 screws and the seat cushion inner shield.

Fig 6: Removing Seat Cushion Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw and the lower seat cushion shield as shown in the illustration.

Fig 7: Removing Lower Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw and the front seat cushion shield.

Fig 8: Removing Front Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

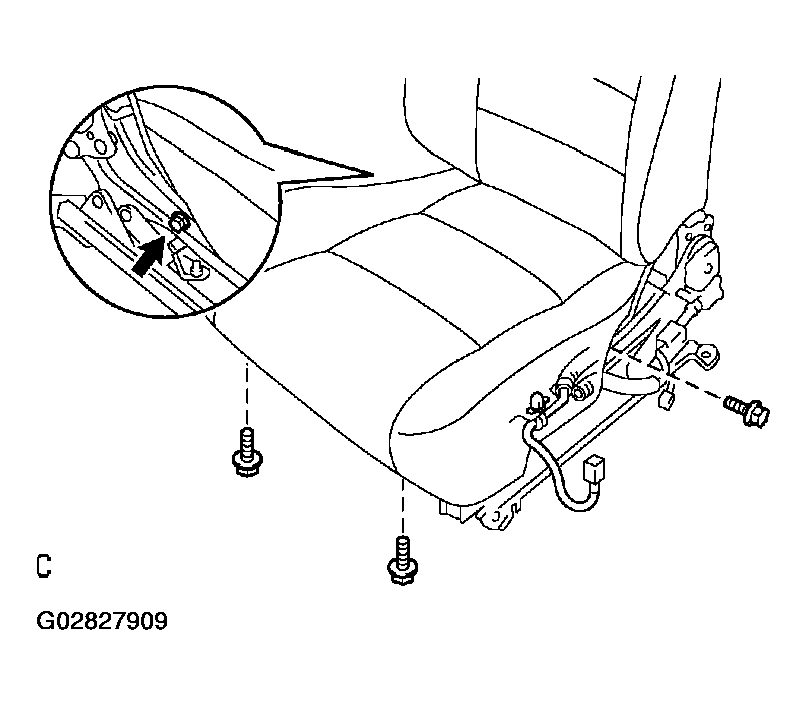

1. Remove the 4 bolts.
2. Remove the clamps from the seat cushion assembly.

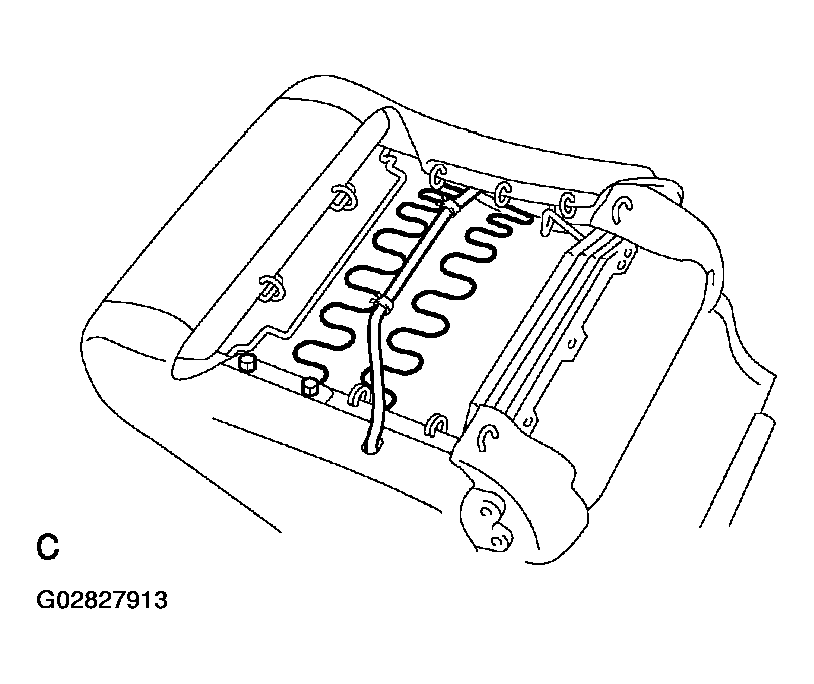

1. Disengage the hook.
2. Remove the hog rings and the seat cushion frame from the seat cushion cover with pad.

1. Remove the hog rings.

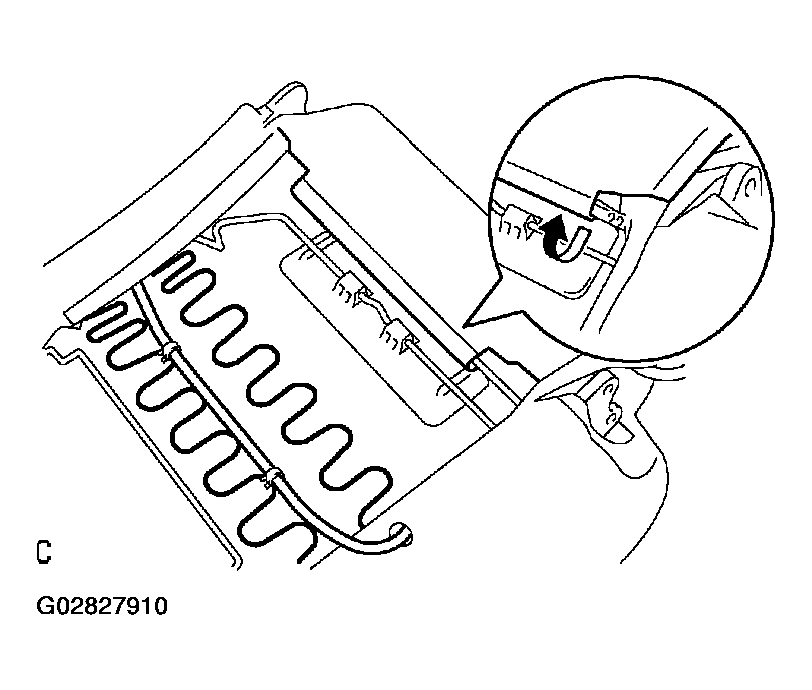

2. Disengage the hook as shown. See
3. Disconnect the connectors.
   Fig 10: Disengaging Seatback Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

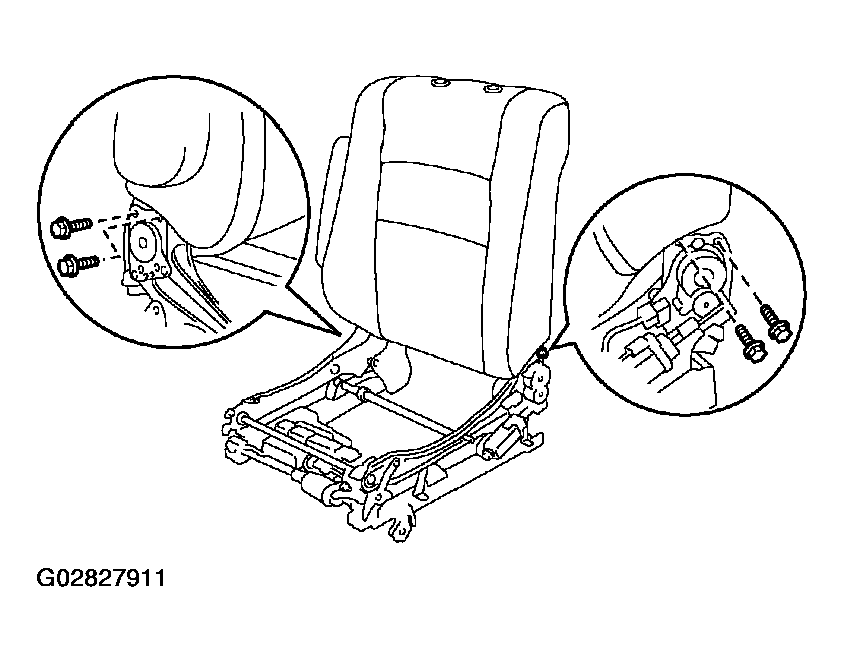

4. Remove the 4 bolts and the seatback assembly.
   Fig 11: Removing Seatback Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When handling the airbag connector take care not to damage the airbag wire harness.
5. Remove the screw and the RH reclining adjuster inside shield.
6. w/Side Airbag:

   Disconnect the side airbag connector.

   NOTE: When handling the airbag connector take care not to damage the airbag wire harness.
7. Remove the screw and the LH reclining adjuster inside shield.

REMOVE SEATBACK FRAME

1. Remove the hog rings.
2. Remove the 2 headrest supports.
3. Remove the seatback frame from the seatback cover with pad.

Fig 12: Removing Seatback Frame (W/O Side Airbag)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SEATBACK FRAME

1. Remove the hog rings, the clamps and the 2 bolts.
2. Remove the 2 headrest supports.
3. Remove the seatback frame from the seatback cover with pad.

Fig 13: Removing Seatback Frame (W/Side Airbag)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

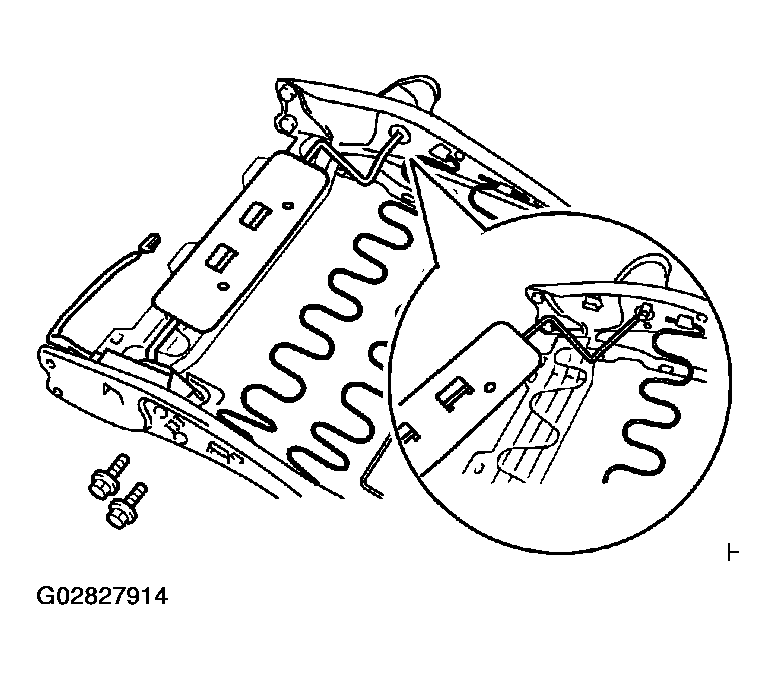

Remove the 2 bolts, the lumber support and the spacer.

Fig 14: Removing Lumber Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the hog rings and the seatback cover from the seatback pad.

Fig 15: Removing Seatback Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connectors.
2. Remove the 2 bolts and the seat position control relay.

REMOVE SEAT POSITION SENSOR

Remove the bolt and the seat position sensor then disconnect the connector.

Fig 16: Removing Driver's Side Seat Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
