Front Seat: Reassembly

INSTALL SEAT POSITION SENSOR

Install the seat position sensor with a new bolt, then connect the connector.

Part No.:  Bolt: 90119-06871

Torque:  8.0 N.m (82 kgf.cm, 71 in..lbf)

Fig 1: Installing Seat Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat position control relay with the 2 bolts, then connect the connectors.

Torque:  5.5 N.m (56 kgf.cm, 49 in..lbf)

Install the seatback cover to the seatback pad with new hog rings.

Fig 2: Installing Seat Back Cover To Seat Back Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

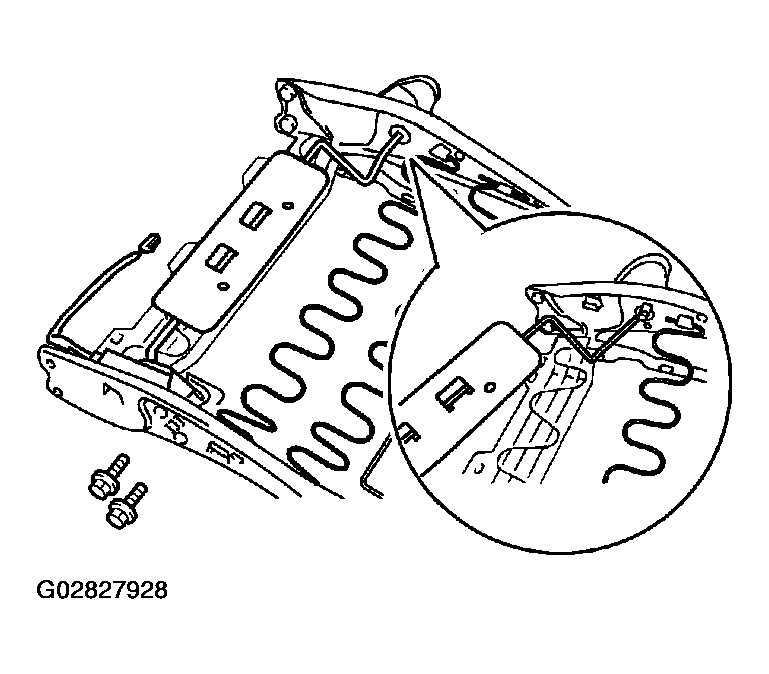

Install the lumber support and the spacer with the 2 bolts.

Fig 3: Installing Lumber Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings.
3. Install the 2 headrest supports.

Fig 4: Installing Seat Back Frame (W/O Side Airbag)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings, the clamps and the 2 bolts.

   Torque:  4.7 N.m (48 kgf.cm, 42 in..lbf)

3. Install the 2 headrest supports.

Fig 5: Installing Seat Back Frame (W/Side Airbag)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Side Airbag:

   Install the RH reclining adjuster inside shield with a screw.

   Fig 6: Installing Reclining Adjuster Inside Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/Side Airbag:

   Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with a screw so that the connector is placed in between.

   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
3. Install the LH reclining adjuster inside shield with a screw.

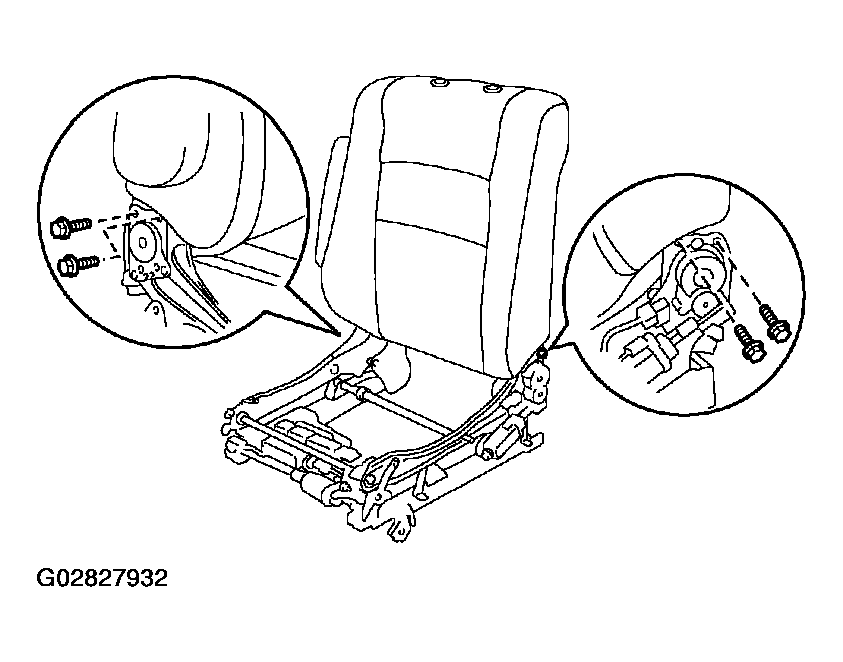

4. Install the seatback assembly with the 4 bolts.

   Torque:  43 N.m (440 kgf.cm, 32 ft.lbf)

   Fig 7: Installing Seat Back Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

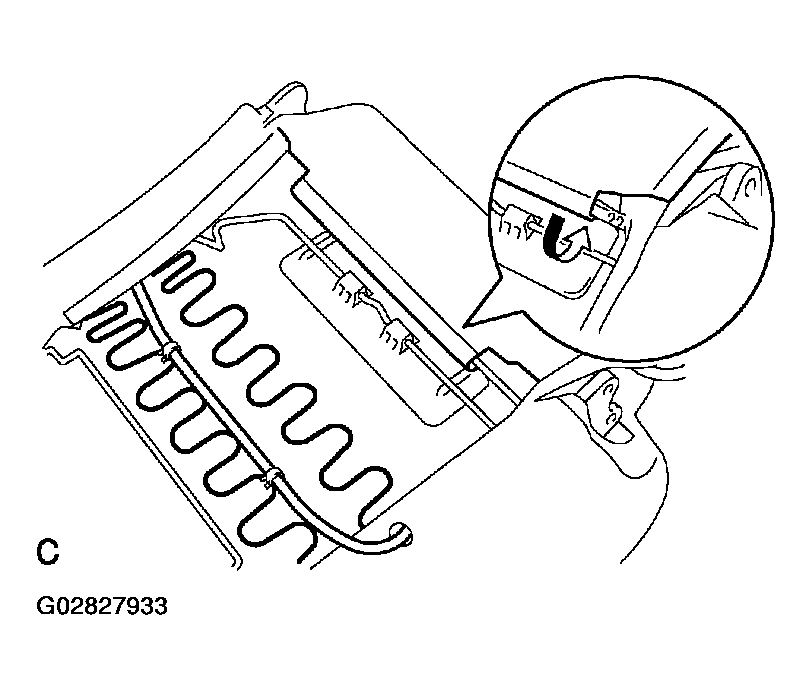

5. Install new hog rings.
6. Hang the hook.
7. Connect the connectors.

Fig 8: Installing Seat Cushion Hook

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque:  37 N.m (380 kgf.cm, 27 ft.lbf)

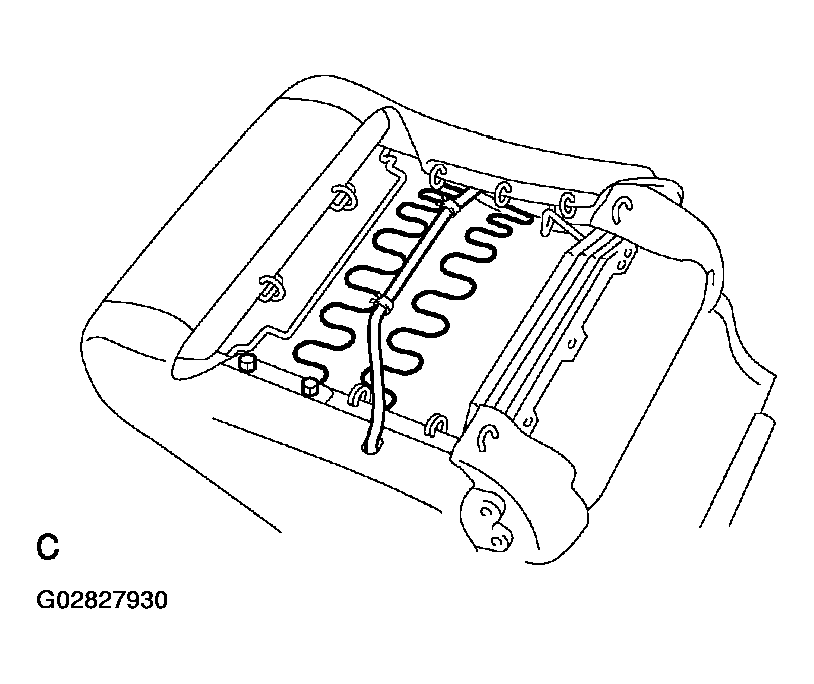

1. Install the seat cushion frame with new hog rings to the seat cushion cover with pad.
2. Hang the hook.

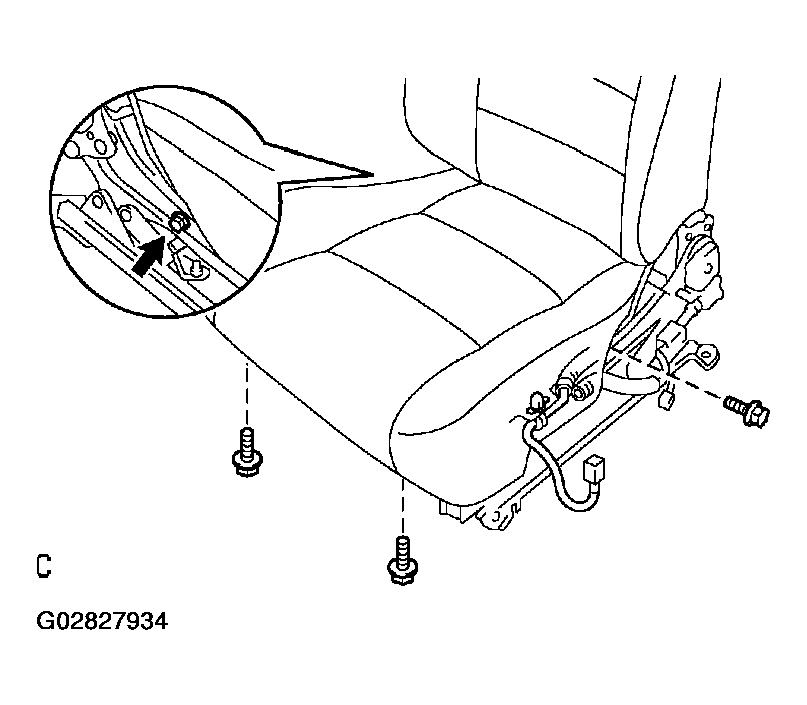

1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.

   Torque:  21 N.m (210 kgf.cm, 15 ft.lbf)

2. Engage the wire harness clamp.
Fig 9: Installing Seat Cushion Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 10: Installing Front Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 11: Installing Lower Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion inner shield with the 3 screws.

Fig 12: Installing Seat Cushion Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the clamp, then connect the connector.
2. Install the inner belt with the bolt.

   Torque:  42 N.m (430 kgf.cm, 31 ft.lbf)

Fig 13: Installing Front Seat Inner Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the power seat switch with the 3 screws.
2. Install the lumber support switch with the 2 screws.
   Fig 14: Installing Seat Cushion Outer Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors as shown. See Fig 14.
4. Install the seat cushion outer shield with the 4 screws.
5. Install the power seat switch knobs.
