Rear Door: Adjustment

1. Remove the front door scuff plate.
2. Remove the rear door scuff plate.
3. Remove the front door opening trim.
4. Remove the rear door opening trim.
5. Remove the center pillar lower garnish.
6. Loosen the body side hinge nuts to adjust.
   1. Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
7. Install the removed parts.

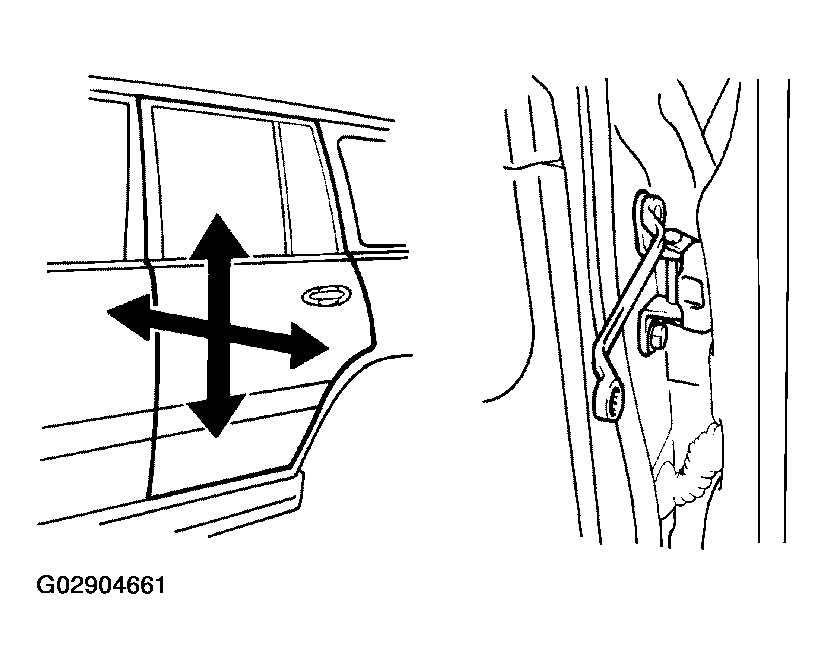

Fig 1: Adjusting Door In Right/Left & Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the door side hinge bolts to adjust.

1. Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

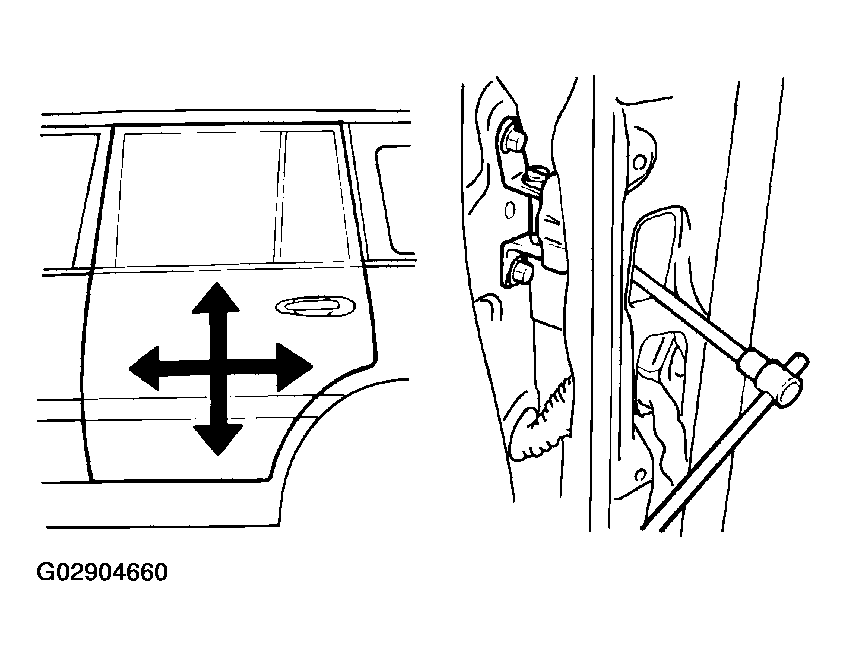

Fig 2: Adjusting Door In Right/Left Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the door fit and door lock linkages are adjusted correctly.
2. Loosen the striker mounting screws to adjust.
   1. Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
3. Using a plastic hammer, tap the striker to adjust it.

Fig 3: Adjusting Door Lock Striker

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
