Combination Meter Location: Circuit

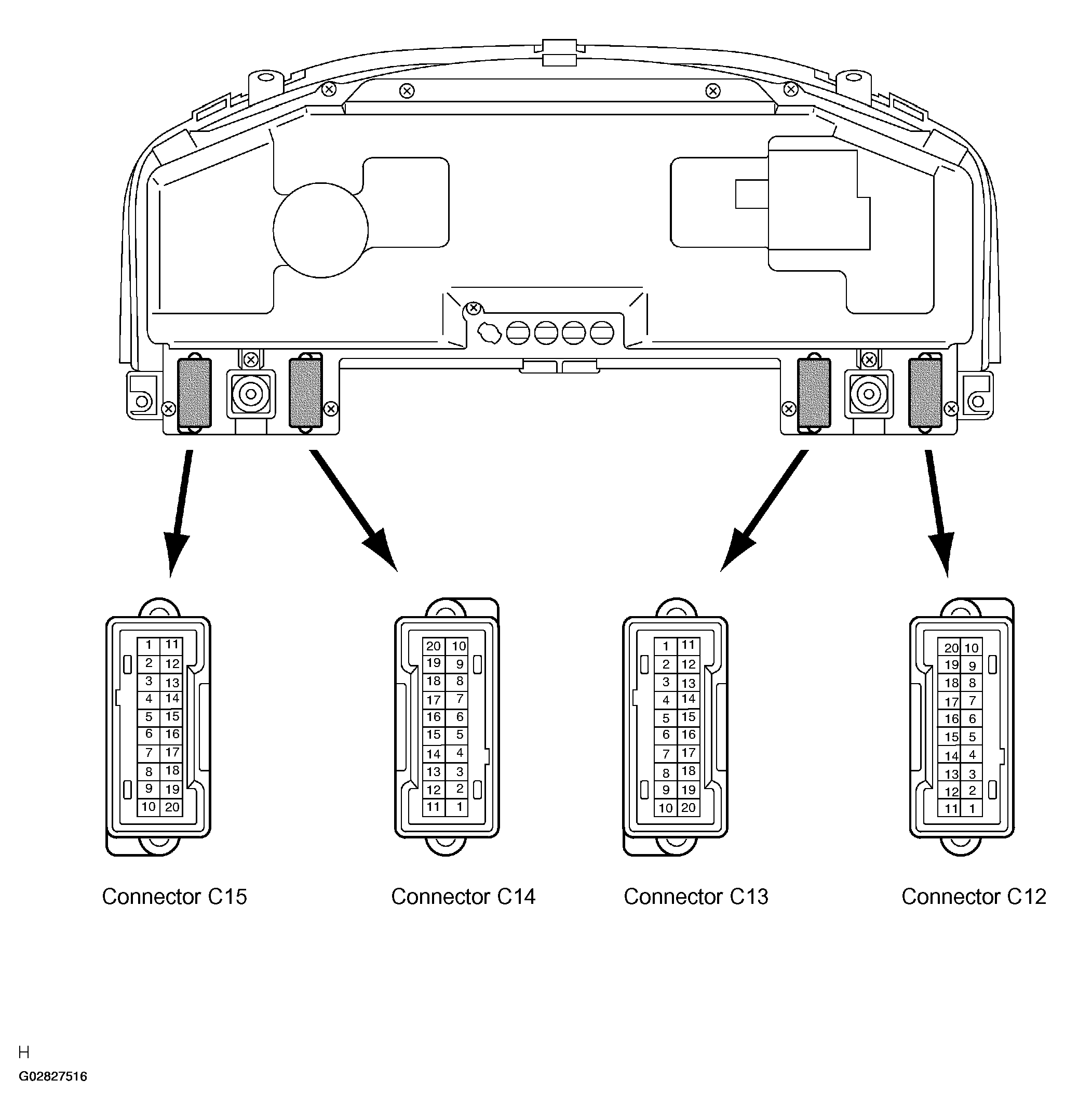

Fig 1: Identifying Combination Meter Terminal Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

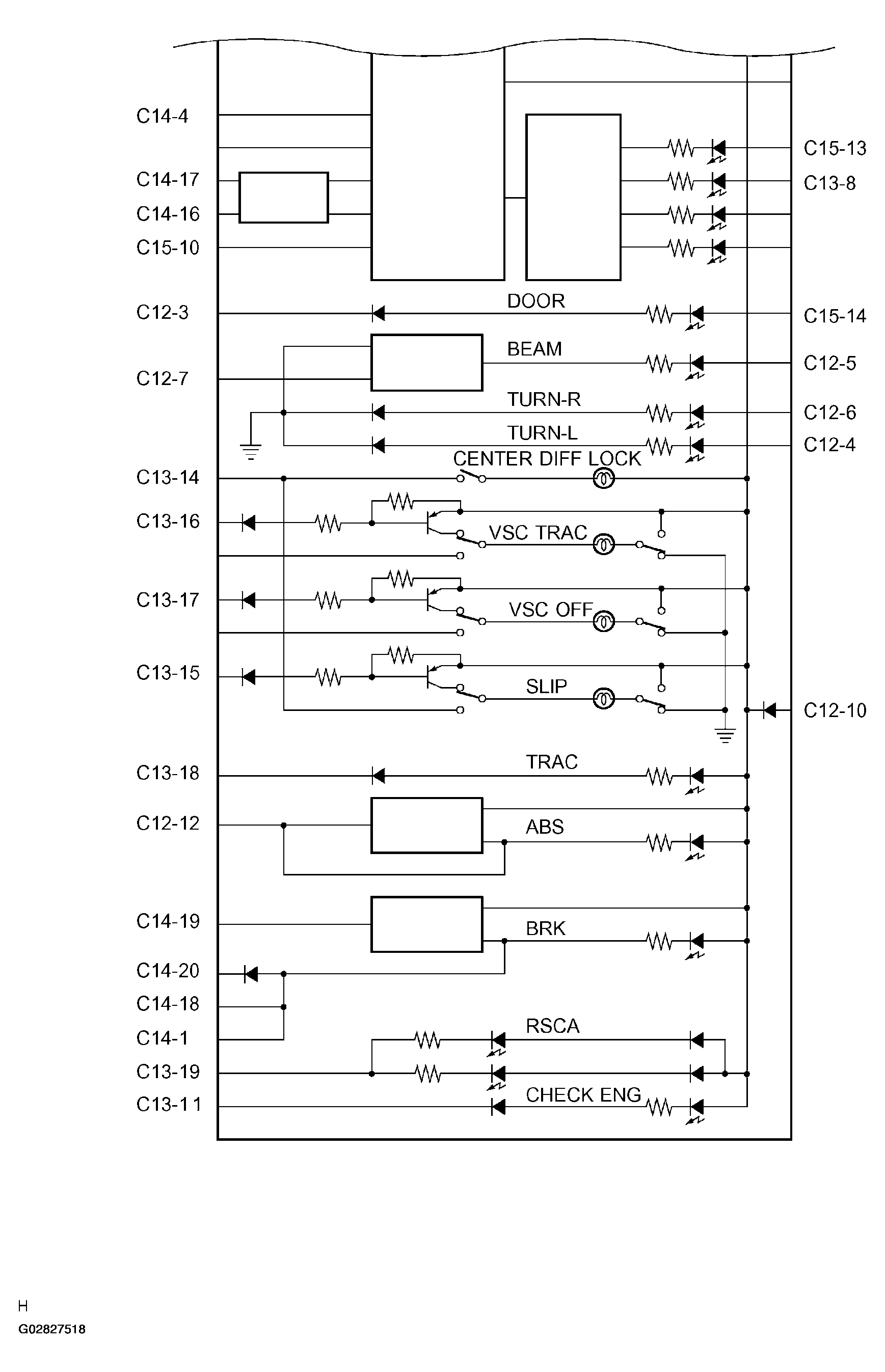

Fig 2: Combination Meter Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

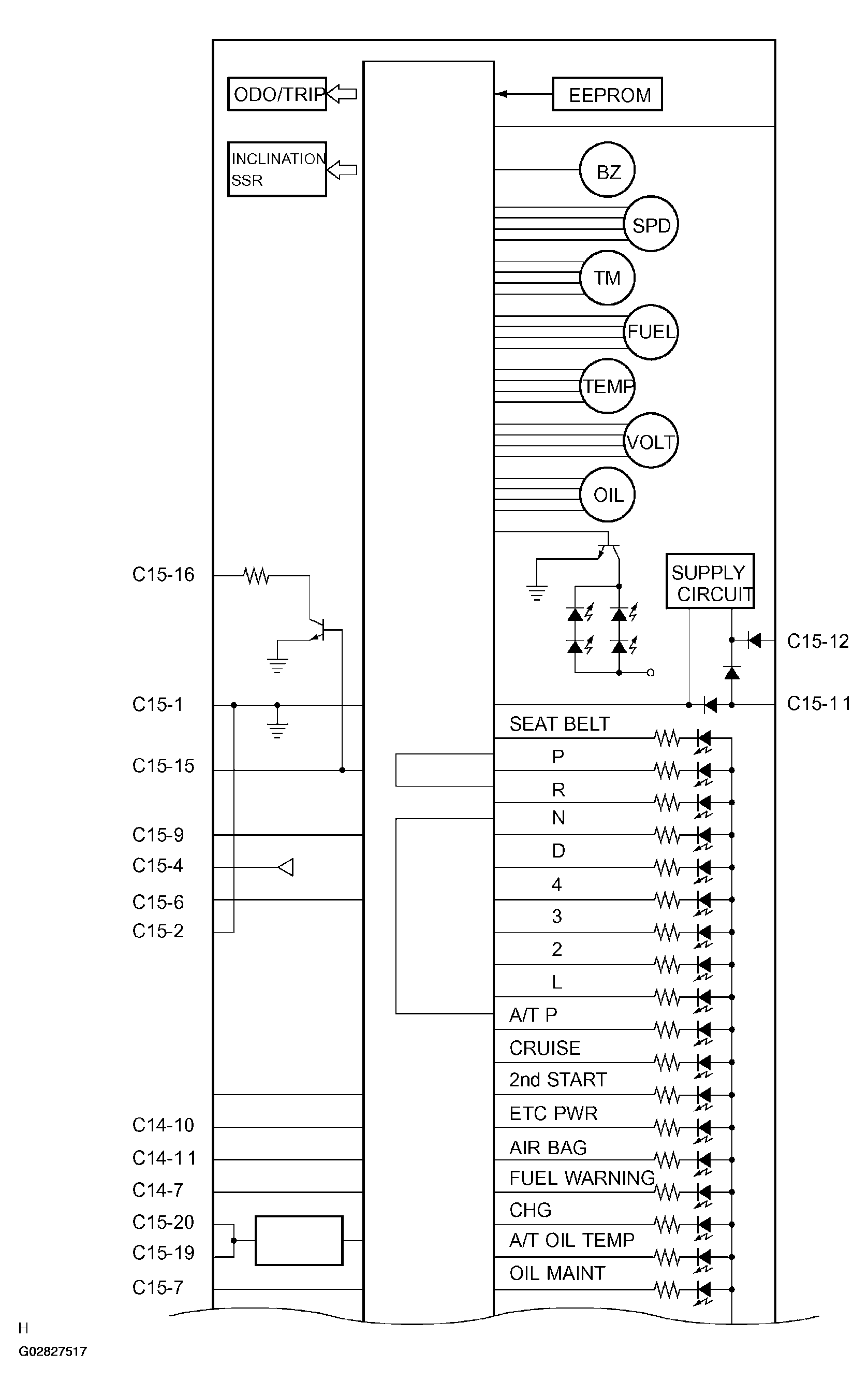

Fig 3: Combination Meter Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

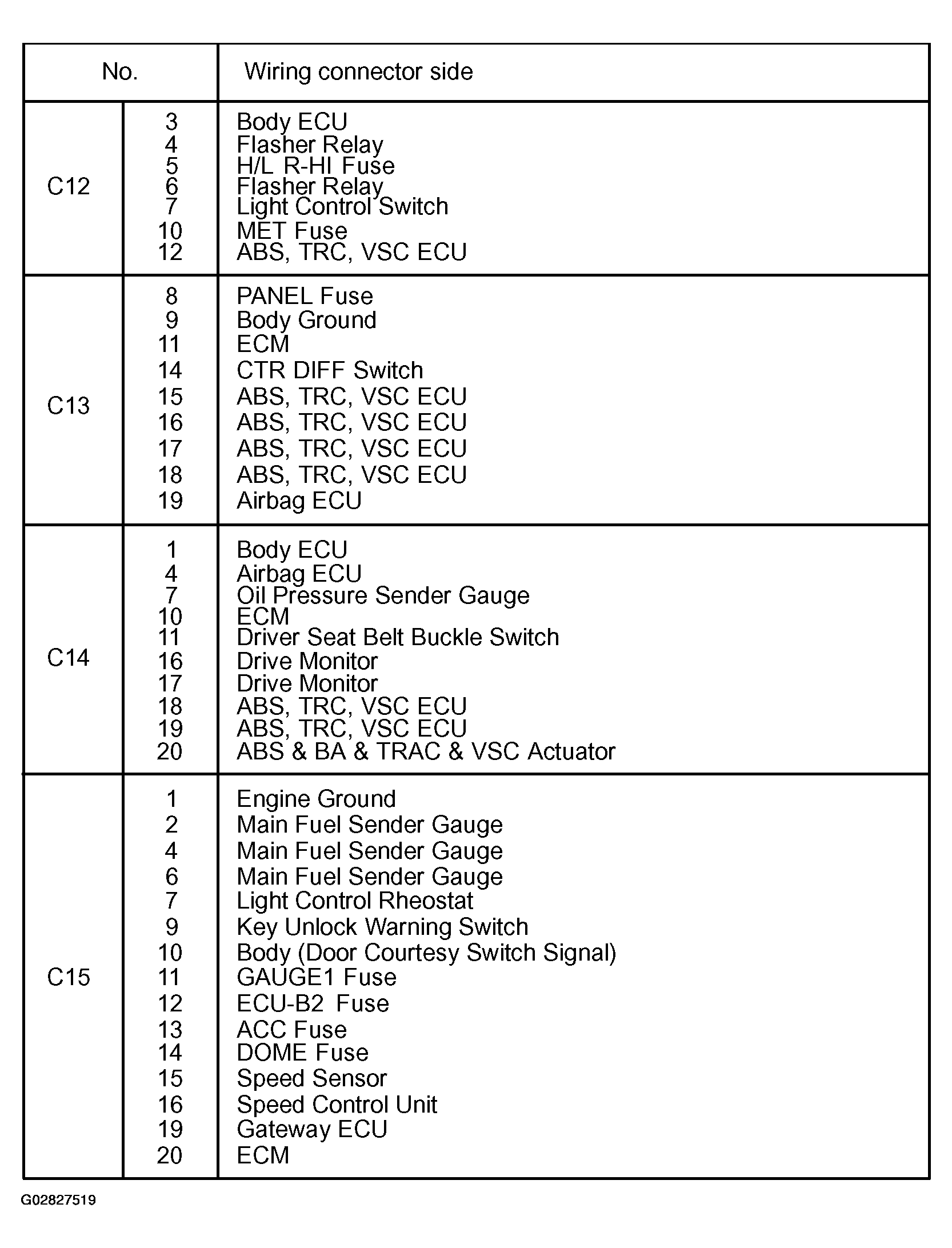

Fig 4: Wiring Connector Side Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
